3 Fitting the Prepare Kit
3.4 GCU cabling
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
64
Fig.16: Switching unit connections (see also 4.2.1 "Distribution and Fusing Assembly [03118286-xx]" [
}
76])
Fig.17: Pre-/discharge assembly [03108631-xx] (CSB)
► Connect the ground cable from the main cable
[03068133-xx] to the ground terminal in the
switching unit.
► Fix the cable tree to the power supply strain
relief, using two cable ties.
► Place the cable tree excess on the left, next to
the transformer in the machine base.
► The ground cable [03055212-xx] (1m length) is
connected directly to the GCU support and to the
ground surface in the machine.
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
3 Fitting the Prepare Kit
3.5 Fitting the Trailing Cable
65
3.5 Fitting the Trailing Cable
Parts, equipment and tools
●
1x GR Y trailing cable vacuum complete [03075584-xx]
●
C-parts Y-Trailing Cable vacuum [03075588-xx]
– 4x QS-10 connector [03075789-xx]
– 4x QSC-10H plug [00324874-xx]
– 4x standoff (spacer bolt) M4x10 [03023606-xx]
●
1x plastic case [03081445-xx]
– 1x heat-shrinkable hose [00326917-xx]
– 1x trailing cable bracket for gantry 2 complete [03076756-xx]
●
Loctite 241 [02101037‑xx]
Installation
► Connect the four QS-10 connectors to the end of the trailing cable, which will later be connec-
ted to the gantry. Seal the connectors with the four QSC-10 plugs.
► Pull the heat-shrinkable hose over the trailing cable to prevent damage during assembly.
► Carefully place the trailing cable into the machine.
► Check the Y connectors, which should be attached to pneumatic hoses 1 and 4.
► Connect the blue pneumatic hose from the machine to the other side of the Y connection.
► Check the pneumatic hoses 2 and 3 to make sure that these have each been fitted with a con-
nector and plug.

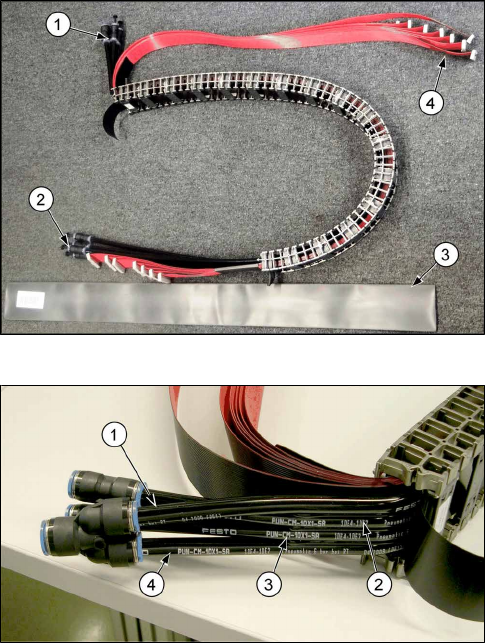

Fig.18: Trailing cable
Preparing the trailing cable
1. Compressed air connection present
2. Fit the connectors and plugs.
3. Pull the heat-shrinkable hose over the trailing
cable.
4. Connections for trailing cable interface and hot-
link adapter.
Fig.19: Pneumatic hoses in the trailing cable
Labeling for compressed air line in the trailing cable
●
Make sure that the pneumatic hoses are labeled
as marked in the image!
3 Fitting the Prepare Kit
3.5 Fitting the Trailing Cable
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
66

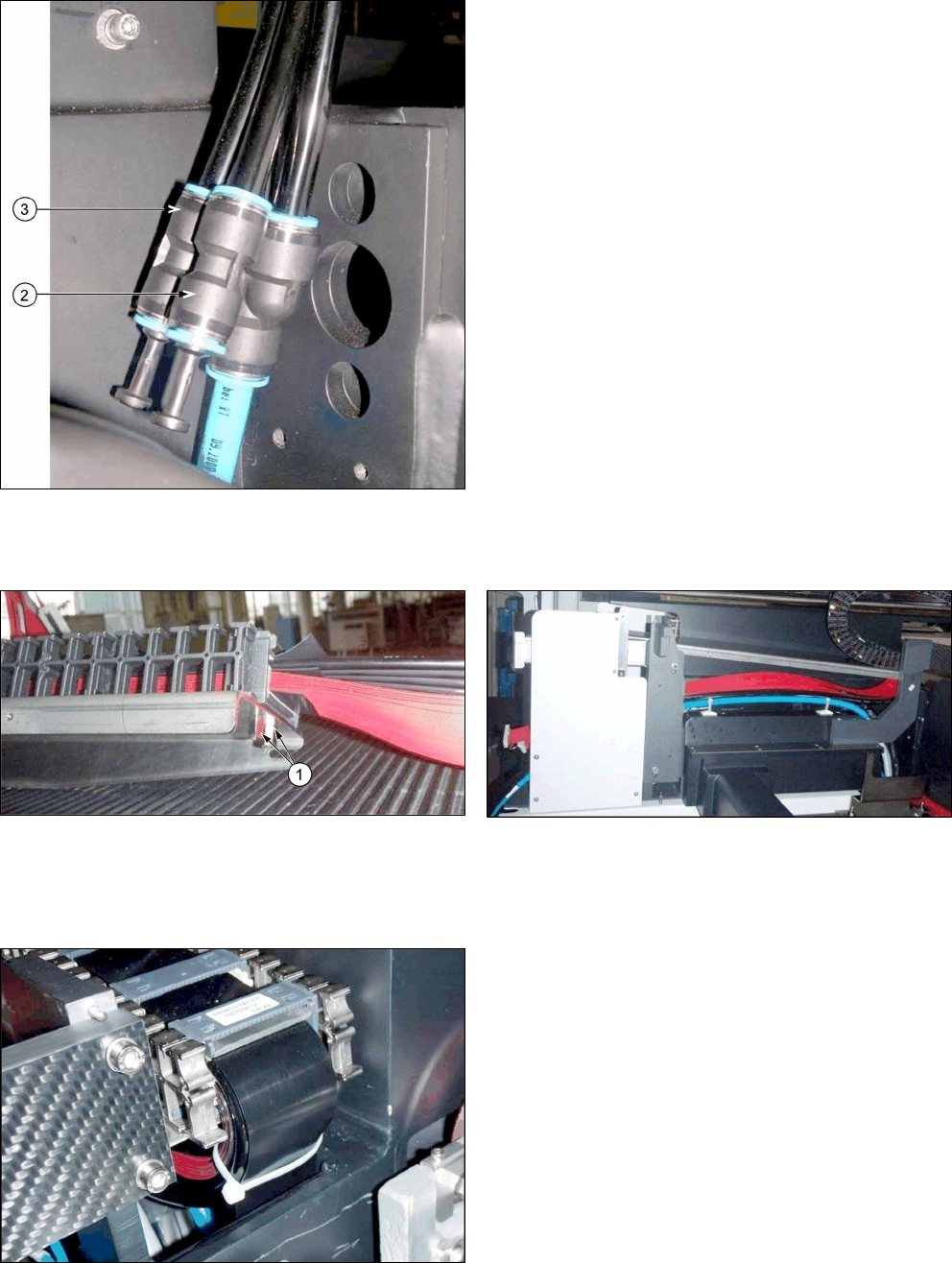

Fig.20: Pneumatic hoses
Connection for compressed air line in the machine
► Fix the two spacer bolts M4x10 to the trailing cable cover with the trailing cable and then
secure them with Loctite 241.
Fig.21: Fixture for trailing cable
Fig.22: Running the trailing cable
► Run the flat ribbon cables around the trailing cable cover and thread them through to the trail-
ing cable interface.
► Fit the trailing cable cover to the machine base.
Fig.23: Fixing the protective tape onto the trailing cable
► Fix the protective tape onto the trailing cable with
a cable tie.
