Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Prepare Kit 04/2017 3 Fitting the Prepare Kit 3.4 GCU cabling 61 3.4 GCU cabling Parts, equipment and tools ● Cable set for gantry 2 [03052290-xx] – 1x cable Y1 mo…
3 Fitting the Prepare Kit
3.3 Preparing and Fitting the GCU
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
60

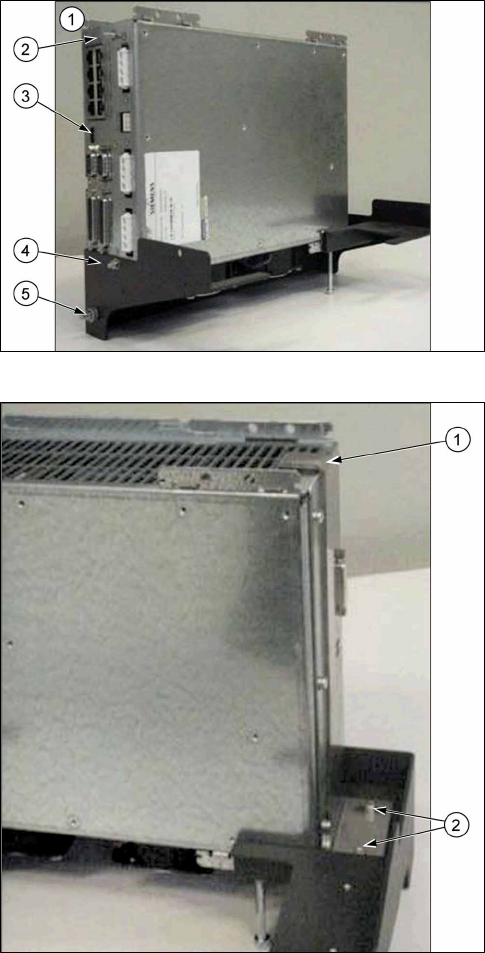

Fig.10: GCU on carrier
1. GCU front side
2. Ground connection for GCU
3. Jumper
4. Fixture for GCU threaded pin
5. Ground connection GCU carrier
Fig.11: Bracket
1. Bracket, hooked up to top of GCU
2. Bracket bottom fixture
► Place the GCU in its carrier. Make sure you position it correctly.
► The threaded pin on the front of the GCU is inserted through the pre-drilled hole on the carrier
and fixed into place with the serrated lock washer and the hexagonal nut (M4).
► The bracket is hooked up to the back of the GCU (at the top) and fixed into place at the bot-
tom of the support, using two washers and two socket-head screws (M4x8 mm).
► Fit the carrier and GCU on the left, above the Y magnets, using three washers and the three
socket-head screws M4x8 mm. (assembly position, see also location 1 GCU1/2)
► Fit the threaded pin for the GCU ground with a contact disc, a serrated lock washer and the
hexagonal nut M4. The ground wire from the cable [03068133-xx] will be connected to this
later on.
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
3 Fitting the Prepare Kit
3.4 GCU cabling
61
3.4 GCU cabling
Parts, equipment and tools
●
Cable set for gantry 2 [03052290-xx]
– 1x cable Y1 motor gantry 2 [03055221-xx]
– 1x cable Y2 motor gantry 2 [03055223-xx]
– 1x cable sensor bus Y motor gantry 2 [03055226-xx]
– 1x cable RT-HCU bus gantry 2 [03055225-xx]
– 1x cable main axis voltage GCU 3 [03068133-xx]
– 1x cable auxiliary voltages GCU 3 [03068134-xx]
– 1x cable trailing cable interface 2 [03068135]
– 1x ground cable 1m length [03055212-xx] GCU carrier to ground surface
– 2x ground cable 1m length [03055213-xx] (see preparation for trailing cable interface)
3 Fitting the Prepare Kit
3.4 GCU cabling
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
62
Installation
► Connect the existing cables in the machine to the trailing cable interface and GCU.
► Begin with the CAN bus cables and pay attention to the labeling!
Pos. Item No. Cable designation Connector designation
1 03055207- xx Black CAT5 cable GCU X74Uuc
2 03055208- xx Gray CAT5 cable GCU X72Uuc
3 03052208- xx CAN bus cable GCU X1Ouc
3 03055200- xx CAN bus cable GCU X1Uuc
5 03052208- xx CAN bus cable Trailing cable interface
X17ca
5 03055200- xx CAN bus cable Trailing cable interface
X18ca
6 03055227- xx Voltage supply X motor gantry 2 Trailing cable interface
X12ca
7 03055230- xx Yellow CAT5 cable sensor bus X Trailing cable interface
X22ca
8 03071336- xx Oranges CAT5 cable, hotlink cable camera Hotlink adapter X1cg
4 03071336- xx Voltage supply to fan Is already connected!
X1hm
Fig.12: Connecting the cable to GCU 3 Fig.13: Connecting the cable to the trailing cable interface and
the hotlink adapter
► Connect all cables from (1) to (4) to the GCU 3 at location 2.
► Connect all cables from (5) to (8) to the trailing cable interface and the hotlink adapter.
