4 Appendix 4.2 Description of Boards Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Prepare Kit 04/2017 76 4.2 Description of Boards 4.2.1 Distribution and Fusing Assembly [03118286-xx] Fig.33: Distribution an…
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
4 Appendix
4.1 Excerpts from the Service Manual
75
4.1.3 MGCU - Full Mode (From Machine No. Pxxxx)

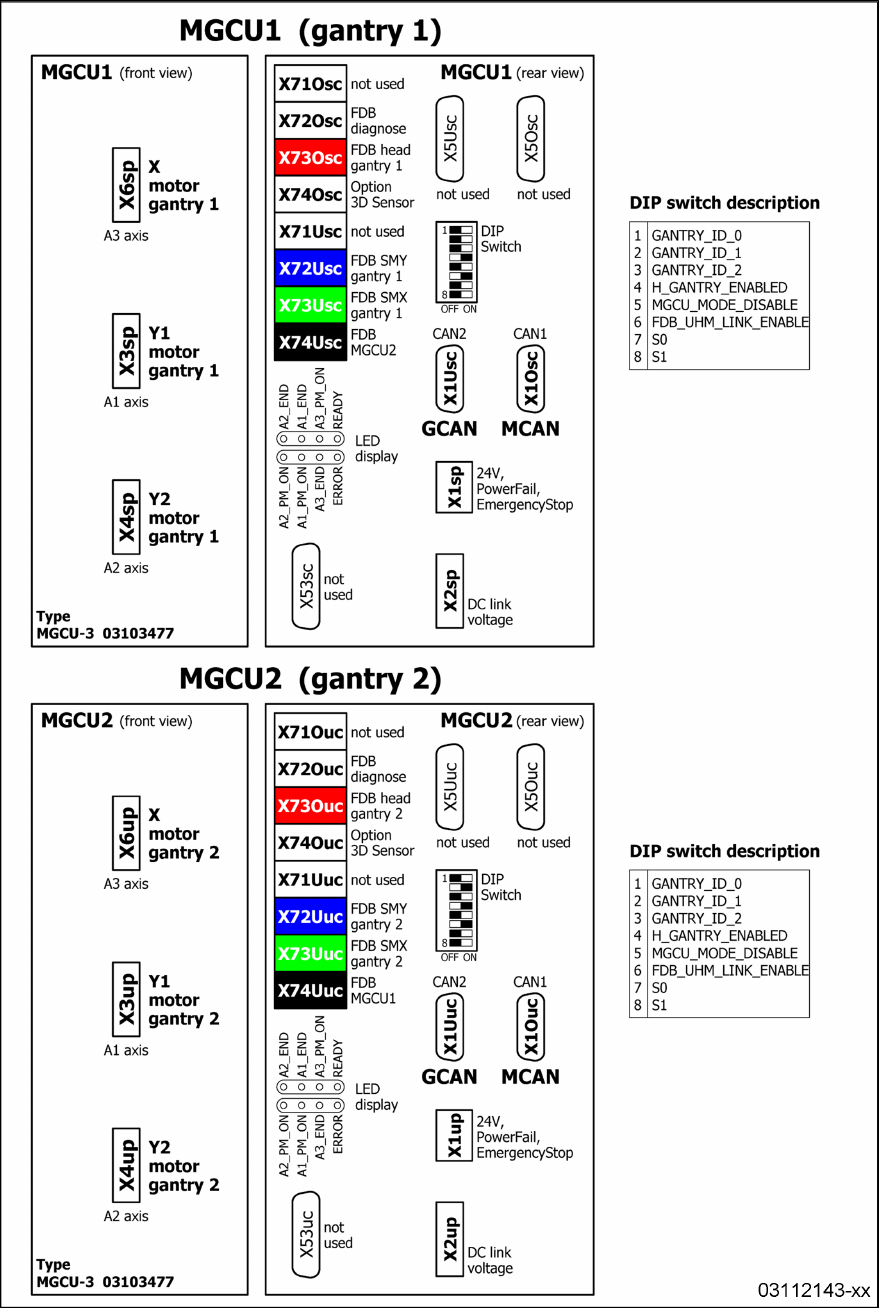

Fig.32: MGCU (Full Mode) connections
4 Appendix
4.2 Description of Boards
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
76
4.2 Description of Boards
4.2.1 Distribution and Fusing Assembly [03118286-xx]

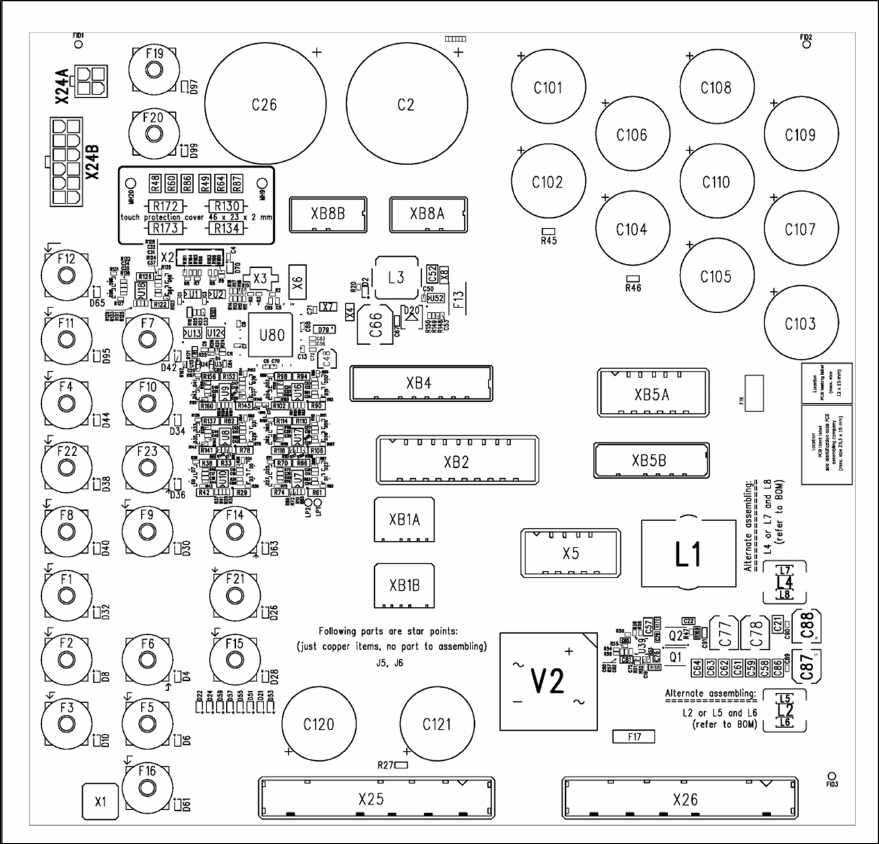

Fig.33: Distribution and fusing assembly [03104070-01]
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
4 Appendix
4.2 Description of Boards
77

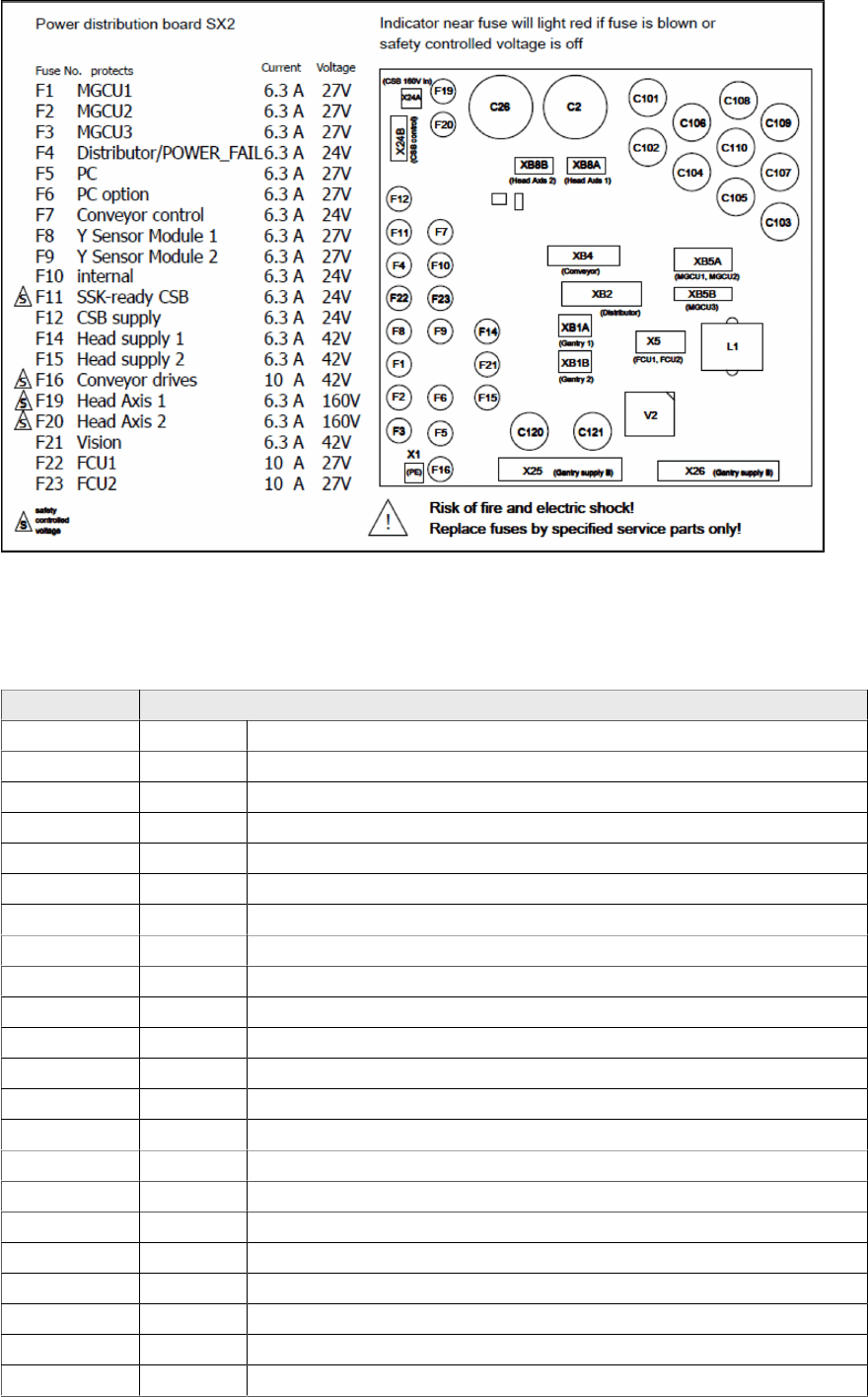

Fig.34: Overview of Fuses
●
Fuse 5x20mm T6.3A 400VDC [03133256‑xx] (replaced: [03078843-xx])
●
Micro fuse 5x20 / T 10 A [03010627-xx]
Fuses [03104070-01]
Fuse Description
F1 27V DC MGCU 1
F2 27V DC MGCU 2
F3 27V DC MGCU 3
F4 24V DC Distributor
F5 27V DC IBASE PC
F6 27V DC 3D Coplan PC option
F7 24V DC Transport
F8 27V DC Gantry 1
F9 27V DC Gantry 2
F10 24V DC Internal – C (internal voltage CSB – emergency off)
F11 24V DC SSK_Ready
F12 24V DC Safety Supply
F14 42V DC Gantry cable 1 MHCU
F15 42V DC Gantry cable 2 MHCU
F16 42V DC Conveyor drive
F17 27V DC Fuse protection 27V/24V DCDC
F18 Spare
F19 160V DC Head axes gantry 1
F20 160V DC Head axes gantry 2
F21 Spare
F22 27V DC FCU 1
F23 27V DC FCU 2
