Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 Prepare Kit 04/2017 4 Appendix 4.1 Excerpts from the Service Manual 73 4 Appendix 4.1 Excerpts from the Service Manual The following chapters are excerpts from the…
3 Fitting the Prepare Kit
3.8 Final Work
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
72
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
4 Appendix
4.1 Excerpts from the Service Manual
73
4 Appendix
4.1 Excerpts from the Service Manual
The following chapters are excerpts from the service manual for your machine. For more informa-
tion, refer to the full service manual for your machine.
4.1.1 GCU (Up To Machine No. Mxxxx)
Fig.29: GCU - front side
Fig.30: GCU - rear side
4 Appendix
4.1 Excerpts from the Service Manual
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
74
4.1.2 MGCU (From Machine No. Nxxxx to Oxxxx)

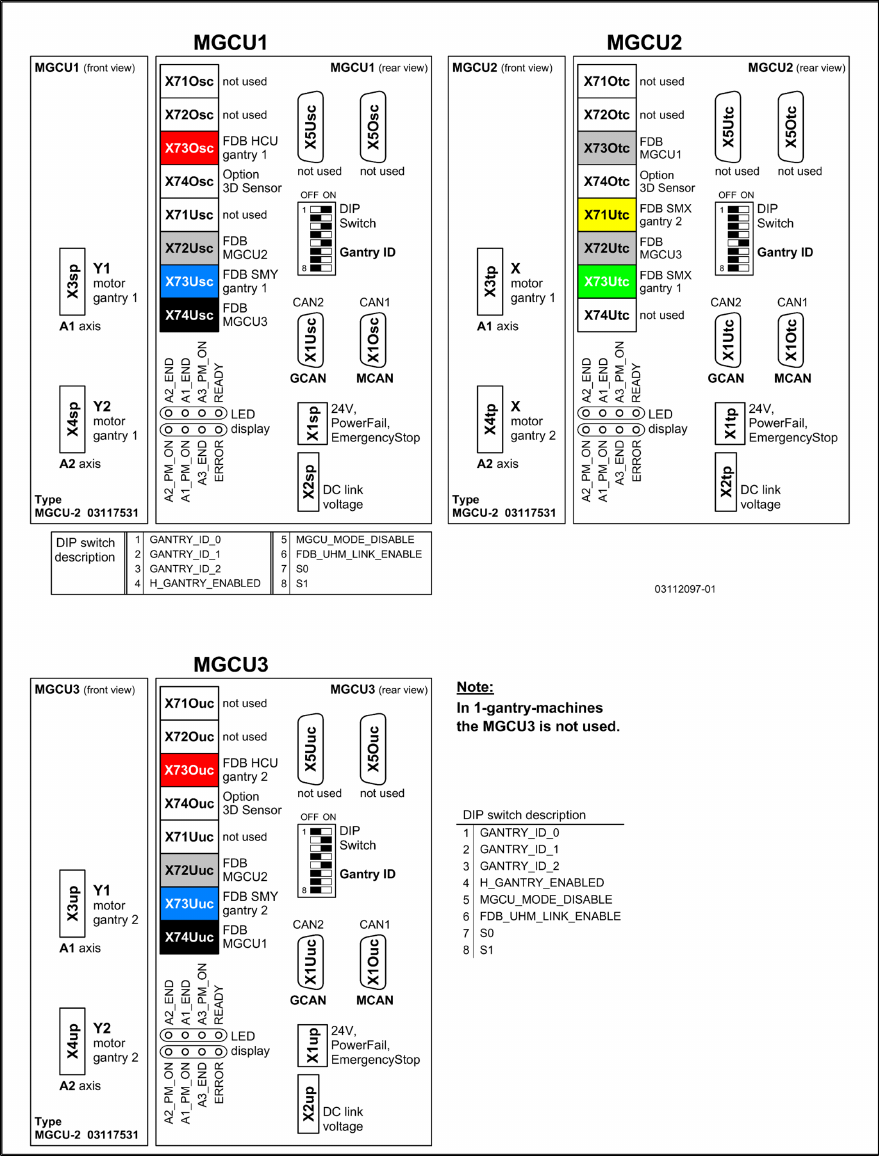

Fig.31: MGCU connections
