3 Fitting the Prepare Kit
3.8 Final Work
71
3.8 Final Work

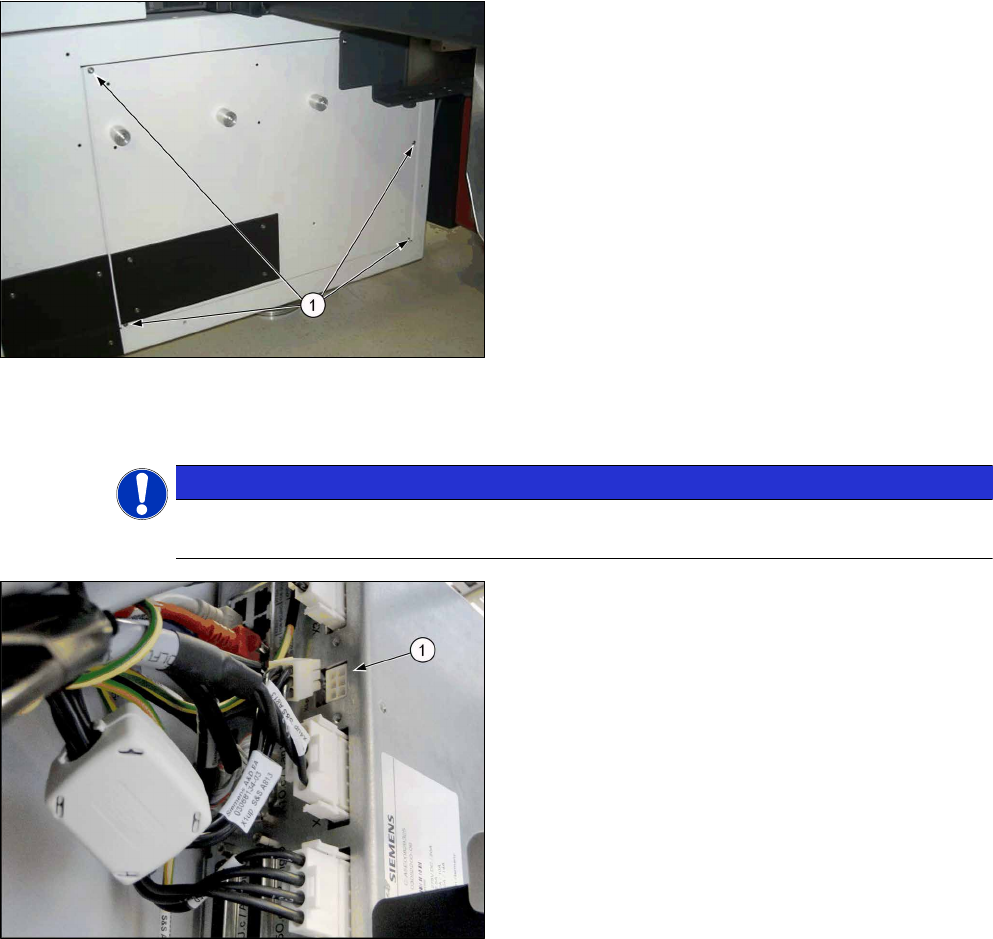

Side cover on infrastructure box
► Fit the inner side cover on the infrastructure box.
► Check once more that all cables have been run correctly and that the trailing cable is fixed in
the bracket.
NOTICE
Do not damage the cables
Make sure that the fans in the hood cover cannot damage any of the cables!
1. Unplug the cable [03068134-xx]
► To ensure a correct start-up of the machine,
please check that the GCU3 power cable has
been unplugged from the X1up connector.
► Attach the GCU label to the inside of the door, above the power supply of infrastructure box 3.
ð The installation is now complete.
Troubleshooting
Error Description:
●
The machine performs a reference run after each time the hoods have been opened.
Solution:
► Check pins 5 and 6 at X1 (PowerEnable and PowerFail) at the GCU.
► For more information, refer to the SIPLACE service.
3 Fitting the Prepare Kit
3.8 Final Work
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
72
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2
Prepare Kit 04/2017
4 Appendix
4.1 Excerpts from the Service Manual
73
4 Appendix
4.1 Excerpts from the Service Manual
The following chapters are excerpts from the service manual for your machine. For more informa-
tion, refer to the full service manual for your machine.
4.1.1 GCU (Up To Machine No. Mxxxx)

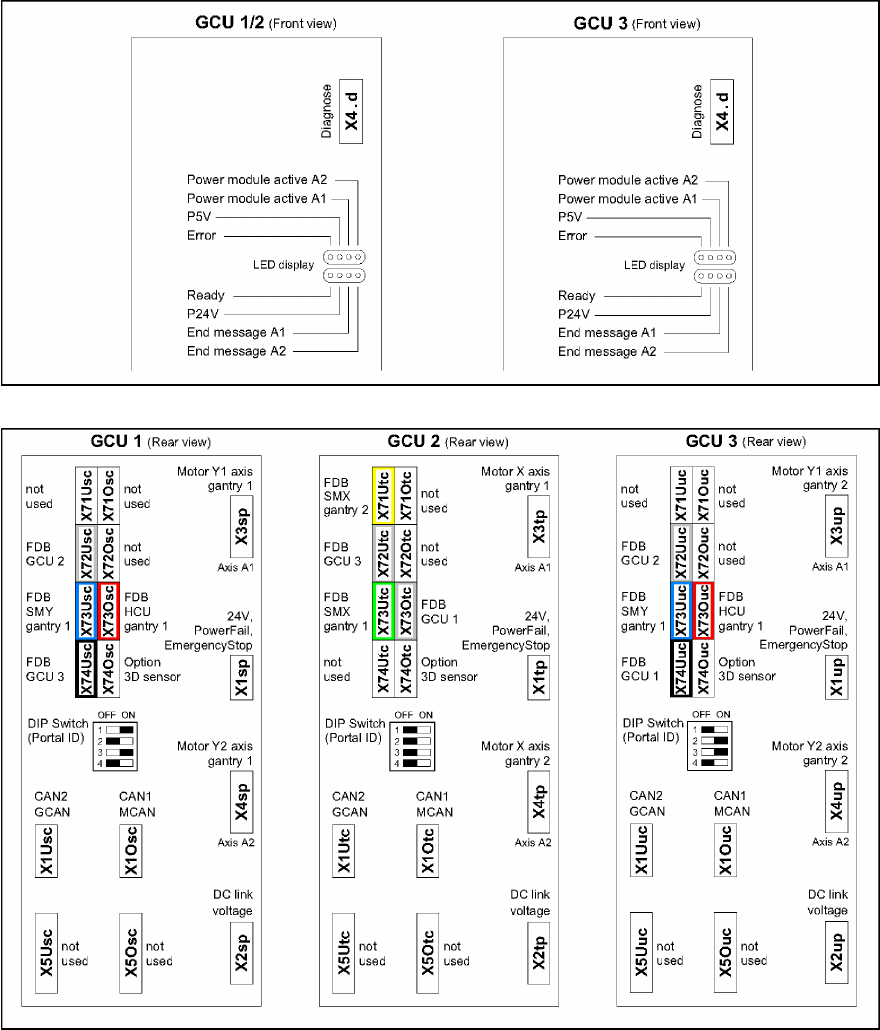

Fig.29: GCU - front side
Fig.30: GCU - rear side
