Fitting the Gantry Final Wo rk Stowing the Gantry Carrier and the Prepared Case 100 Gantry Modularity Portalmodularität 3.6 Final Work 3.6.1 Stowing the Gantry Car rier and the Prepared Case Stowing the gantry carrier in…

100%1 / 120
Fitting the Gantry
Fitting the Short End Position Buffer Connecting the Trailing Cable
Gantry Modularity Portalmodularität 99
Connections established
This diagram shows the precisely run and correctly ar-
ranged connections.

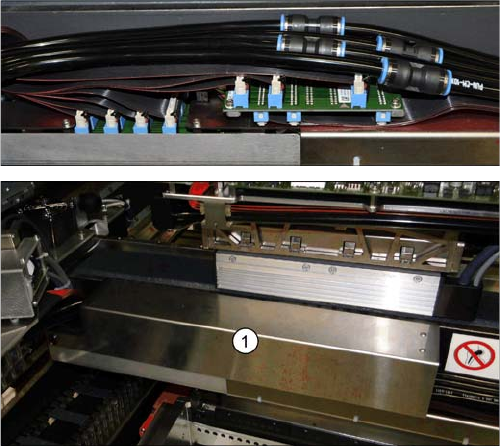

► Fit the cover (1) over the gantry interface.
Fitting the Gantry
Final Work Stowing the Gantry Carrier and the Prepared Case
100 Gantry Modularity Portalmodularität
3.6 Final Work
3.6.1 Stowing the Gantry Carrier and the Prepared Case
Stowing the gantry carrier in the transportation crate
► Use the gantry lift to move the gantry carrier into the transportation crate.
► Fix the gantry carrier into place in the transportation crate, with the 4 fastening screws.
► Release the gantry carrier from the gantry lift and move the gantry lift to one side.
► Place the foam cover for the placement head in the transportation crate.
► Close the front and top cover on the transportation crate.
Placing assembly parts in the "Prepared" case
3.6.2 Checking the Gantry Coding
You have removed the following parts which you will
need to dismantle the gantry later on. Keep these parts in
the "Prepared" case.
▪ The long end position buffer
▪ A green lever as transportation lock for the gantry
▪ Two transportation locks for the placement head
▪ Black plastic foil for trailing cable
▪ Trailing cable holder with knurled head screw
► Check the DIP switch (1) for the gantry coding of the
locations on the head interface.
Switch Designation Gantry 1 Gantry 2
1 DC/DC OFF OFF
2FANOFFOFF
3P1OFFON
4P0OFFOFF
Fitting the Gantry
Note GCU Final Work
Gantry Modularity Portalmodularität 101
3.6.3 Note GCU
Power cable GCU 3 [03068134-xx]

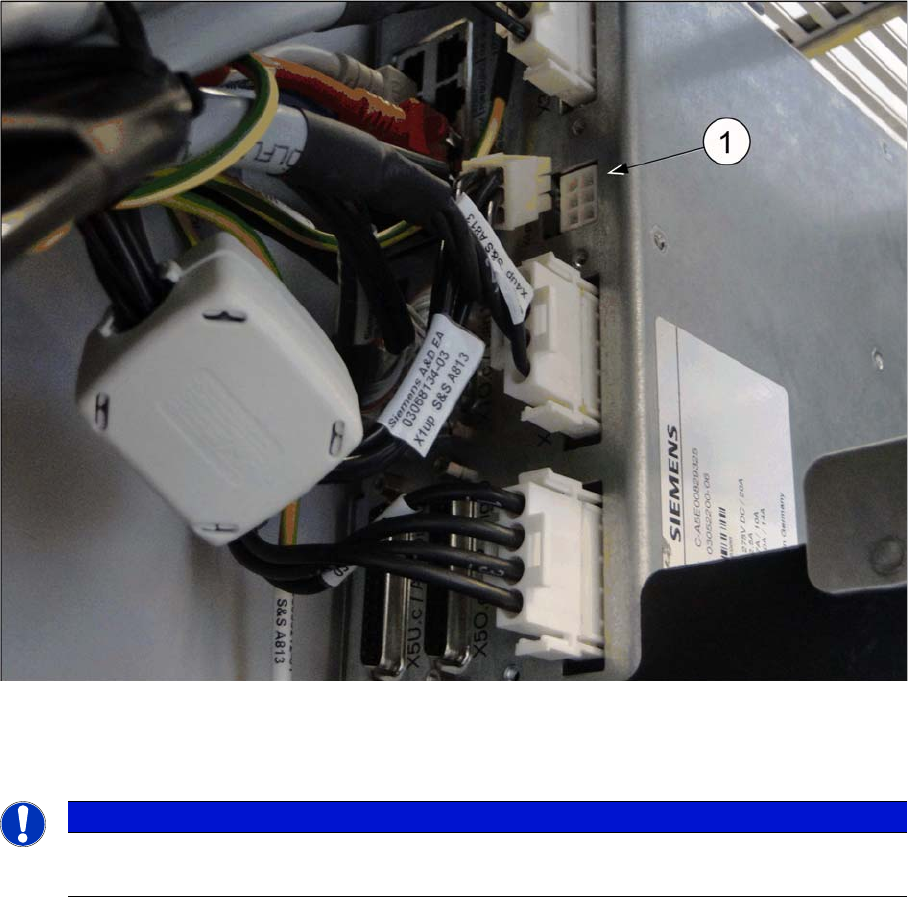

► Please check the connection of the GCU3 power cable with the connector X1up. (1) to ensure a cor-
rect start-up of the machine.
NOTICE
Dismantling a Gantry
The connector X1up has to be disconnected from the GCU3, if the gantry is dismantled later on.
