Brief Description
Configurations Overview
Gantry Modularity Portalmodularität 77
2.1.4.2 Stationary Cameras
Stationary cameras on the SX1
SX1
1. Location 1 in outer position
2. Location 2 in inner position
3. Gantry 1
4. IC camera and/or FC camera/3D coplanarity module
(location 1)
You can only install either an FC camera or a 3D co-
planarity module!
Stationary cameras on the SX2
SX2
1. Location 1 in outer position
2. Location 2 in outer position
3. Gantry 1
4. Gantry 2
5. IC camera and/or FC camera/3D coplanarity module
(location 1)
You can only install either an FC camera or a 3D co-
planarity module!
6. IC camera (location 2)
Brief Description
Overview Additional Work
78 Gantry Modularity Portalmodularität
2.1.5 Additional Work
2.1.5.1 Buffer Stopper
When upgrading a SX1 to an SX2 or downgrading to a SX1, always replace the buffer stopper.
2.1.5.2 Empty Tape Duct Intermediate Plate
If tapes with high components are processed, you will need to remove the empty tape duct intermediate
plate when upgrading a gantry with TwinHead or CPP head and stationary camera.
If you are only using component with tapes up to 12 mm, keep the intermediate plate in the empty tape
duct.

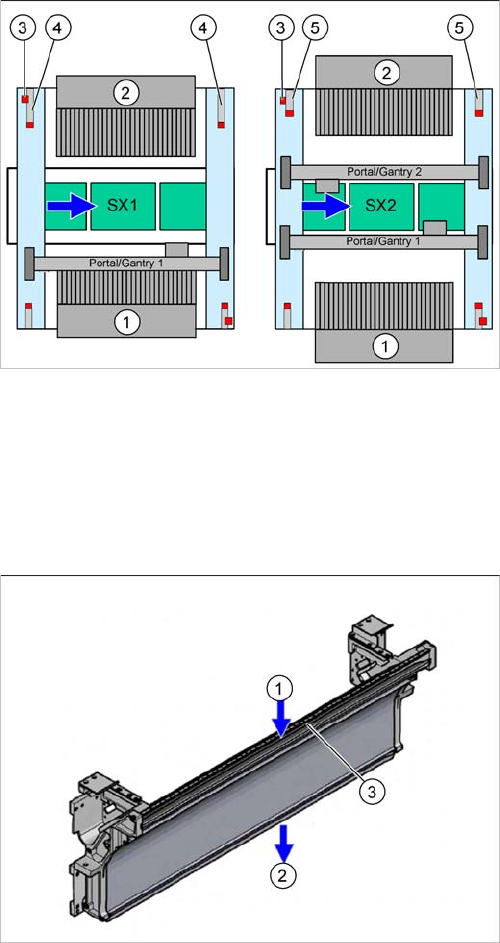

1. Location 1
2. Location 2
3. Safety switch
4. Long buffer on a SX1
5. Short buffer on a SX2
1. Inlet slot for empty tapes
2. Outlet slot for the empty tapes above the pneumatic
tape cutter
3. Dividing plate for tapes < 12 mm (can be removed for
tapes > 12 mm)
Brief Description
Additional Work Scope of Delivery
Gantry Modularity Portalmodularität 79
2.2 Scope of Delivery
▪ Gantry carrier [00519814-xx].
▪ Gantry lift [00519813-xx]
The following gantry-head combinations and options are available for SIPLACE SX1 (SX+ Prepared):
Options for a gantry with C&P20 head (SpeedStar) Item No.
1 x nozzle changer C&P20 SX1/2 (position 1 or 2) – row 1 00519715-xx
1 x nozzle changer C&P20 SX1/2 (position 3 or 4) – row 2 00519843-xx
1 x query component reject bin 00519848-xx
Options for a gantry with CPP head (MultiStar) Item No.
1 x nozzle changer CPP SX series (position 1 or 2) – row 1 00519841-xx
1 x nozzle changer CPP SX series (position 3 or 4) – row 2 00519842-xx
1 x query component reject bin 00519848-xx
Stationary cameras (optional)
IC camera, type 33 00519902-xx
FC camera, type 25 00519918-xx
Options for a gantry with TwinHead Item No.
1x reject bin sensors 00519848-xx
Stationary camera:
FC camera, type 25 (optional) 00519918-xx
NOTICE
BOMs for regular options
The BOMs for regular options can be found in the respective assembly instruction manuals.
► (See also "3.6.5 Fitting the Nozzle Changer and Options" [ ➙ 103]).
NOTICE
Delivery state "Prepared" for gantry modularity
Your machine can be upgraded at a later stage with the prepared kit [00519810-xx]. Contact
your SIPLACE Service team for details.
