Fitting the Gantry
The Gantry Lift Gantry Preparations
Gantry Modularity Portalmodularität 89
Overview
assembly
See also
3.3.2 Unpacking the Gantry [ ➙ 90]
1. Gantry lift , SX1/SX2, [00519813-xx]
2. Gantry carrier plate – [03012160-xx]
CAUTION!
Safety Instructions
Pay attention to the weight of approximately 64 kg when
unpacking the transport wrapper!
Use appropriate tools or call further qualified persons.
The gantry lift has to be locked sufficiently when trans-
porting it again in order to eliminate any danger.

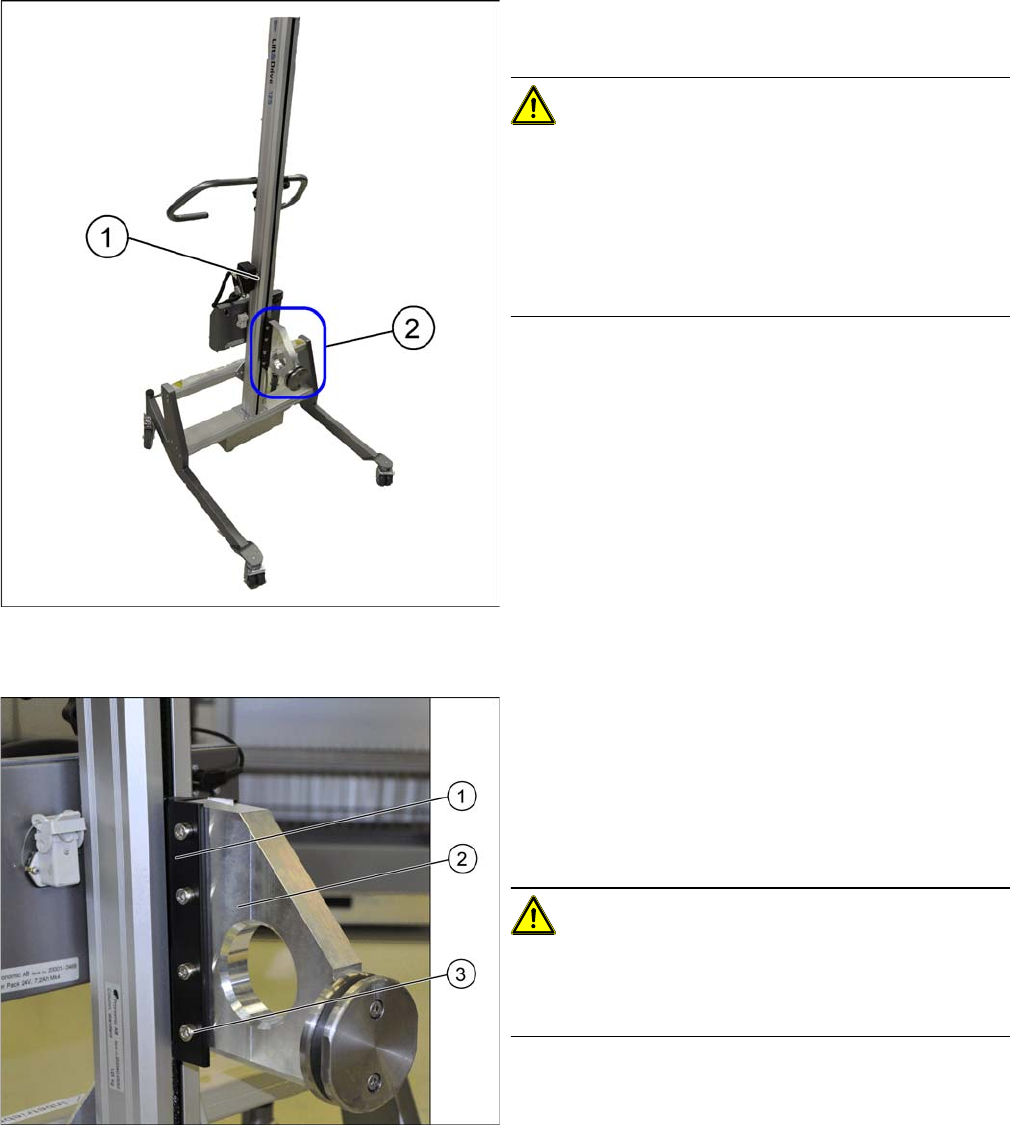

Fitting the gantry carrier plate
To enable the gantry lift to accommodate the gantry, the
gantry carrier plate (2) must be fitted to the slide (1) of the
gantry lift.
► Use the 4 fastening screws (3) to fix the gantry carrier
plate (2) to the slide (1) of the gantry lift.
CAUTION!
Information on savety
Mount all 8 screws with the associated washers and tight-
en them with 18 Nm.
Fitting the Gantry
Gantry Preparations Unpacking the Gantry
90 Gantry Modularity Portalmodularität
3.3.2 Unpacking the Gantry

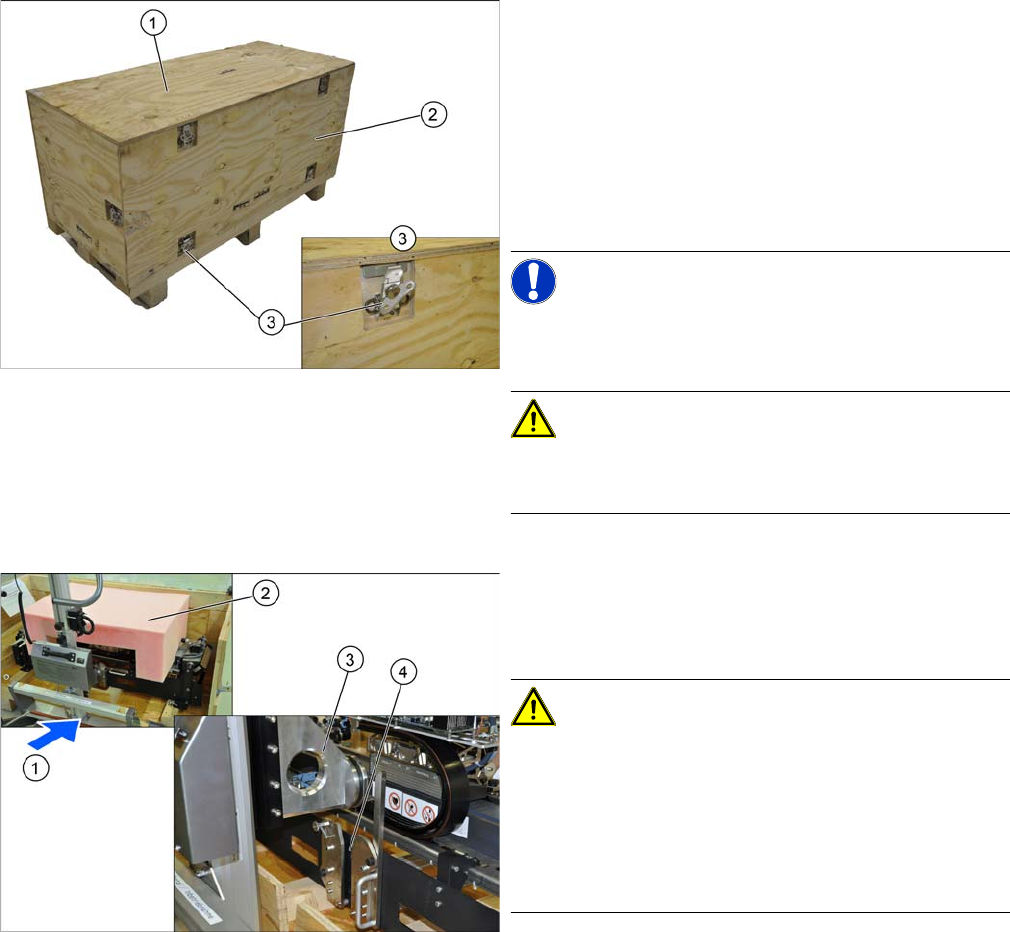

Transportation crate
The gantry is packed in a transportation crate. Move the
transportation crate near to the SIPLACE SX machine on
which the gantry is to be assembled. Do not move the
gantry over long distances with the gantry lift.
► Open the turn-lock fasteners (3) on the top (1) and
front (2) of the transportation crate.
► Remove the two wooden panels at (1) and (2).
NOTICE!
The gantry is fixed with 4 screws in the transportation
crate.
CAUTION!
Carrier
When putting back the carrier it must be screwed again.
Move the gantry lift into position
► Carefully move the transportation lift (1) up to the
gantry.
CAUTION!
Take care not to damage the gantry when moving it with
the gantry lift
Do not hit the gantry or locks with the gantry carrier plate
(3).
Make sure that the gantry carrier plate (3) protrudes
above the gantry carrier locks (4).
► Remove the foam cover (2).
Fitting the Gantry
Locking and Transporting the Gantry Carrier Gantry Preparations
Gantry Modularity Portalmodularität 91
3.3.3 Locking and Transporting the Gantry Carrier
Move the gantry lift to the gantry

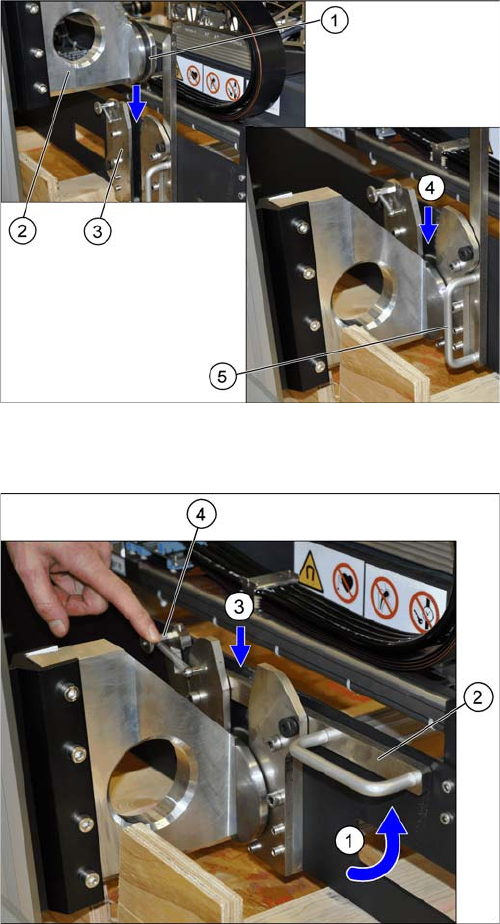

Locking the gantry carrier
► Move the gantry carrier plate (2) for the gantry lift over
the gantry carrier locks (3). The groove (1) must be
able to engage with the two locking plates (3).
► Lower the gantry lift so that the gantry carrier plate
can slide into the locks (4).
► Move the lift only so far down that the locking lever (5)
can be closed.
► Press the lock (4) back and pull (1) the handle (2) of
the lock upwards.
⇨ The lever (3) will engage. The spring on the lock (4)
secures the locking mechanism.
