Fitting the Gantry Final Wo rk Performing Calibration 106 Gantry Modularity Portalmodularität 3.6.6.1 Description and Connections on the GCU GCU - front side GCU - rear side
Fitting the Gantry
Performing Calibration Final Work
Gantry Modularity Portalmodularität 105

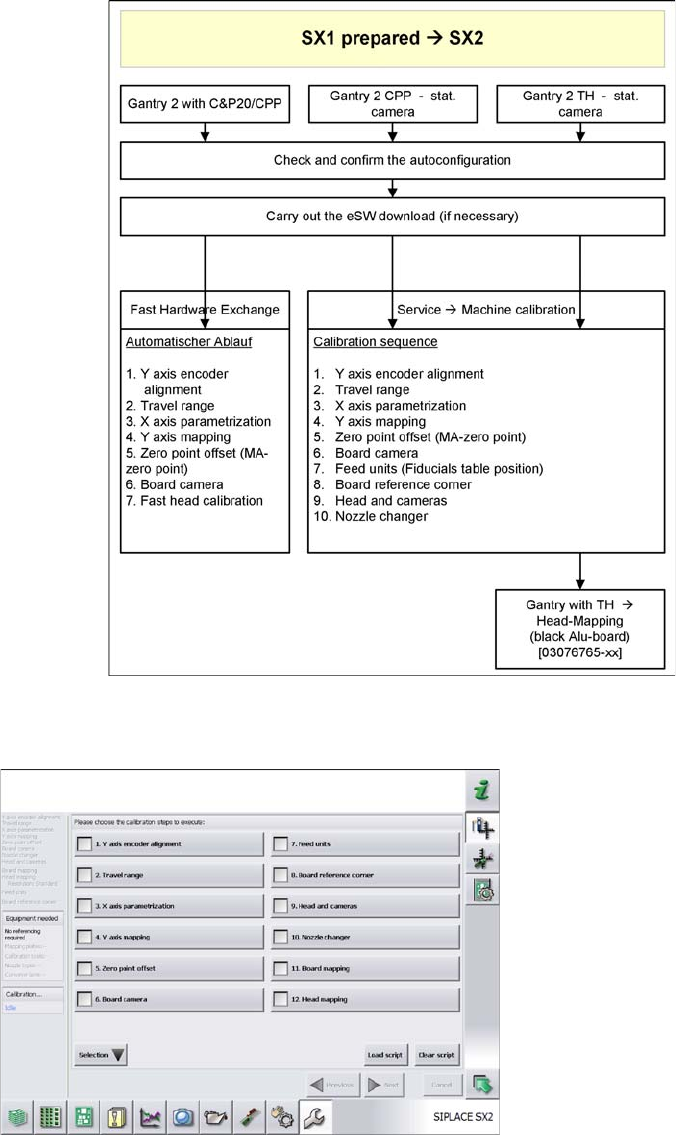

Calibration
► SR 704.xx
► User => Service
► Machine Service => Machine Configuration
► Confirm and Change Configuration => confirm
Fitting the Gantry
Final Work Performing Calibration
106 Gantry Modularity Portalmodularität

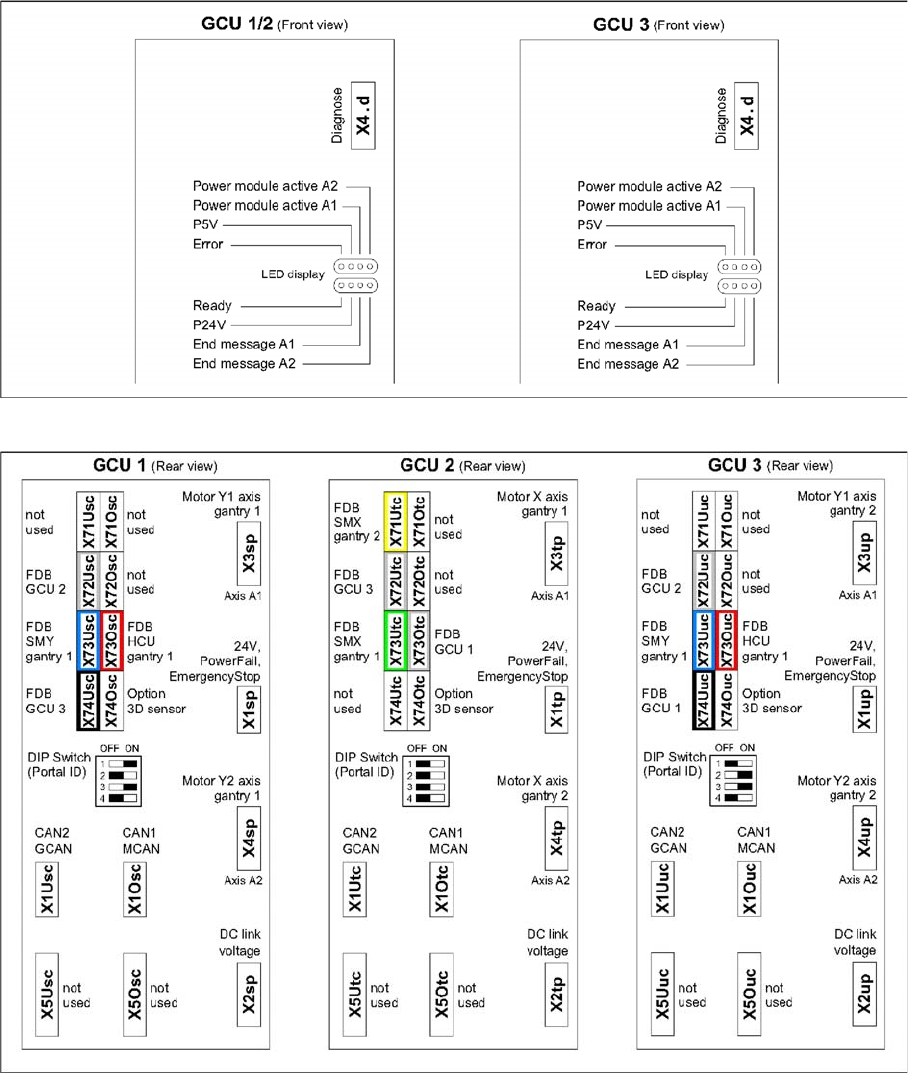

3.6.6.1 Description and Connections on the GCU
GCU - front side
GCU - rear side
Fitting the Gantry
Performing Calibration Final Work
Gantry Modularity Portalmodularität 107

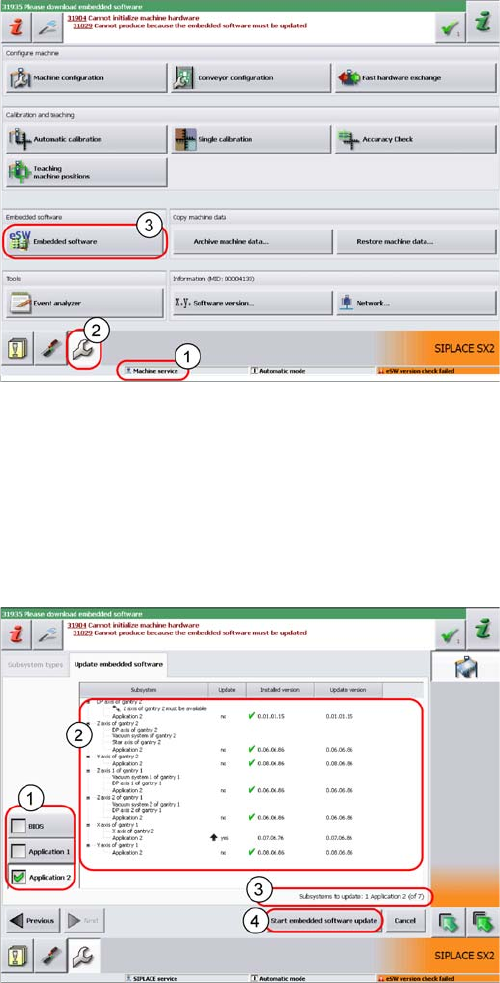

3.6.6.2 Firmware Download
► Select the Update machine.. button to check the whole machine and to perform an eSW download
for multiple subsystems.
► Select the Update subsystem... button to select and check a specific subsystem, in order to perform
an eSW download.
► Select theVersion Information... button in order to display all subsystem versions, Bios application 1/
2.
► The function Firmware Download can be performed
with the operator levels (1) Machine-Service or
SIPLACE-Service.
► Switch over to the service menu (2).
► Select the button Embedded Software (3).
1. Selection button, BIOS application 1/2
2. Shows the status of the individual subsystems.
3. Update information about the number of subsystems
which still have to be downloaded.
4. Starts the download.
