Brief Description
Scope of Delivery C&P20A Head
80 Gantry Modularity Portalmodularität
2.2.1 C&P20A Head
2.2.2 TwinHead P&P
2.2.3 CPP Head
2.2.4 Gantry
2.2.5 Gantry Carrier Plate for SX1/SX2 [03012160-xx]
Designation Item No.
C&P20A placement head for CoD 00168605-xx
C&P20A placement head 03062095-xx
Upgrade kit C&P20 / B series 03065866-xx
Component reject bin up to 6x6 for P001 03062378-xx
Designation Item No.
TwinHead P&P for CoD 00168606-xx
TwinHead P&P/THK 03033629-xx
Basic set TwinHead, SX1/2 03079380-xx
Nozzle changer assembly / TH / B series 03062452-xx
Nozzle set, TwinHead 03019633-xx
Upgrade kit for stationary camera type 33, SX1/2 03078931-xx
Designation Item No.
CPP placement head for CoD 00168607-xx
CPP placement head / without camera 03053528-xx
Upgrade kit CPP / SX1/2 03065864-xx
Component reject bin up to 6x6 for P001 03062378-xx
Left bin 03063238-xx
Designation Item No.
GR gantry/P001 for CoD 00168608-xx
GR gantry/P0018 03062383-xx
Gantry carrier SX1/2 03064450-xx
Transportation crate for SX gantry system 03079586-xx
Amount Designation Item No.
1 Holder 03068900-xx
2 Anchor 03068901-xx
1 Distance plate 03016437-xx
2 DIN 6912-M8 x 40-A2-70 03046168-xx
8 DIN 125-A 8.4-140HV-A2 03045649-xx
8 DIN912-M8 x 20-A2-70 03045111-xx
Brief Description
Gantry Carrier Plate for SX1/SX2 [03012160-xx] Tools and Equipment Required
Gantry Modularity Portalmodularität 81
2.3 Tools and Equipment Required
▪ Gantry lift [00519813-xx]
▪ Torque wrench (2 – 25 Nm) [00376625-xx]
▪ Loctite 241 [02101037-xx]
▪ Prepared case (plastic case with foam insert) containing the following:
CAUTION
TÜV (Technical Control Board)
The gantry lift must be tested by the TÜV (Technical Control Board) every two years.

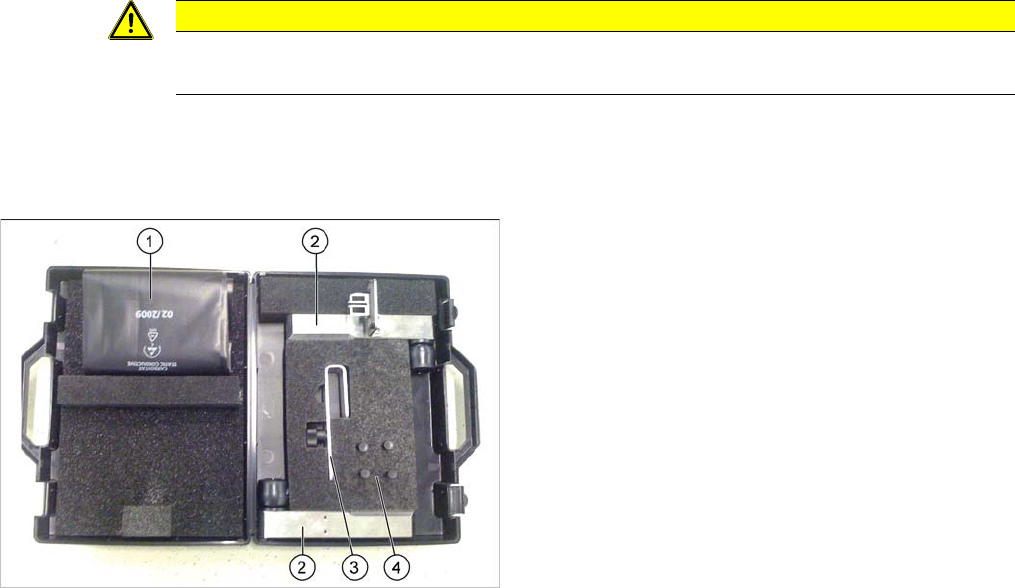

Prepared case
The case is configured differently depending on the ma-
chine type
1. Trailing cable protective foil
2. Buffer stop (2x)
3. Trailing cable mount
4. Pneumatic hose plug (4x)
