Station Software 706.1 SP2/705.05 SP2 / Version Description Ausgabe 07/2013 Edition
25
6.11.5 Displaying Deviating Feeder Parameter Settings
Compatible mode: Not supported

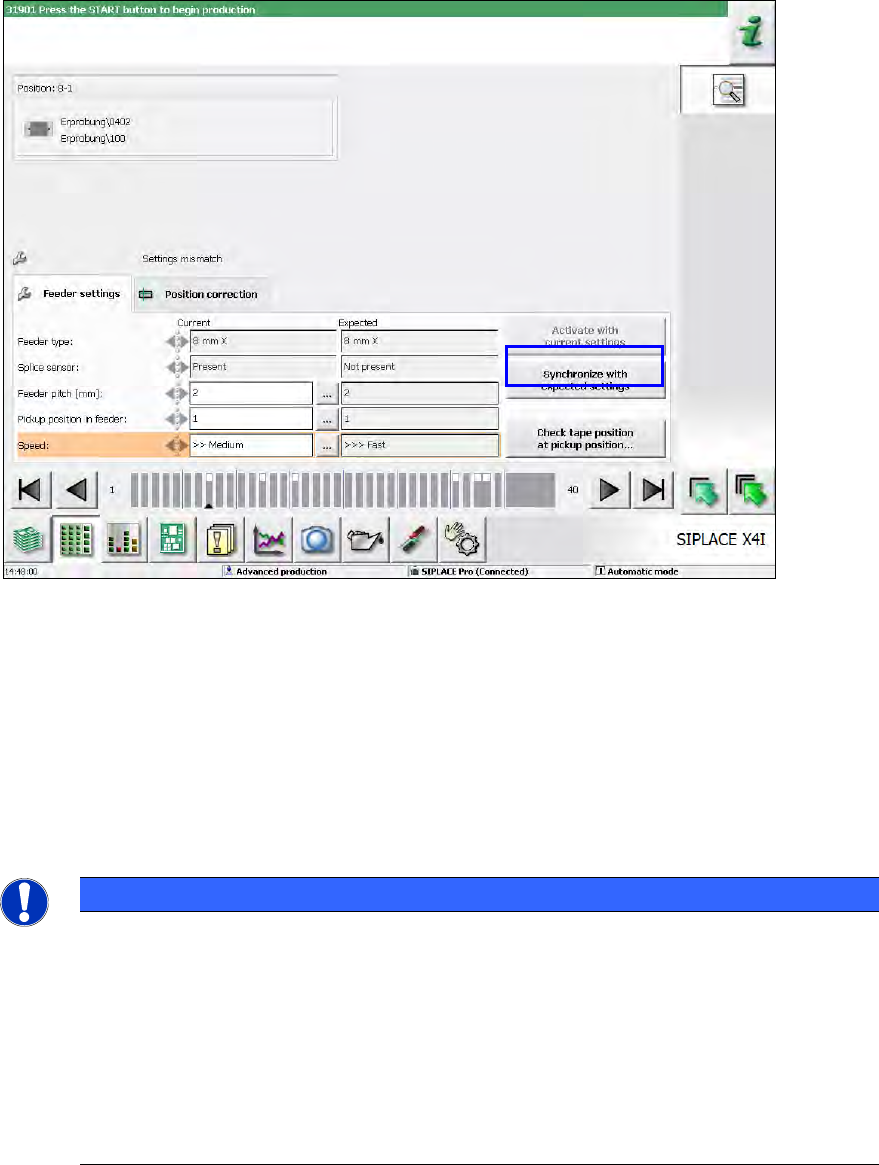

Figure 5-8: Deviating feeder parameter settings
The following entries/icons/warnings are displayed on the GUI:
● Original feeder parameters
The original expected settings of the feeder parameter are displayed in the Details view of the
feeder. They can be restored anytime by clicking on the Syncronize with expected settings
button.
The original settings will be unchanged until new defined job or setup data is effective.
Restoring to the old settings is possible on all activity levels.
NOTICE
Workflow with Handling Option 2
With handling option 2, changes of the feeder parameter are uploaded to SIPLACE Pro
into the local setup data. Thereafter, the changed setup data is redefined by SIPLACE
Pro at the station. At the station they will not be effective until the current produced board
has left the machine.
If the machine has already run empty, the updated setup data will be effective
immediately. As soon as the setup data is effective, the expected feeder settings will be
reset accordingly. From this time, it is not possible to restore the original feeder
parameters anymore!
Station Software 706.1 SP2/705.05 SP2 / Version Description Ausgabe 07/2013 Edition
26
● Icon / Warning for changed feeder parameters
Changed feeder parameters are displayed with the icon and, if applicable, a warning if
the concerned feeder is present in the current setup. The warning is displayed in the Details
view of the feeder and is highlighted in orange in the location and main views. Depending on
the set handling option, the following is valid:
– Handling option 1: Display of icon and warning.
– Handling option 2: Display of icon, no warning.
– Handling option 3: Display of icon, no warning.
● Icon/ Warning for changed pick-up coordinates (XY, angle)
Changed pick-up coordinates and pick-up angle are displayed with the icon if the
operator has changed the pick-up position by teaching or has adjusted the pick-up angle. This
display is only displayed if the feeder is present in the current setup, as well.
If the pick-up coordinates (XY) are changed, the icon is displayed only. If the pick-up angle is
adjusted, a warning will be additionally displayed, as this causes another alignment of the
component on the board, what might lead to a faulty placement angle.
The warning mechanism is always activated, independent of the set handling options.
● Icon / Warning if pitch settings to high in dependance of the pick-up position
If the operator tries to set a too large pitch in dependance of the pick-up position (larger as the
default values in the subsequent tables) or changes the pick-up position, a warning will be
displayed. The warning is displayed in the Details view of the feeder and is highlighted in
orange in the location and main views.
Additionally, the icon is displayed in the setup view.
The warning mechanism is always activated, independent of the set handling options.
Station Software 706.1 SP2/705.05 SP2 / Version Description Ausgabe 07/2013 Edition
27
Dependent on the pick-up position, the following default pitch values are valid.
For 8mm X feeders:
Pick-up
position
Default pitch
1
2 mm
2
4 mm
3
4 mm
4
8 mm
For 2x8mm X feeders:
Pick-up position
Default pitch
1
2 mm
2
4 mm
3
8 mm
Priorities in the Display
If multiple problem situations occur simultaneously, the warning or the state text of the situation
with the highest priority will be displayed in the Details view of the feeder. The following
precedence is valid (descending priority):
– Pick-up angle has been changed (with warning/icon)
– Pitch to small (with warning/icon)
– Settings mismatch (for handling option 1 only, with warning/icon)
– Pick-up position has been changed (without warning/icon)
If the current displayed problem case is solved first things first, the message for the next subjacent
priority level will be visible.
