Zhejiang Neoden Technology Co., Ltd

1.5 Operation flow chart

NO.

Flow chart

Note

1. The pick and place machine is a precision equipment. In the

installation position of the machine, it is necessary to carry out horizontal

correction before and after the equipment to prevent the uneven operation

of the equipment from damaging the service life of the equipment;

2. Connect and fix the equipment interface before and after the

equipment, and connect and fix the ground wire;

3. The access power must meet the requirements of power identification;

4. No less than 0.55mp air source input and adjust the pressure value to

OK;

5. Check the safety of the working area of the mounting head;

6. The XY transmission parts are not fastened and interfered, and check

that the emergency stop switch is in normal state;

Power on and turn the power switch clockwise;

1. When the self-test is carried out, the head indicator light of the

mounting head and the light source of the IC camera will be on and

flash briefly to indicate that the self-test is normal;

2.XY initialization (origin reset) is normal, the software enters the file

list interface, and no error report pops up;

After power on, directly enter the file list page;

See page 13 for the introduction of machine operation for

details;

Suggestions on production process:

1. First component confirmation: confirm the component angle

and polarity, component picking position and mounting

position;

2. Start production after confirming solder paste printing and

temperature setting;

Production process;

After the production is finished, reset the origin and prepare to

shut down;

Shut down the system via computer, then power off the

machine.

Disconnect the electricity supply after the system being

powered off.

Keep the machine clean, daily maintenance of the nozzles

assures high utility.

Software shut down

System shut down

Power OFF

Exit

Production Finished

Preparation

Power ON

Automatic Test

Power on page

Program and Edit;

Production

Shutdown steps

Mounting

Modify

Abnormal

Start-up steps

Zhejiang Neoden Technology Co., Ltd

1.6 Flow chart of making a programming file

Note:

A. The basic procedure of making a programming file by manual programming or import coordinate file is similar, but

there are two different parts: component list and fiducial setting.

B. Please find the detailed operation steps of the differences on relative page.

Start

Edit the file

Save and return

PCB feed setting

Feeder settings

Fiducial setting

Penalized PCB first chip

Component setup

See P 12

See P 31

Select file and start

第 14 页

See P 14

See P 19

See P 26

Zhejiang Neoden Technology Co., Ltd

2.PCB Editing

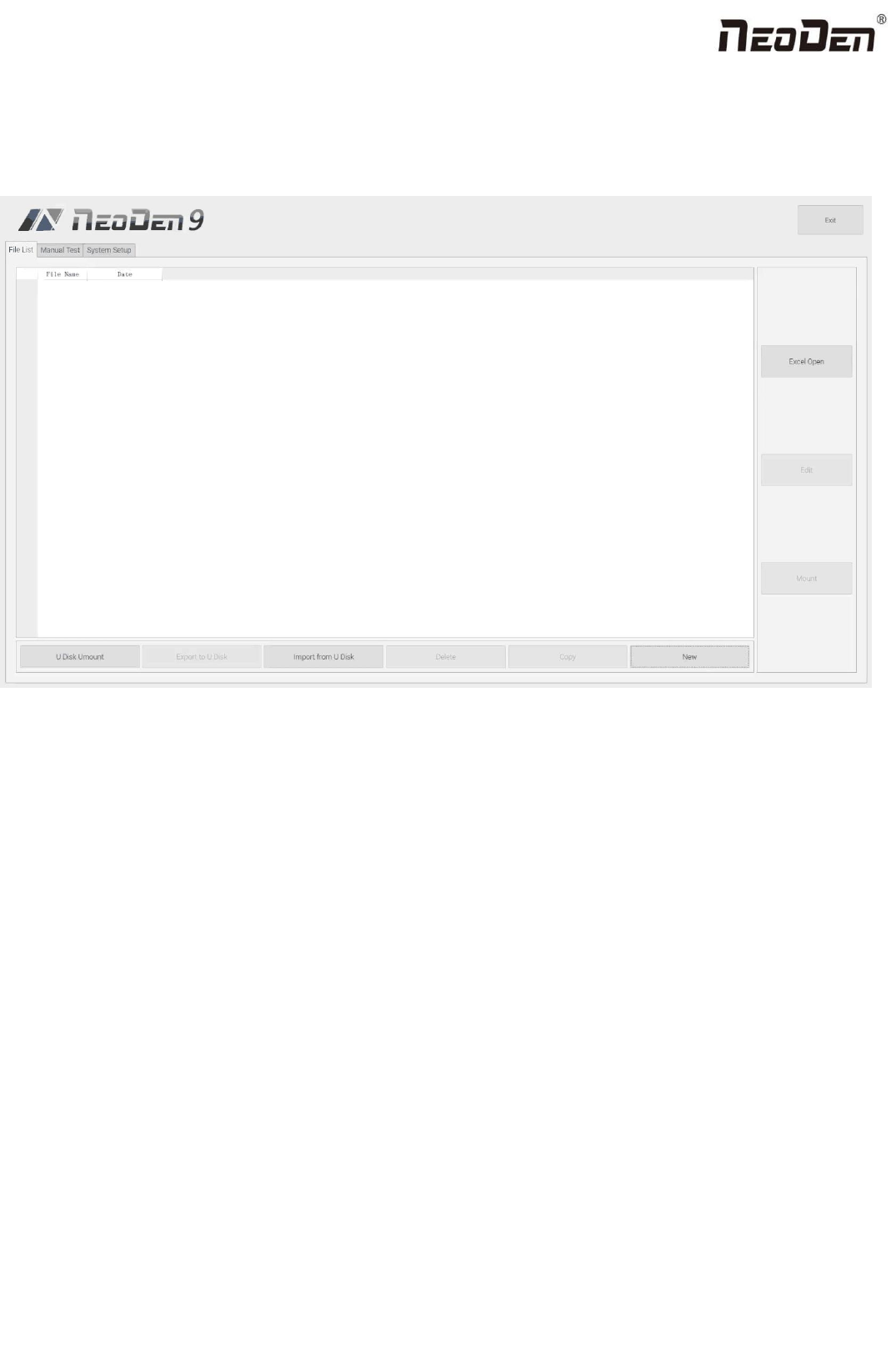

On the file list page, select an existing file for editing or add a new file and name it, select the file for editing, and enter the

editing interface:

File list introduction:

(1) Excel Open：The Excel table of the file can be modified directly in the table for some routine operations,

simplifying the programming operation.

(2) Edit: select a file and click Edit to enter the corresponding editing interface.

(3) Processing: after editing the file, after checking the correctness, select the file and click processing to mount.

(4) Export file: After connecting an U disk, select the file and click Export, after the successful notice pops up, the

export is finished.

(5) Import from U disk: for the files that have been edited offline, they can be directly imported from U disk for

mounting. After connecting U disk, click Import from U disk, select the corresponding files in the new window, and

click OK. When the imported files are showed in the file list, the operation is finished.

(6) Delete: select the corresponding file, click delete, a prompt window will pop up, and click Yes.

(7) Copy: select the corresponding file, click Copy, and the file list will generate a file of xxxcopy1. In order to

prevent misoperation, a new file can be copied before operation.

(8) Add a new file: click Add to open the input window, input the file name, and click OK. At this time, when the file
