Zhejiang Neoden Technology Co., Ltd

It is mainly used for a single PCB board and multiple identical PCB boards consistent of the whole board (Notice:

coordinate programming is done as a single board) Generally, need to select 2 or 3 mark points.

2. Mark point alignment

（1）Manual alignment:

If the fiducial point quality is poor and the recognition is not accurate, the reference position can be determined manually.

If there is no fiducial point on the PCB, which can through some location holes and set up some special reference point

manually to replace and confirm reference position. Note: Generally use SMD1 coordinate in chip list and the one that is

relatively easy to find far away from SMD1 as fiducial points .In this way, the relative placement effect will be better during

placement, the reference point is determined manually.

(2) Auto alignment

The machine will scan and align fiducial points automatically.

3.Mark Point information

（1）Mark point coordinate

Import the coordinate automatically status: the data collection of fiducial point, which through PCB circuit board to find

fiducial point coordinate information directly, and input directly.

Manual programming status: Select fiducial point on the list and click “align”, enter the image capture page, and then find

the center of the fiducial point via movement, select suitable light source and brightness, click "Mark align" see below

figure, and then click "Save and Back" to go back to main page.

（2）Min, max value

Zhejiang Neoden Technology Co., Ltd

It means the size of mark point, it has a floated value, which can prevent recognizing mark point wrongly.

（3）Light source

Light source divide into inner、middle、 outer、inner and middle、middle and outer, whole lights. The user can make

adjustments accordint to fiducial point recognition situation.

（4）Brightness

The user can adjust the brightness when align the fiducial point according to actual situation.

Selection of light source and brightness: The user can lock the location of the fiducial point through the XY position lock

interface, select the light source and brightness through the recognition of the Mark camera on the right, and fill the

corresponding parameters into the mark point information.

（5）Range

If there are interference points near the Mark point, you can input a certain value and ensure identify the Mark point more

accurately.

（6）Circle Degree

Input reasonable circle degree value,can avoid interference from other points effectively.

（7）Mode

Dividing into white point and black point, select black point mode if have hole and bright point,select white point mode if

have bright point.

（8）Camera

Support select left camera and right camera(user can select the camera for calibration according to the actual situation),also

can select default setting camera. If user select camera that can’t reach the position, the machine will use corresponding

camera during work.

（9）Mark point add and delete

Click “new” to add new fiducial point(base on mode of the latest fiducial point). Click ”delete” to remove the selected

fiducial point you want.

4.2 Component list setting

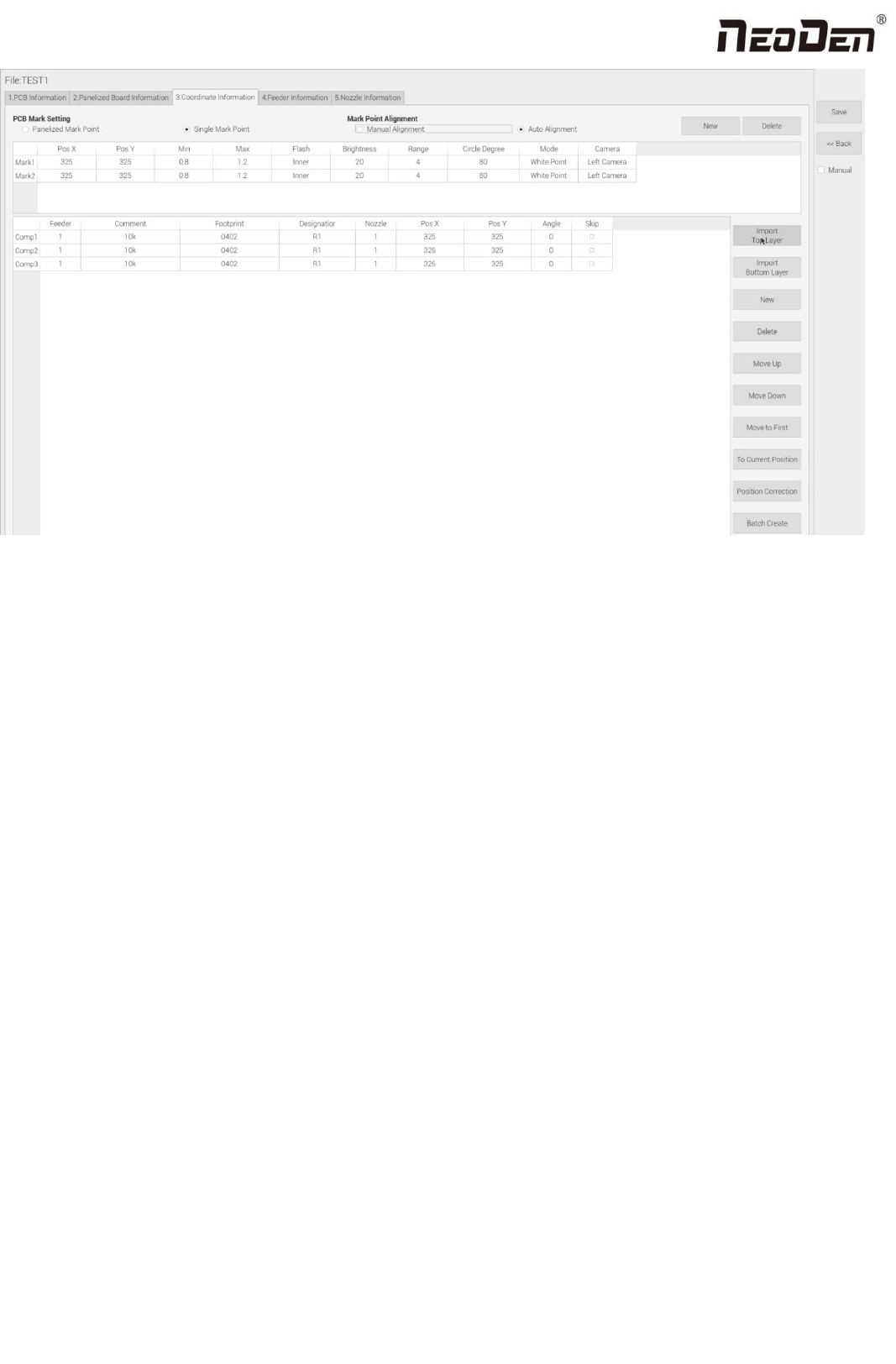

Function: display the information and mounting order of components. The components’ quantity and mounting information

can be added through manual programming or importing files , see below figure:

Zhejiang Neoden Technology Co., Ltd

4.2.1 Operation introduction of component list

1.Manual programming

（1）Select manual programming;

（2）The component information list displays multiple rows of sample components. First, modify the sample components:

coordinate XY, click the position lock to enter the lock interface. According to the image presented by the Mark camera,

find the corresponding component and confirm the center position coordinates, click save.

（3）Fill in the information of component: Stack refers to which stack No. the component located; Nozzle refers to which

nozzle used to mounting the component; Specification refers to the component’s value; Footprint refers to the common

footprint name as 0402,0603,0805 etc; Skip setting includes true or false, false means keep mounting, true means skip

mounting this component. After finish all parameters’ editing, the setting of first component information finish.

（4）Click ‘New’ to add one row on the component list. The information will exactly copy from last row. Click align to find

the component’s coordinate. Then click save then edit other information such as name, value, footprint and angle etc. Keep

adding new component until the whole PCB finish. Please note that the stack and nozzle do not need to be edited manually.

It can be set through feeder setting interface with ‘Assign all sequentially’ button to assign the information to component list

automatically.

2.Import the processing file

（1）Export the component coordinate information through computer by choosing metric system CSV format to the USB

flash disk.
