Zhejiang Neoden Technology Co., Ltd

11.2 Installing tape and reel components

figure 1 figure 2

1. Making the feeder in open status to wait for installing the tape reel ①Lift up the feeder fixing handle；②Press the

material-sending handle with left hand ③meanwhile press the lamellule at right side of the feeder with your right hand；

loosen the material-sending handle, ensure the proper wrapped (see figure 1) then loosen the lamellule

2. Installing the tape and reel components: setting the reel on reel storage at the back side of the feeder, pull out

approximately 10cm length tape, separate the film and tape, then put into transfer storage (see figure 1).The tape should be

closely matched with the gear, and the film should pass through the upper denomination groove (see figure 2) through two

white guide wheels and then be sandwiched between two gears.

Fig 3

3. Finish installing tape and reel components.

Zhejiang Neoden Technology Co., Ltd

Fig 4

For 12mm,16mm width feeder, the feed rate can be adjusted by adjusting the parameters of the feed regulator.

11.3 Incorrect installation Samples：

1. Incorrect setting of reel in reel storage (see figure.5)

Fig5

2. The film is twisted, not tight enough, or the film is not between the white guide wheel and the black gear

3. Cautions: Strictly refer to the instruction manual to use the feeder, and non-standard operation is strictly forbidden

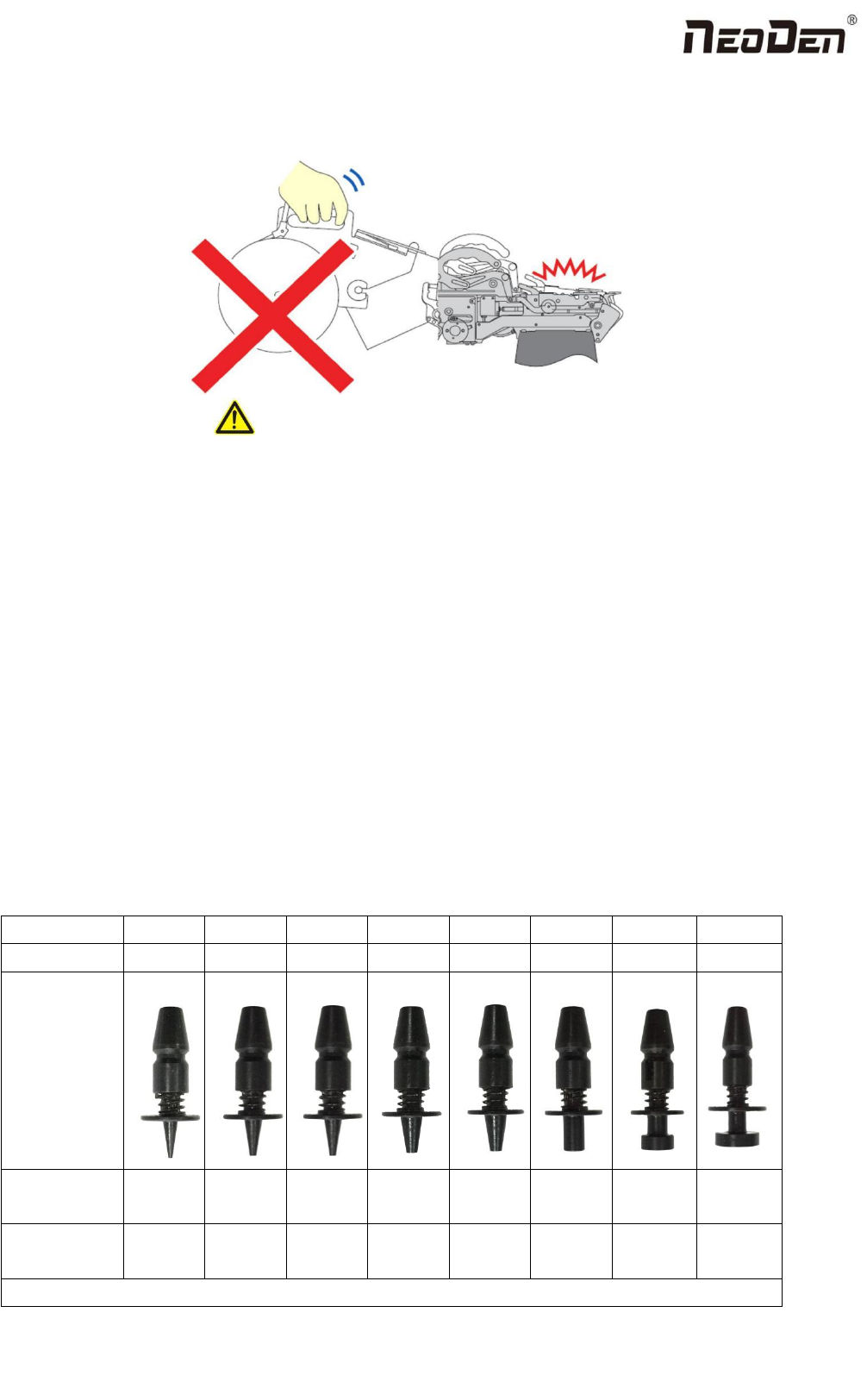

Warning: when installing the feeder, if feel the hand press is not strong, or loose match in place, then it is forbidden to

Zhejiang Neoden Technology Co., Ltd

operate. Otherwise will cause feeder floating in the operation and collision problem. In case of this situation, please contact

the after-sales department of our company

Warning: when installing the feeder on the equipment, make sure there is no foreign matter on

the feeder fixed plate, and make the bottom surface of the feeder fully fit with the fixed plate. The handle is the main way

to lock the feeder, so pls pay attention to protect this part. (Note:Don’t move the feeder while the equipment is running,

or it may cause collision problem.)

11.3.1 Nozzle

The size of the nozzle

Please choose nozzles according to the shape and size of components.

Table1-1 Nozzle

Type

Regular

Model

CN030

CN040

CN065

CN100

CN140

CN220

CN400

CN750

Illustration

External

Diameter

0.6mm

0.8mm

1.0mm

1.8MM

2.0mm

3.6mm

5.0mm

9.0mm

Inner

Diameter

0.3mm

0.4mm

0.7mm

1.0MM

1.4mm

2.2mm

4mm

7.5mm
