User-Manual-NeoDen9-PNP-machine.pdf - 第7页
7 Zhejiang Neoden T echnol ogy Co., Ltd Figure4- X-axis Be am Figure5 - Main Placement Head Cam era
6
Zhejiang Neoden Technology Co., Ltd
1.3 Working Area Structure
Figure 3- Top view of main mounting area
7
Zhejiang Neoden Technology Co., Ltd

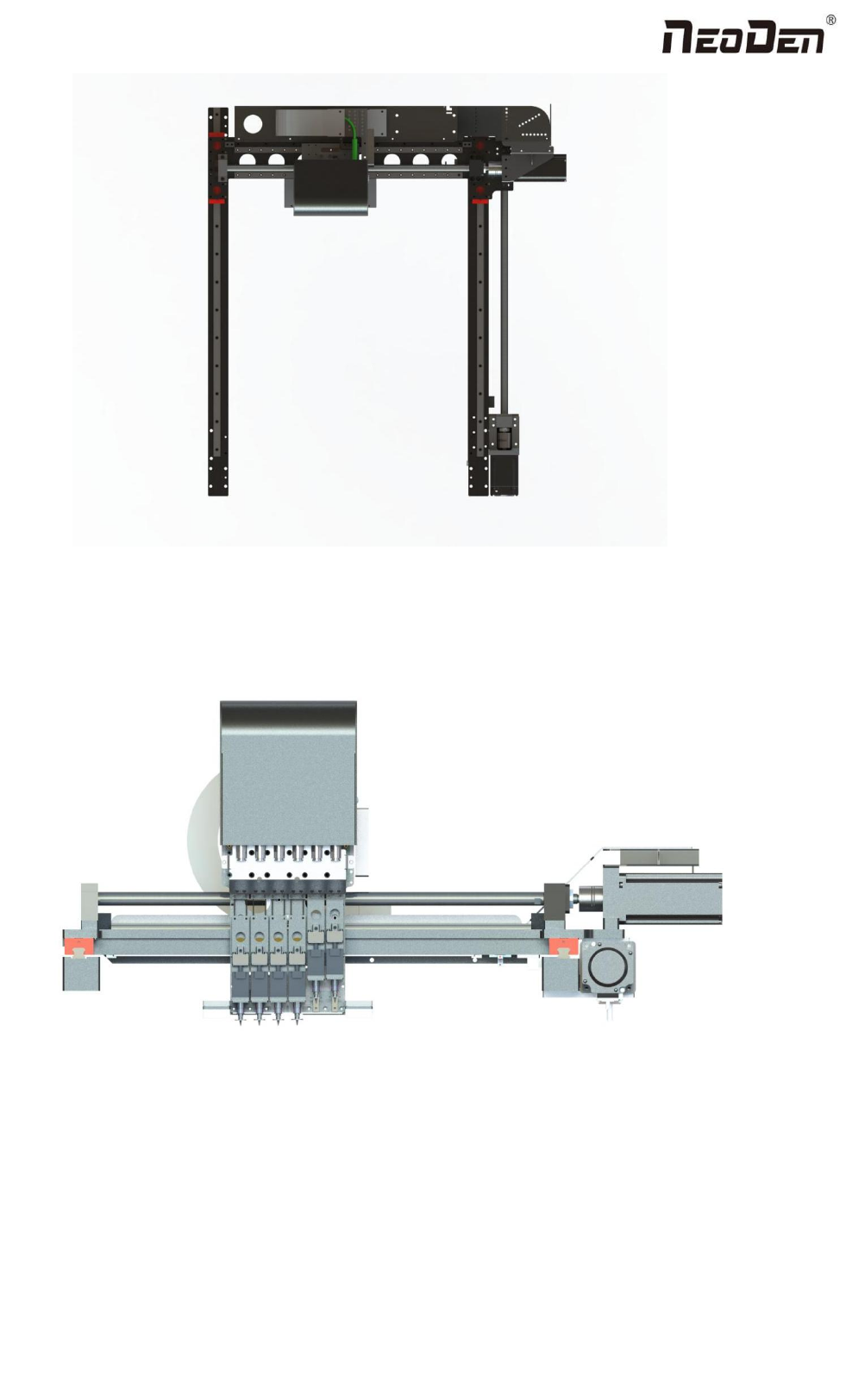

Figure4- X-axis Beam
Figure5- Main Placement Head Camera
8
Zhejiang Neoden Technology Co., Ltd

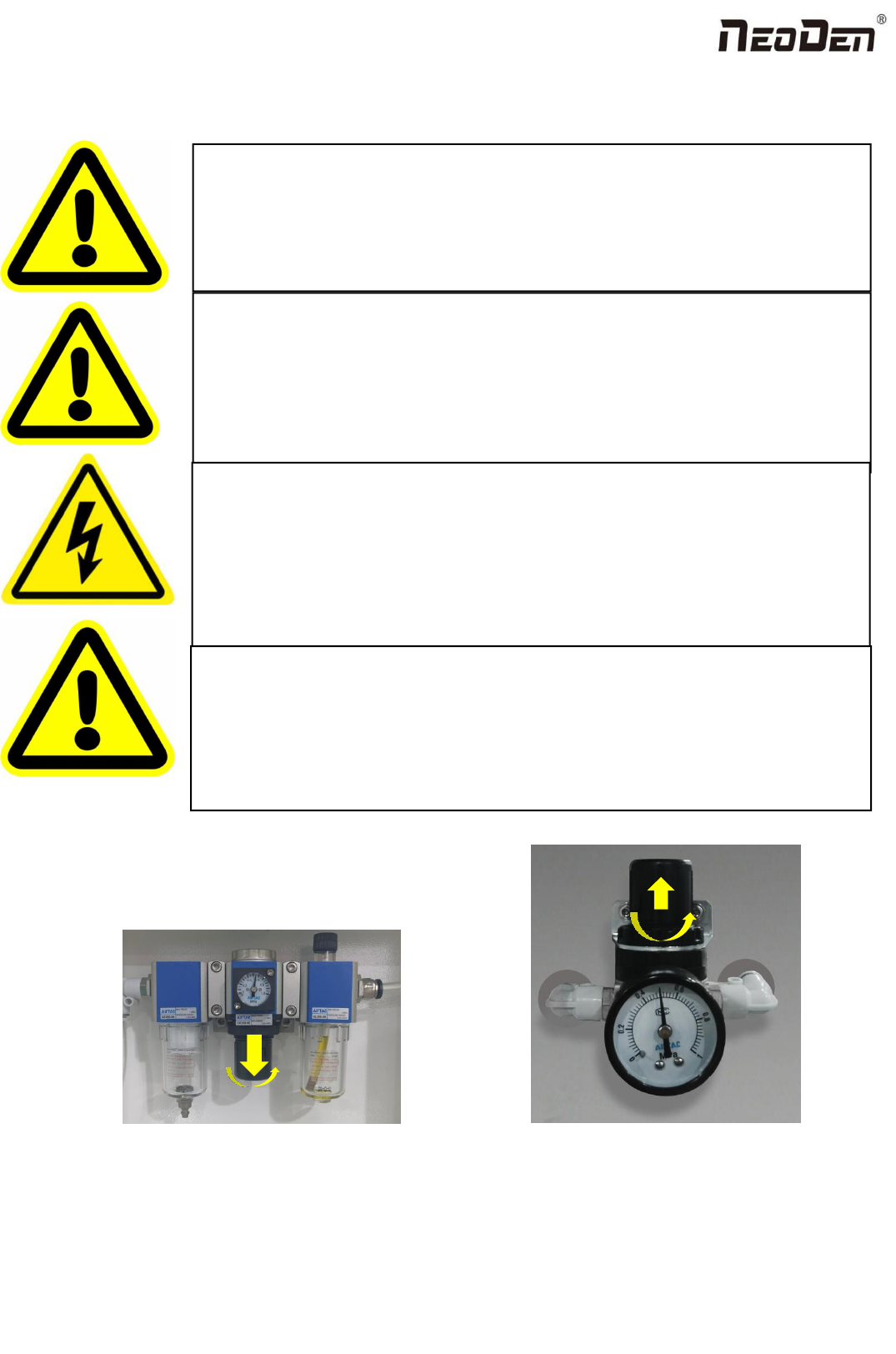

1.4 Important Notice
Figure 6-The air supply of the equipment shall not be less than0.55MP Figure 7- Feeder Pressure 0.5MP
Remark: At 0.55MPA pressure input, the air consumption of the machine is 12L/min. It is recommended to use a
compressed airtank of no less than 70L.
Warning of failure risk of camera identification，please referring to Figure 3 and
Figure 5：The following parts are forbidden to touch and impact
Front IC Camera Back IC camera Left mark camera Right mark camera
Warning of accuracy failure risk, refer to Figure 3: The following components are
prohibited from touching and impacting.
Return to zero column
For the risk of accuracy failure, refer to Figure4: When manually moving XY, it must
be carried out on the X-axis beam moving point;
Warning of electric shock, be sure to follow the requirements below：
Connect the input power supply that meets the requirements of the equipment, the
electrical interface of the machine to the ground must be effectively grounded；
Any time you enter the case and stick to the head for maintenance, you need to shut
down
Warning of equipment life reduction，be sure to follow the requirements below：
When installing the equipment, the equipment must be leveled；
Correct shutdown: shut down the operating software and the system before turning off
the main power switch；
