31
Zhejiang Neoden Technology Co., Ltd
brightness reason)
Feed test: feeding component, this is used to test if the feeder works normally.
Size measurement: after setting the pick position and pick height and selecting the nozzle, click the button “size
measurement”, the machine will measure the length and width of component automatically. If the size is correct, click
the button “size confirmation”, the length and width data will be synchronized to size information in feeder setting
interface.
Size information: If you input the length and width of the component,the image taken by flying camera will be
identified and recognized with the corresponding pixel. Note: For special thick component, you must input the
thickness! User can choose whether to click “open size recognition” according to their own requirement. If “open size
recognition” is clicked, the machine will throw the component and pick again when working if the component size is
not in corresponding with setting size information.
After above feeder information setting is finished, click “feeder assign to component”, then component list will be updated
accordingly. Click “save”and “back”. All the procedures are finished.

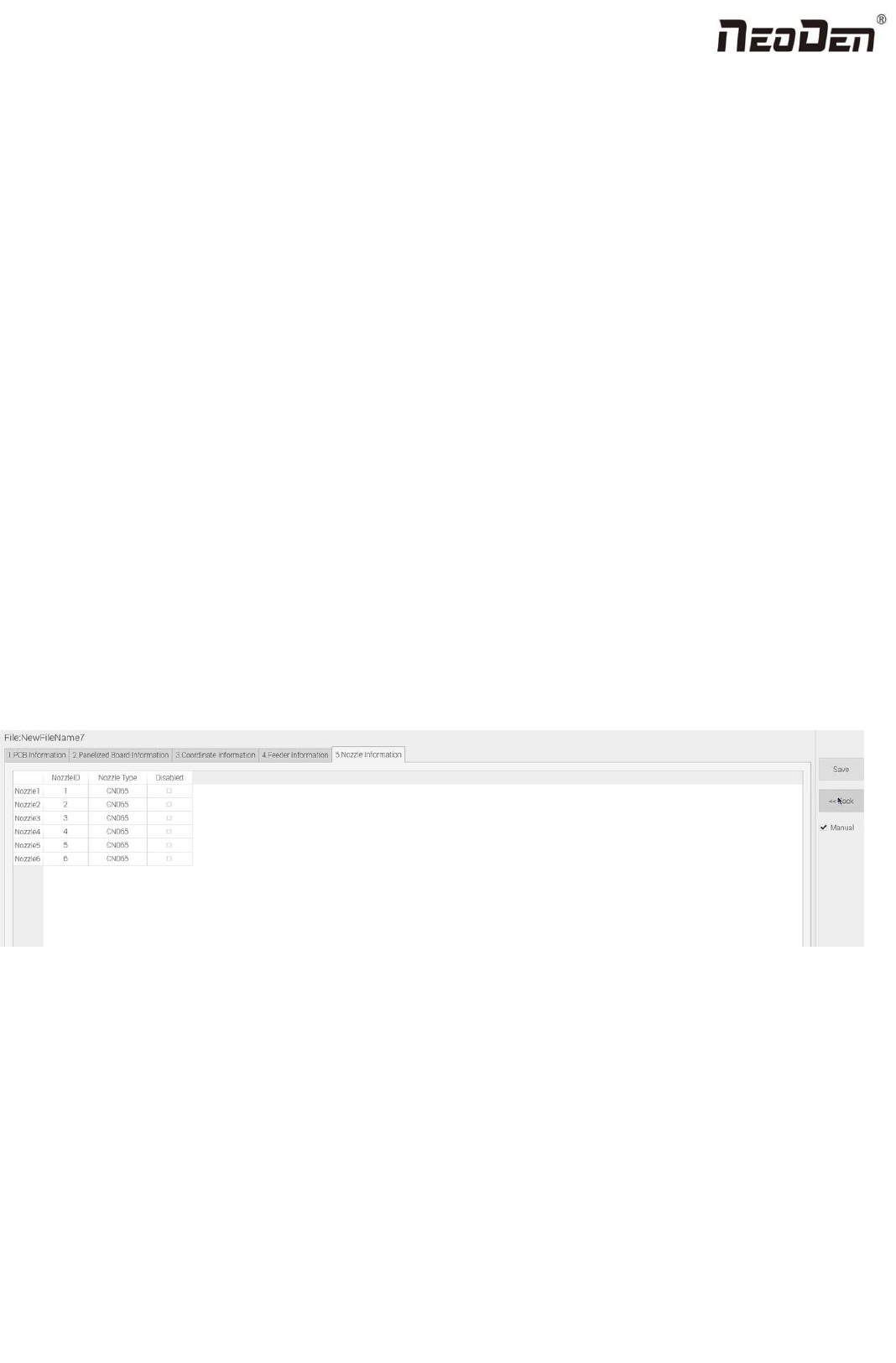

6. Nozzle Information
Below records the nozzle type of nozzle No.1-No.6. When replacing the nozzle, just replace the nozzle according to the file
recorded nozzle type.
7. Assembly Interface

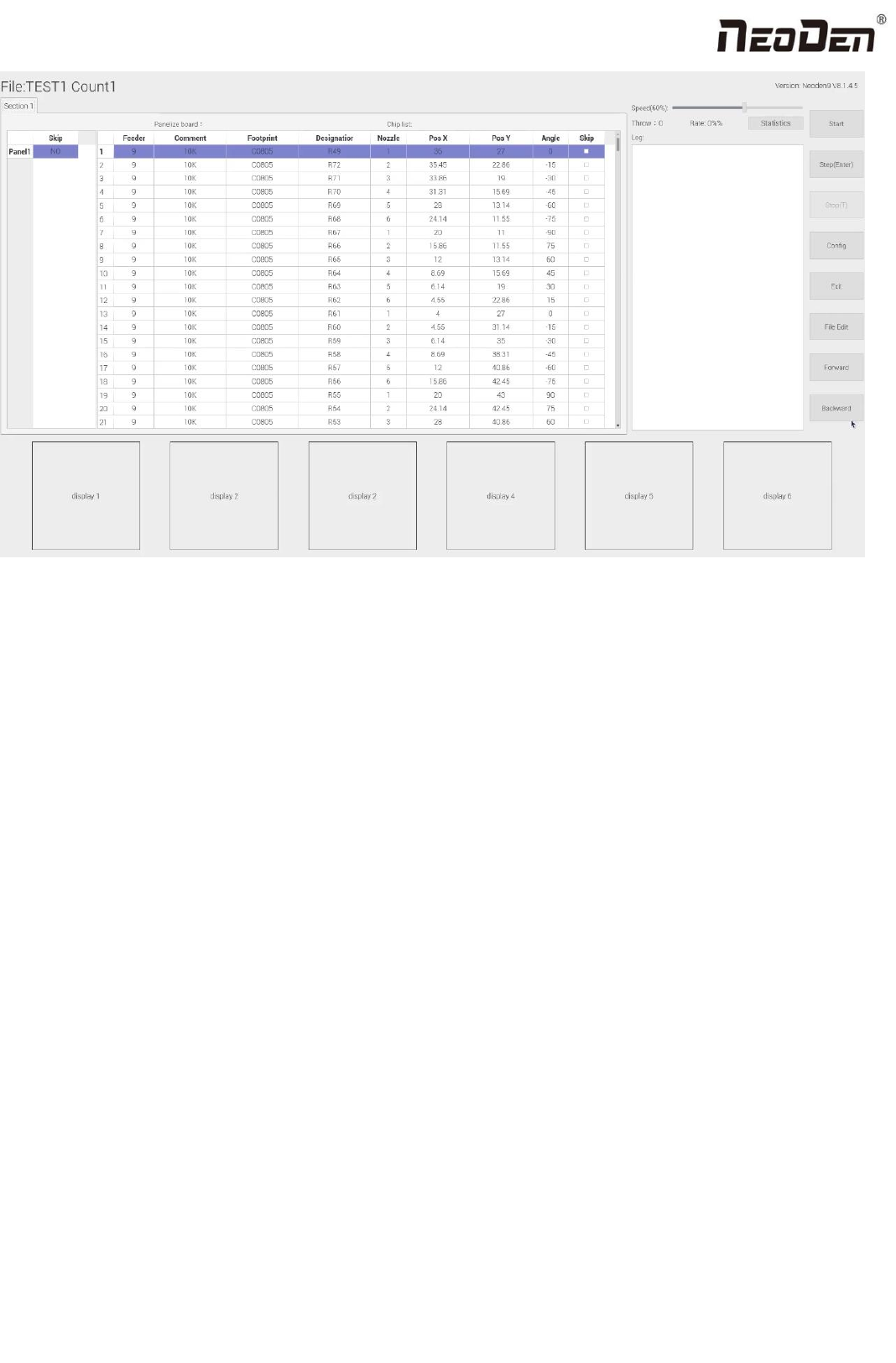

Choose the programmed file in file listed interface, click “Mount”, it will go into assembly interface as below:
32
Zhejiang Neoden Technology Co., Ltd
(1) Left part is detailed component list, you can get a real-time assembly situation with the varying of the highlight
blue area;
(2) Right top part shows the current assembly speed, you can drag the scroll bar to adjust it(the max is 100%);
(3) Throw and Rate will make a statistics for thrown components and you can check each feeder’s component pick
failure rate and get the information that which kind of component is easily picked failure, then find solution to
improve it.
(4)Log will show some informations like rate of throw component, current average speed and quantity of components
which have been assembled under the current file.
(5)The bottom side 6 display windows are real-time feedback for component recognition images.
(6)Right side buttons’ introduction:
Start: machine starts the current file’s assembly procedure.
Step: operation for each single assembly procedure.
Stop: stop current assembly work.
Exit: after assembly is finished, please directly click this button and back to home interface.
File edit: if the component picking is failed several times or there is big deviation of placement accuracy, the operation
need to be paused. After analyzing the reason, you do not need to exit the assembly interface and just click “file edit”
to modify it. After the modifying is finished, save it and come back to assembly interface.

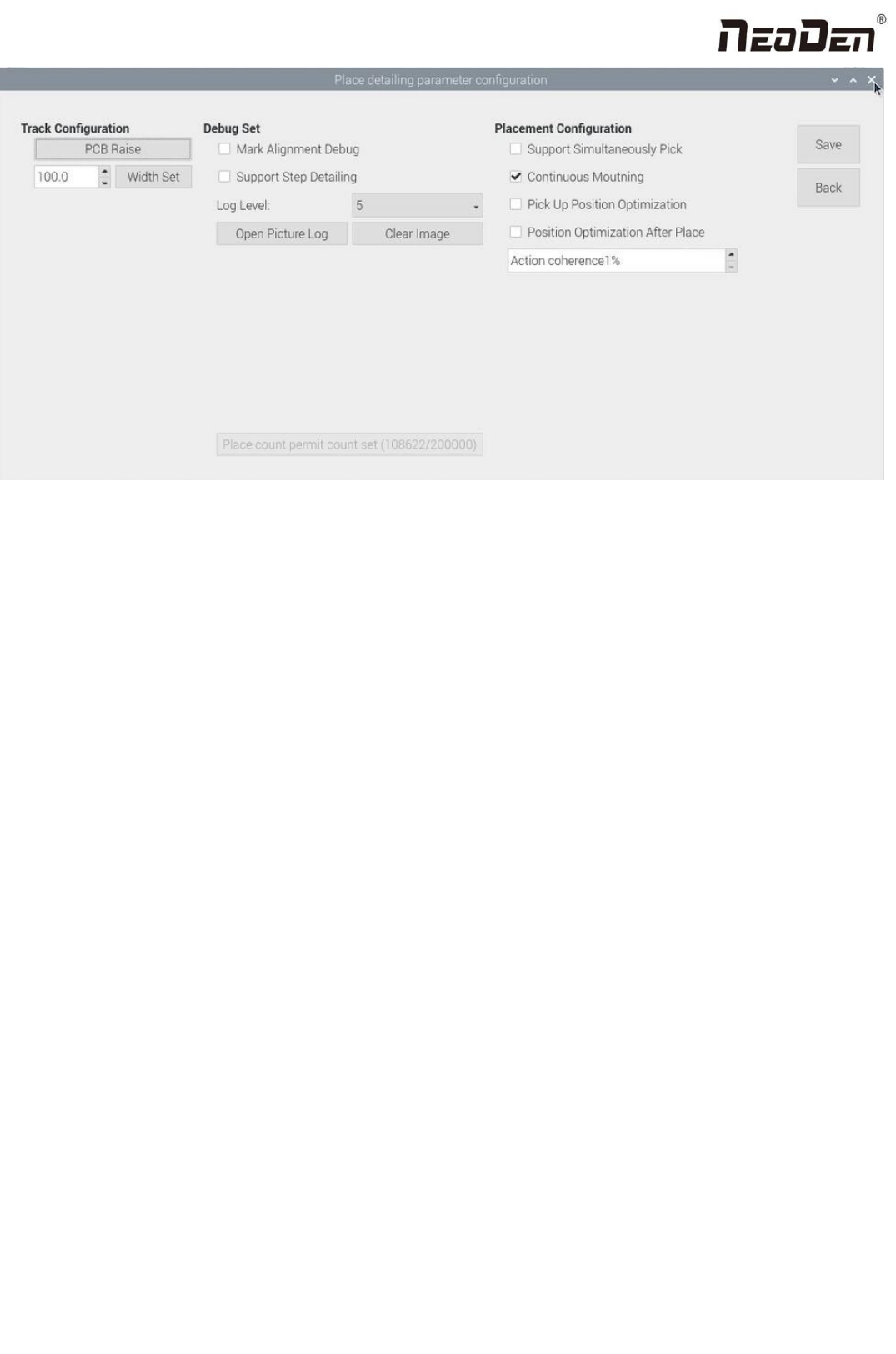

Config: press this button, a detailed configuration setting interface will pop out as below:
33
Zhejiang Neoden Technology Co., Ltd
Configuration interface introduction:
Tracks configuration: the function of PCB Raise and Width Set are totally same as that in PCB Information interface.
Debug Set:
(1)Support step detailing: once this is clicked, every time you click “Step”, the machine will only execute one command.
This is strongly recommended for the first tial assembly procedure after the programming file is finished.
(2)Open picture log: after pressing this button, the file of stocking recognition photos will be opened, from which
recognition details of components can be checked.
Placement configuration:
(1)Support simultaneously pick: once this is clicked, the nozzles with same pick height will lower down to pick components
at the same time, which will greatly improve placement speed (It is recommended for component whose size is bigger than
that of 0603). For NeoDen9, the simultaneous pick nozzles are nozzle 1 and nozzle 4,or nozzle 2 and nozzle 5, or nozzle 3
and nozzle 6.
(2) Rail continuous mounting: this is for PCB continuously feeding to realize continuous automatic assembly operation.
(3)Pick up position optimization: once this is cliked, nozzle head can automatically optimize the pick position when picking
components( It is recommended only for small components ).
(4)Position optimization after placement: if this function is selected in the first time, it will directly come to position
correction interface after placement is finished. User needs to correct the position according to the actual placement
situation.After the correction is completed, machine will place the components according to the corrected position when the
placement is performed again.
