Major Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 109
Star
5.7.3.3 Star
NOTICE
You will need to dismantle the front section of the head for this maintenance work.
CAUTION! Make sure that no dirt or grease gets
into the vacuum channels.
► Wipe the star using a lint-free cloth.
► Moisten a lint-free cloth with ISOFLEX TOPAS NCA
52. Use this to grease the running surface (1) of the
star brake, so that a thin film of grease is present.
Remove any excess grease visible with a lint-free
cloth.
CAUTION! Take care not to damage the sleeve
retaining springs in the segments.
Do not push the cottonwool bud into the segment as far
as the retaining spring otherwise the retaining springs
may be pulled out.
► (1) Carefully clean the segments using a cottonwool
bud moistened with ethanol.
► (2) Remove any visible dirt around the segments.
► Remove the valve plungers.
► Clean the valve casing using a cottonwool bud
moistened with ethanol.
► Then clean all around the valve casings.
Major Maintenance
Maintenance Tasks for C&P6/12 Head Performing Maintenance Tasks
110 Maintenance Manual SIPLACE X Series
Distributor (back part of head)
5.7.3.4 Distributor (back part of head)
NOTICE
You will need to dismantle the front section of the head for this maintenance work.
► Carefully remove the distributor together with the two
O-rings. For removal and installation details, read the
service manual for the respective machine.
1. O-ring vacuum distributor 3*1,2 NBR 70 B
[00320057-xx]
2. O-ring for distributor 8*1 NBR 70 B [00201179-xx]
► Carefully remove the two O-rings.
► Clean the O-rings and then grease these slightly with
UNISILKON L250L.
► Check the distributor for damage. If it is damaged
replace it with a new one.
► Wipe the distributor using a lint-free cloth moistened
with ethanol.
NOTICE! The front part of the distributor (the
side without the ball catch) may also be softened in
ethanol.
► Blow through the distributor with compressed air.
► (1) Check the ball catch for ease of movement.
Replace the entire distributor if it does not move
easily.
► Place the clean distributor and the lightly greased O-
rings on a clean surface.
Major Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 111
Star brake
5.7.3.5 Star brake

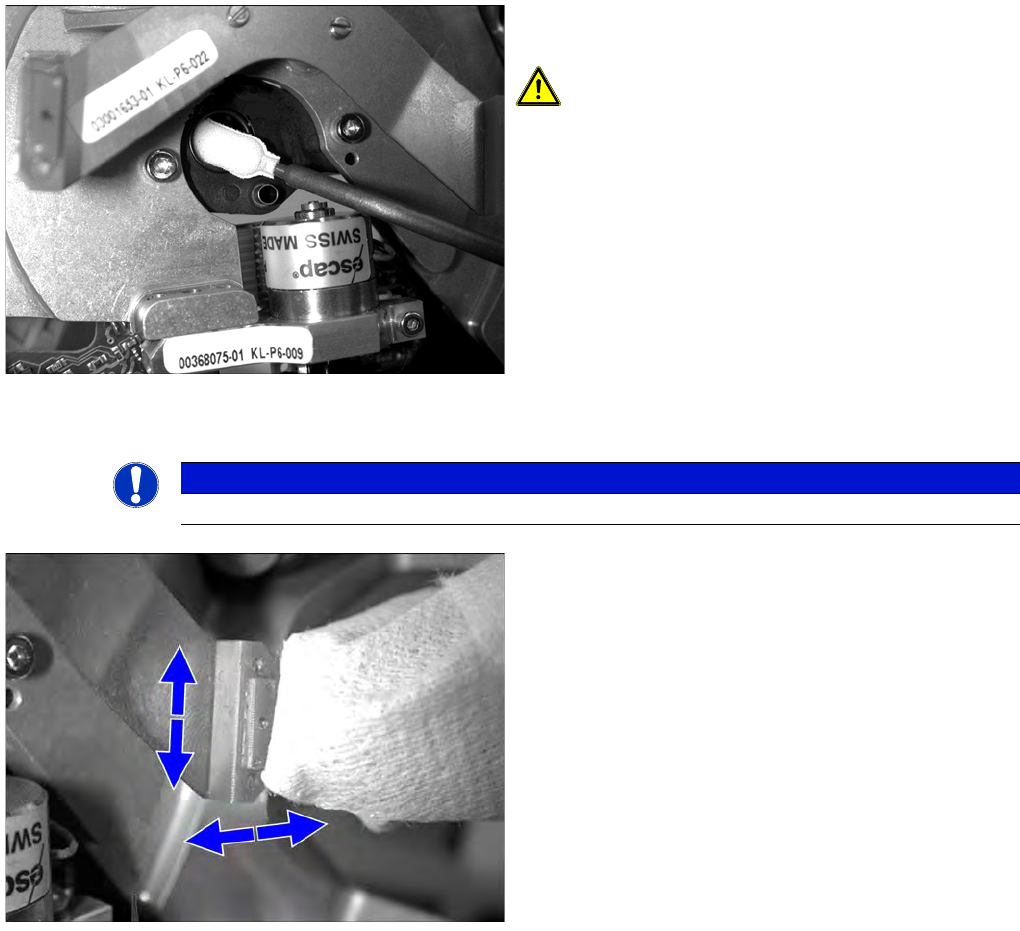

► Clean the distributor seat using a cottonwool bud
moistened with ethanol.
CAUTION! Make sure you do not push dirt into
the vacuum opening with the cottonwool buds.
NOTICE
You will need to dismantle the front section of the head for this maintenance work.
► Check the star brake for damage and to ensure that
it is working correctly.
► Wipe the star brake with a dry lint-free cloth. Make
sure you remove all grease residues.
► Fill each of the three small holes in the star brake with
ISOFLEX TOPAS NCA 52.
► Remove excess grease with a lint-free cloth.
► Apply a thin film of grease to the surface of the star
brake.
