Minor Maintenance Maintenance Tasks for the Componen t Feed Device Performing Maint enance Tasks 38 Maintenance Manual SIPLACE X Series Greasing the Centering St rip on the Component Trolley for X Fee der Modules 4.3.3.2…
Minor Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for the Component Feed Device
Maintenance Manual SIPLACE X Series 37
Maintenance Tasks for the Component Feed Device
4.3 Maintenance Tasks for the Component Feed Device
Consumables, Spare and Wear Parts, Tools
4.3.1 Consumables, Spare and Wear Parts, Tools
▪ SIPLACE cleansing tissue [00315253-xx]
▪ Protective latex gloves [00372972-xx]
▪ ESD wristband [00320279-xx]
▪ Oil stone / Elasto abrasive cleaning agent
▪ UNISILKON L250L [00310259-xx]
▪ Rust prevention spray WD40, 400 ml [00325833-xx]
▪ Brush [00378523-xx]
Preparatory Steps
4.3.2 Preparatory Steps
► Move the changeover tables out of the machine.
See also
1.2 Preparatory Work... [ ➙ 11]
Performing Maintenance Tasks
4.3.3 Performing Maintenance Tasks
Checkin g and Gre asing the Bearing o n the Component Trolley fo r the X Feeder Mod ules
4.3.3.1 Checking and Greasing the Bearing on the Component Trolley for the X Feeder Modules
NOTICE
Grease the engaging pins
If the component trolley is frequently undocked, we recommend that you grease the engaging
pins.
► Grease the engaging pin (1) with a SIPLACE
cleansing tissue.
► Grease the hooks (2) on both sides of the component
docking unit (2 on each side) with a SIPLACE
cleansing tissue.
► Grease the rollers (3) on both sides of the
changeover table (2 per side) with a SIPLACE
cleansing tissue.
► Repeat these steps at all locations and on all
component trolleys.
Minor Maintenance
Maintenance Tasks for the Component Feed Device Performing Maintenance Tasks
38 Maintenance Manual SIPLACE X Series
Greasing the Centering St rip on the Component Trolley for X Feeder Modules
4.3.3.2 Greasing the Centering Strip on the Component Trolley for X Feeder Modules
Greasing the Plunger Pins on the Component Trolley for S Feeder Modules
4.3.3.3 Greasing the Plunger Pins on the Component Trolley for S Feeder Modules
► Spray the centering strip (1) with a thin film of "Oil
spray Surface Shield" [00328575-xx]. Pay close
attention to the holes in the centering strip.
► Then wipe the centering strip with a lint-free cloth.
► Repeat these steps at all component trolleys.
NOTICE
Undocking many times
► Perform this task if the component trolley is undocked on a frequent basis.
► Dock out the component trolley.
► Greas the plunger pins (1) of the change over table
insert with a brush and UNISILKON L250L.
► Grease the plunger pins (2) of the ODU connector on
the component trolley docking unit with a brush and
UNISILKON L250L.
► Dock in the component trolley once more.
Minor Maintenance
Performing Maintenance Tasks Maintenance Tasks for the Component Feed Device
Maintenance Manual SIPLACE X Series 39
Removing an d Preserving th e Magnetic Stri p on the Com ponent Troll ey for S Feeder Mo dules
4.3.3.4 Removing and Preserving the Magnetic Strip on the Component Trolley for S Feeder Modules
► Return the feeders to the feeder area.
► Clear the feeder area.
► Remove any loose components from the component
feeder table using the vacuum cleaner.

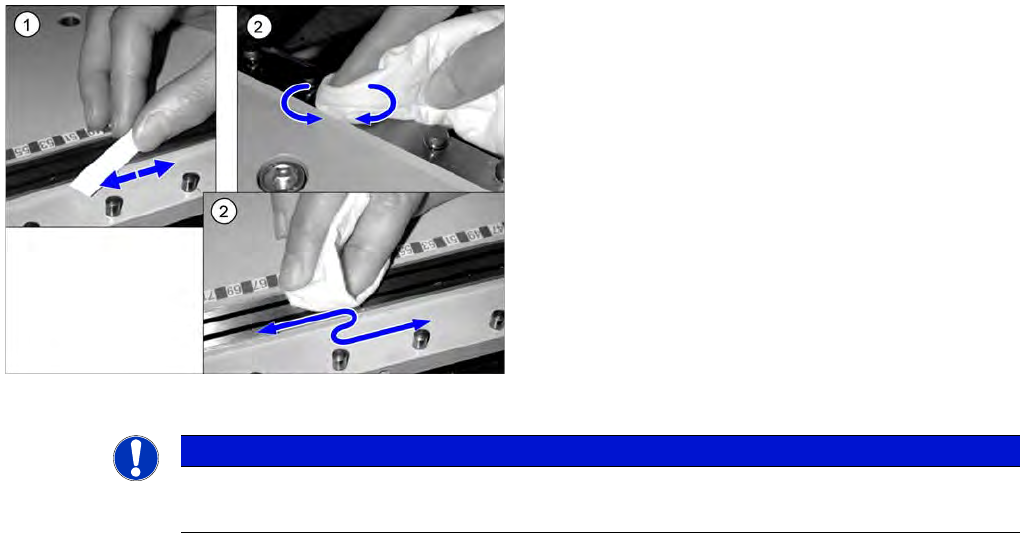

► (1) Use a whetstone to remove any bumps on the
magnetic rail.
► (2) Preserve the feeder area using a lint-free cloth
sprayed with WD40.
► Vacuum up any loose components from the tape
container and remove any unwanted stickers and
adhesive tape.
NOTICE
Pay attention to location and connection
► Make sure that each feeder is in the correct location and is connected properly.
