Major Maintenance
Overview of Lubrication Points Maintenance Tasks for CPP Head
Maintenance Manual SIPLACE X Series 97
Overview of Lubrication Points
5.6.3 Overview of Lubrication Points
Star bearing
24 x 2 µl Isoflex Topas NCA 5051 (green combitip) into
star bearing
DP segment guide
2 x 2 µl Lubcon Thermoplex ALN 1001/00 (blue combitip)
per ball groove at each segment
Driver bearing
1 x 1 µl Klüberalfa DH 3-100 (black combitip)
per driver bearing
Major Maintenance
Maintenance Tasks for CPP Head Performing Maintenance Tasks
98 Maintenance Manual SIPLACE X Series
Performing Maintenance Tasks
5.6.4 Performing Maintenance Tasks
Oiling th e Z Axis Lin ear Guidance
5.6.4.1 Oiling the Z Axis Linear Guidance
► For this maintenance task, use the blue combitip with Thermoplex ALN 1001/00.
► Set the multipette to 4 µl.
Z linear guide
2 x 4 µl Lubcon Thermoplex ALN 1001/00 (blue combitip)
per ball groove
Support roller
1 x 1 µl Klüber oil GEM 1 220 N (yellow combitip) on the
supporting roller

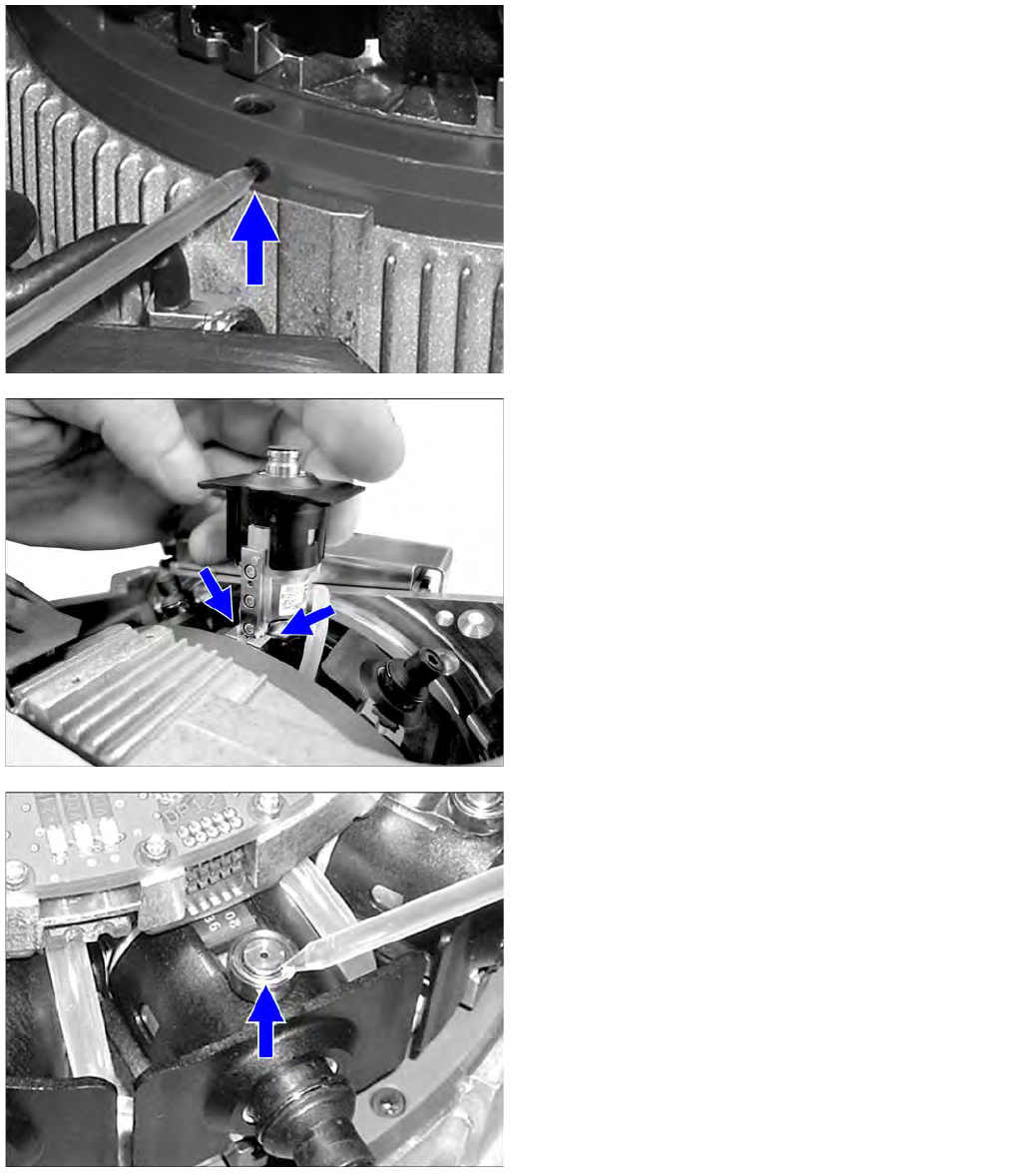

► Apply 4 µl of lubricant to the left and right sides of the
guide track and move the Z axis approx. 5 times
manually in and out.
► Apply another 4 µl of lubricant to the left and right
sides of the guide track and move the Z axis approx.
another 5 times manually in and out.
► A total of 2 x 4 µl must be applied to each guide track.
Major Maintenance
Performing Maintenance Tasks Maintenance Tasks for CPP Head
Maintenance Manual SIPLACE X Series 99
Oiling the Support Roller
5.6.4.2 Oiling the Support Roller
► For this maintenance task, use the yellow combitip with Klüber oil GEM 1 220 N.
► Set the multipette to 1 µl.
Oiling the DP Driver Bearing
5.6.4.3 Oiling the DP Driver Bearing
► For this maintenance task, use the black combitip with Klüberalfa DH 3-100.
► Set the multipette to 1 µl.
► Mark the first segment by removing a nozzle.
NOTICE! Lubricate via the service hole n the
back of the front plate. The front plate needs to be
removed for this.
► Press the Z axis up to the top stop. This gives you
access to the service hole.
► Insert the multipette into the service hole and apply
1 µl of lubricant to the supporting roller.
► Move the Z axis manually in and out approx. 5 times.
► Position the multipette on the top edge of the locking
pin and apply 1 µl of lubricant.
► Oil all driver bearings as described above.
► Fit the removed nozzle back into place.
