Major Maintenance Maintenance Tasks for C&P20A Head Difference Between C&P20 and C &P20A 78 Maintenance Manual SIPLACE X Series Mainten ance Task s for C&P20A Hea d 5.5 Maintenance Tasks for C&P20A He…
Major Maintenance
Performing Maintenance Tasks Maintenance Work on the Gantry
Maintenance Manual SIPLACE X Series 77

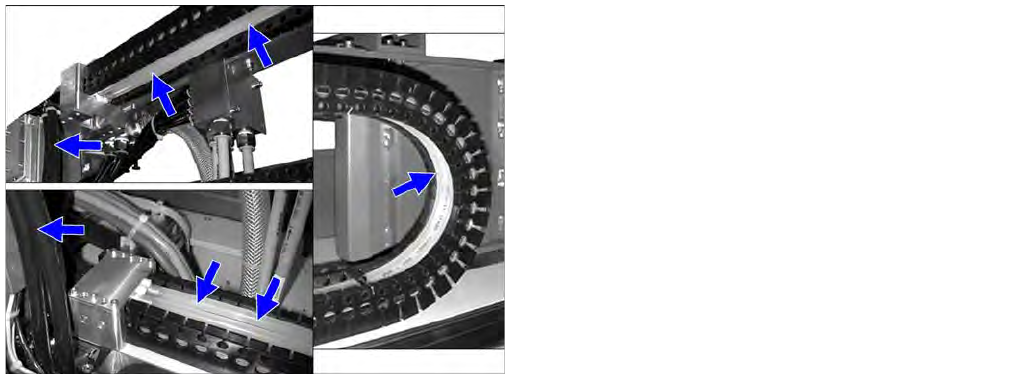

► Check the cooling air hoses for damage, particularly
in the vicinity of the cooling hose fixings in the trailing
chain. If the cooling air hoses are damaged, replace
them. For removal and installation details, read the
service manual for the respective machine.
► Fit the cover plates again.
► Repeat these steps for all cooling air hoses on all
gantries and replace the cooling air hoses where
necessary.
Major Maintenance
Maintenance Tasks for C&P20A Head Difference Between C&P20 and C&P20A
78 Maintenance Manual SIPLACE X Series
Mainten ance Task s for C&P20A Hea d
5.5 Maintenance Tasks for C&P20A Head
Difference Between C&P20 and C&P20A
5.5.1 Difference Between C&P20 and C&P20A
Application
Only C&P20A heads are used in SIPLACE SX/DX machines.
X series machines can use both C&P20 and C&P20A heads.
Differentiation criteria
CAUTION
Do not mistake the C&P20A head with the C&P20 head, as this requires different maintenance!
NOTICE
C&P20, C&P20A
Unless otherwise specified, all references made apply equally to the C&P20A head and to the
C&P20 head.
SX/DX-Series X Series
C&P20 No YES
C&P20A YES YES
Type
The C&P20A head housing has a label with the head type
on it (1).
The C&P20 does not have this label.
Linear guidance Z axis
The C&P20A head has a blue dot on the Z axis rotor (1).
▪ Z drive assembly for C&P20 [03005155-xx]
▪ Z drive assembly for C&P20A [03058631-xx]
Major Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for C&P20A Head
Maintenance Manual SIPLACE X Series 79
Consumables, Spare and Wear Parts, Tools
5.5.2 Consumables, Spare and Wear Parts, Tools
▪ "Starter kit for maintenance CPx and TwinHead" [03071171-03].
▪ Universal placement head mounting rack [03056231-xx]
▪ Set of Allen wrenches
▪ Open-jawed spanner, 10 mm
▪ Brush (free of grease and solvent)
▪ Lint-free cloths [03082092-xx]
▪ Optics cloth/lens cloth
▪ Hold circuit assembly, if required [03005123-xx]
▪ Silencer for C&P20, if required [03043707-xx]
▪ Second multipette, if required [00386154-xx]
▪ Cotton wool buds [00352931-xx]
▪ Service manual for your maschine:
SX1/SX2/DX1/DX2: [00196496-xx] (German), [00196497-xx] (English) or
SX4/DX4: [00196712-xx] (German), [00196713-xx] (English) or
X-Serie: [00194439-xx] (German), [00194440-xx] (English)
▪ User manual "insertion and extraction tool for filter disks, C&P20A" (item no.: 00195378-xx).
You will find all key tools and consumable materials for maintenance work on the TwinHead, CPP and
C&P20(A) heads in the "Starter kit for maintenance CPx and TwinHead" [03071171-03].
Segment guide
The C&P20A head has a blue line on the segment
guide (1).
▪ Segment guide on DP drive for C&P20 [03005109-xx]
▪ Segment guide on DP drive for C&P20A [03058627-
xx]
Driver bearing
The driver bearings (1) have different item numbers:
▪ DP drive driver bearing for C&P20 [03005109-xx]
▪ DP drive driver bearing for C&P20A from version 02
[03058627-xx]
