TRS Advanced Maintenance 46 Issue 2, Nov 14 15. Re-align the plastic belt guides (2 front , 2 rear) with the belt support as shown below.

Issue 2, Nov 14

TRS Advanced Maintenance

9. Tighten the Lock Nuts on both and of the center section rail clamp adjustment block

assembly.

10. Re-check gaps & Varni-Stop if OK.

11. Repeat the height setting procedure for the rear center rail section.

12. Replace the 4x locating plates by using 8 off M3x8 pan head screws.

13. Apply pink Loctite 222 to each screws re-fit and after fully tighten them, back off each

screw by ½ turn.

14. Unscrew & remove the Board Clamp Height Setting Blocks. (212649 x2).

View on Rail Clamp Adjustment Block Assembly

M4x8 Cap Head Screw

M8x0.75 Nut Lock

158932

Board clamp height setting

blocks (212649x2)

TRS Advanced Maintenance

Issue 2, Nov 14

15. Re-align the plastic belt guides (2 front, 2 rear) with the belt support as shown below.

Issue 2, Nov 14

TRS Advanced Maintenance

16. Check that the gaps between the 4 rail bearing tracks and their associated locating

dowels by using 0.05mm feeler gauge as a NOGO.

17. If 0.05mm feeler is GO, loosen the bearing rail fasteners, push the datum edge of the

bearing against the locating dowels, apply Pink Loctite to the fasteners and re-tighten,

torque to 1.5Nm.

18. Do NOT re-fit flat belts to the Centre Rail Sections at this time (store safely in work

area).

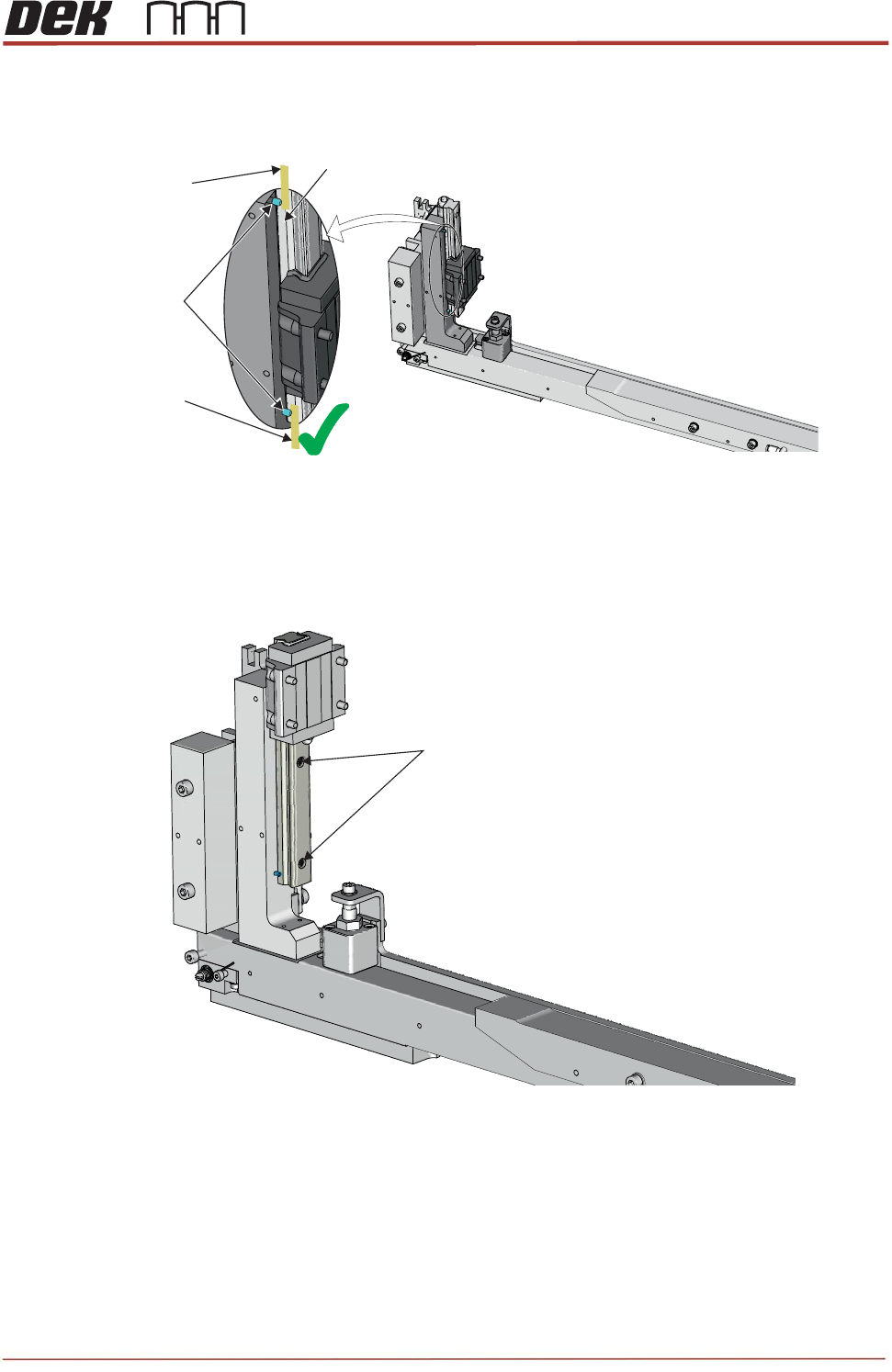

Dowel Pins

Rail Bearing Track

Partial View on Rear Rail

0.05mm

Feeler Gauge

0.05mm

Feeler Gauge

No Gap

M3 High Tensile

Cap Head Screws
