Issue 2, Nov 14 TRS Advanced Maintenance 51 35. Press the rail cap flat and tighten the 6 off M5x16 cap head clamping block screws to lock alignment bearing guide rods into position as shown below. 36. Press the Rail Cap…

TRS Advanced Maintenance

Issue 2, Nov 14

RAIL CAP FITTING:

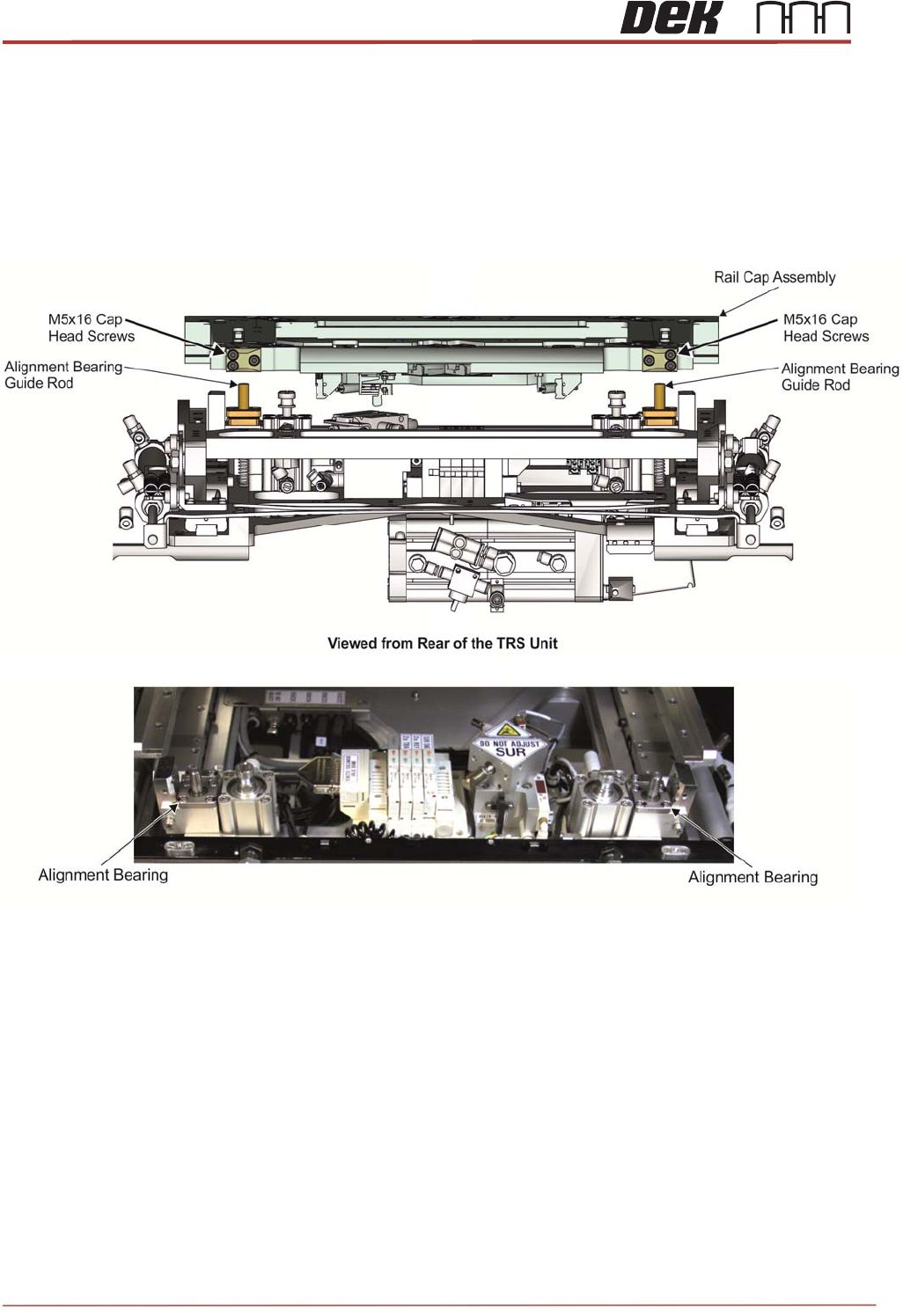

32. Undo (but do not remove) the 6 off M5x16 cap head screws at the rear of the rail cap as

shown picture below.

33. Carefully fit the Rail Cap assembly over the rails and locate the guide rod clamps at the

rear of the Rail Cap over the guide rods.

34. Lightly shake the rail cap to locate the locating plates.

Issue 2, Nov 14

TRS Advanced Maintenance

35. Press the rail cap flat and tighten the 6 off M5x16 cap head clamping block screws to

lock alignment bearing guide rods into position as shown below.

36. Press the Rail Cap flat and secure in the locations shown below using:

• 4off M4 x 25 Pan hd screws (700075)

• 2off M4 x 8 Sltd C/snk screws (700405)

• 2off M4 x 16 Pan hd screws (700045)

• 6off M4 crinkle washers (700610)

37. Fully tighten the fasteners before loosening them all by ½ turn.

M4x8 Countersunk

Screws

M4x8 Countersunk

Screws

M4x25 Pan Head Screws

(4 Positions)

M4x16 Pan

Head Screws

M4x16 Pan

Head Screws

View on Rail Cap Assembly

TRS Advanced Maintenance

Issue 2, Nov 14

38. Undo 3 off M5 cap head screws (do not remove the screws) from front rail support pad and

push the support pad upwards as far as it will go and tighten the 3 off M5 cap head screws.

39. Repeat the previous step for the rear rail support pad.

40. Lift the rail cap / rails slightly and place four height setting pins (212276) on the MEK

reference surfaces.

IMPORTANT: The top face of each pin MUST contact the underside of the Rail Cap and

NOT the face of either of the long bearing rails.

M5x12 Cap Head Screws

Front Rail Support Pad

View on Centre Section of the Transport Rails
