80. Gently push and hold down the alignment bearing guide rod until it bottoms out. Apply
Blue Loctite to the 3 off M5 cap head screws and torque load each screw to 4.9Nm,
ensure an even gap between the clamp and the rail cap.
NOTE
Ensure there is an even gap between clamping block and the rail cap as shown below.
81. With a 0.05mm feeler gauge, re-check that the height setting pins are still fully in
contact with the rail cap & MEK base.
TRS Advanced Maintenance
66
Issue 2, Nov 14
82. Check & adjust the height of the rail at tooling vane (RAT vane) to ensure the vane
will pass in / out sensor correctly.
83. Remove the height setting pins from under the rail cap before manually moving the
moving rail to home.
84. Re-fit the transport rail belts to the front and rear rails.
85. Slide the board clamp setting plate (212316) onto the transport rails and push the
guides to the plate to set the parallelism and tighten the screws. Repeat for the left
side.
Right Side Rear Rail
Centre Belt Guide
(4 Positions)
Board Clamp Setting
Plate
View on Right Side of the Printer
Issue 2, Nov 14
TRS Advanced Maintenance
67

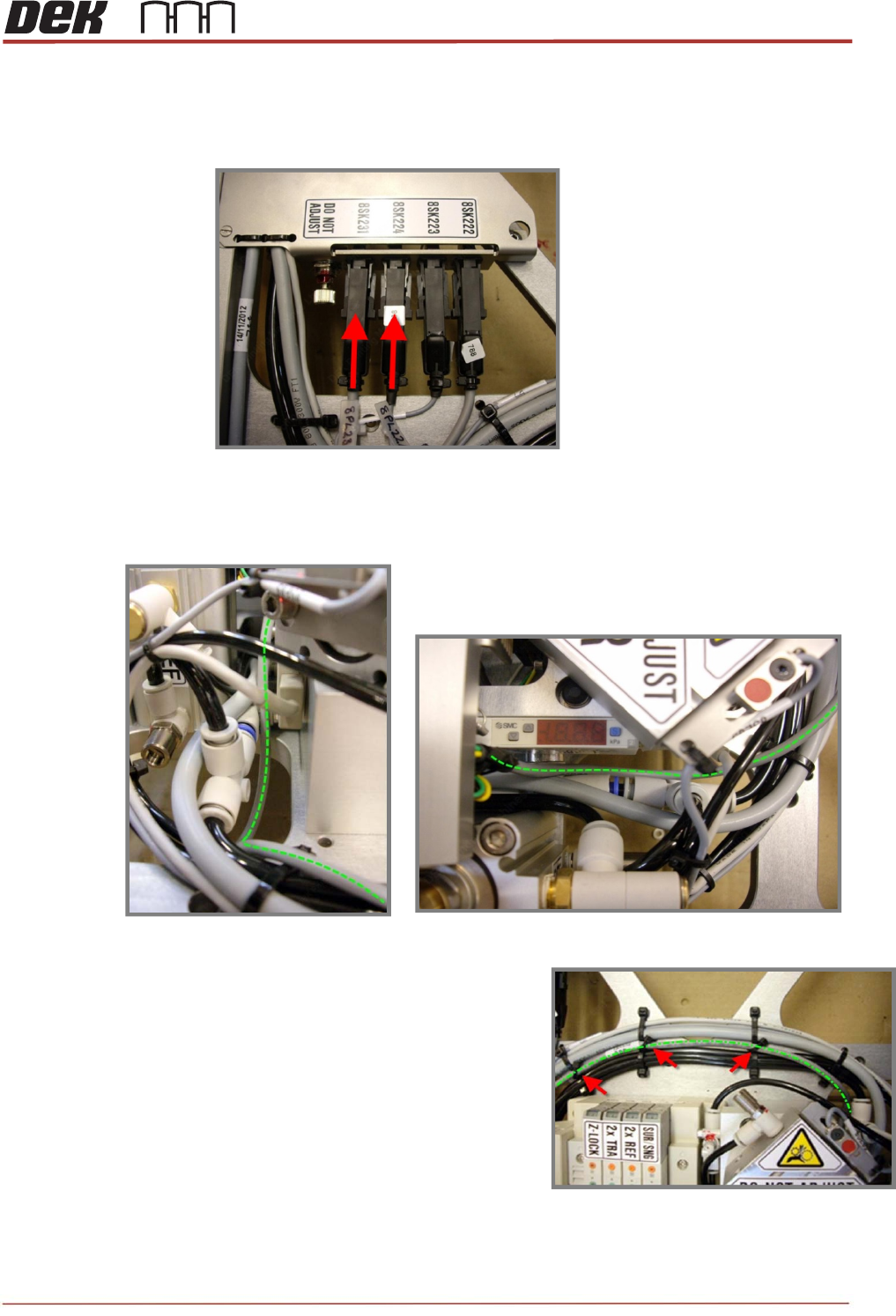

86. Connect the loom from the rear rail home sensor marked 8PL231 to the sockets on
the interface bracket as shown below.
87. The loom must sit between the pneumatic pipes and the sensor mount, ensure that
the cable is free to move up and down with the rail cap
88. Cable tie the loom in three positions along the
existing looms on the MEK base.
IMPORTANT: Keep the looms as low and flat to
the base as possible to avoid snagging when the
TRA cross-beam travels fully forward.
