2 Brief description
2.3 Machines of the SIPLACE TX V2-Series
Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
75
2.3 Machines of the SIPLACE TX V2-Series

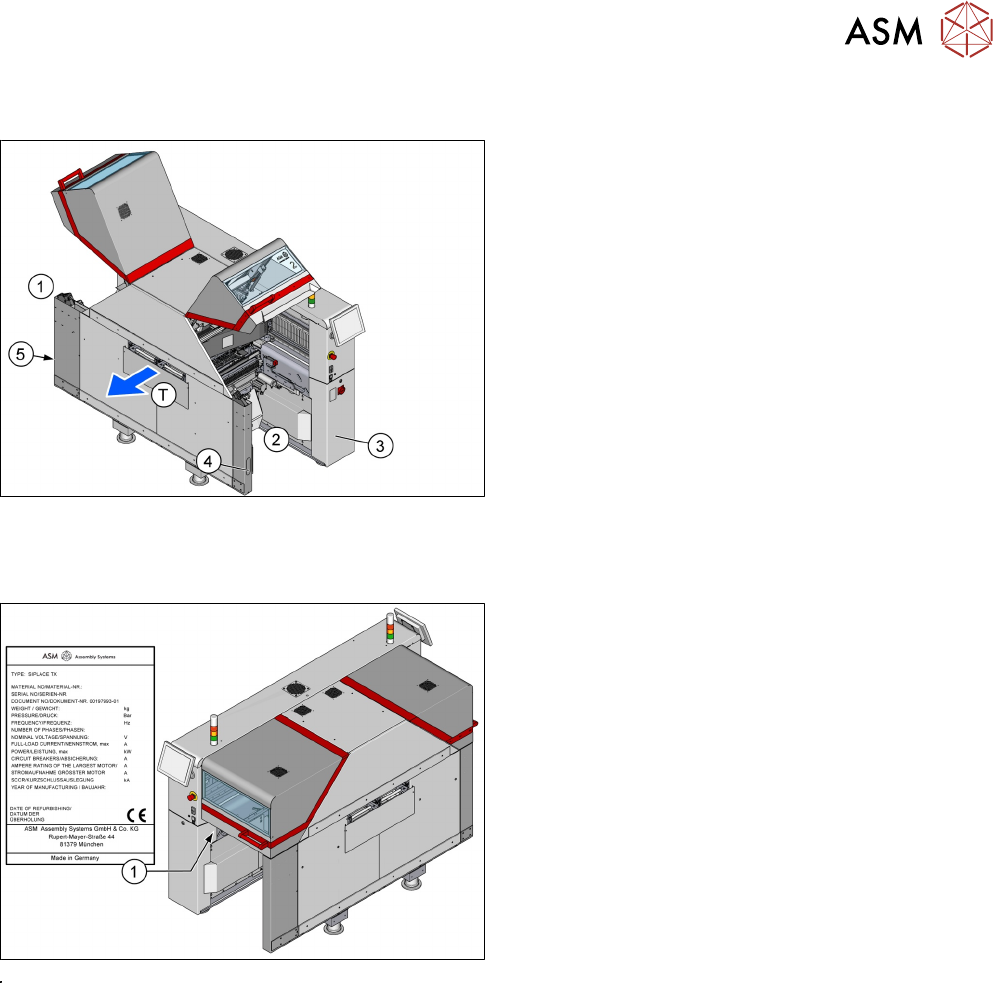

Fig.11: Overview of TX V2-Series machines
1. Location 1
2. Location 2
3. Power supply
4. Pneumatics
5. BoxPC (behind the waste tape chute)
T = transport direction
2.3.1 Serial number of the machine
Fig.12: Serial number
The serial number is printed on the typeplate(1) that
can be found on the inside of the machine frame in
location1.
2.4 Prerequisites
A stationary camera can be installed in all SIPLACETX1V2 and SIPLACETX2V2 machines.
SIPLACETX2i machines cannot be equipped with a stationary camera.
2.5 Restrictions
A stationary camera can be installed in location 1 only.
Only a stationary camera of type 25 (only possible with TH) or type 33 (possible with TH and CPP)
can be installed.
2 Brief description
2.6 Scope of Delivery
76 Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
2.6 Scope of Delivery
NOTICE
No additional parts are necessary if the following numbers are ordered for retrofitting a
stationary camera (IC or FC).
Retrofit Kit Stationary FC Camera SST25 [03172787-xx] (option for the TH head)
Quant-
ity
Designation Item no.
1 Stationary camera type 25 TH SIPLACE TX 00588101-xx
1 Cable set extension stationary camera 03148096-xx
1 Reject Box / Nozzle Station IC Camera V2 03162806-xx
1 Camera spacer plate cpl. TX V2 03158094-xx
1 Nozzle / ZP adjustment TH 15.2x15.2 03123022-xx
1 Adapter Assembly Nozzle Station TX V2 03169973-xx
1 Assy holder calibr. jig repository LOC4 03098073-xx
or
Retrofit Kit IC Camera SST33 [03172786-xx] (option for TH or CPP head)
Quant-
ity
Designation Item no.
1 Stationary camera type 33 CPP head SIPLACE TX 00588100-xx
1 Cable set extension stationary camera 03148096-xx
1 Reject Box / Nozzle Station IC Camera V2 03162806-xx
1 Camera spacer plate cpl. TX V2 03158094-xx
1 Adapter Assembly Nozzle Station TX V2 03169973-xx
1 Assy holder calibr. jig repository LOC4 03098073-xx
1 Nozzle station CPx cpl. / SX4a f JTF3 M 03106821-xx
2 Brief description
2.6 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
77
2.6.1 Stationary Camera Type 25 TH SIPLACE TX [00588101-xx]
Quant-
ity
Designation Item No.
1 CO camera stat. P&P (type25) 16x16 GigE 03105205-xx
1 Support plate FC 03077911-xx
1 ISO 8734 - 5 x 18 - A-ST 03015784-xx
4 ISO4762 - M6 x 20-A2-70 03042574-xx
2 DIN EN ISO 4026 - M6 x 50-45H 03106014-xx
2.6.1.1 Overview of Parts
Fig.13: Basic camera unit SST25
Basic camera unit SST25
Fig.14: Support plate
Support plate
2.6.2 Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
Quant-
ity
Designation Item no.
1 Component Camera, Stationary, P&P (Type 33) 55x45 03105198-xx
4 ISO 4762 - M 6 x 25-A2-70 03042575-xx
In addition, you must order:
●
Camera spacer plate cpl. TX V2 [03158094-xx]
●
Cable set extension stationary camera [03148096Sxx]
