3 Installation
3.4 Fitting the Stationary Camera Type SST33
94 Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
Fig.50: Connection for CAN bus cable
Connection for CAN bus cable (3)
Multiplexer (not in use) (4).
Fig.51: Connections on the machine
1. GigE cable W3: Extension camera bus stat.
camera [03148099-xx]
2. Power cable: Extension power stat. camera
W1[03148097-xx]
3. CAN bus cable W2: Extension CAN bus stat.
camera [03148098-xx]
Fig.52: Establishing electrical connections
► Run the cables (1), (2) and (3) from the camera
to the pneumatics feedthrough.
► Connect the cables.
NOTICE!
Make sure to connect the GigE cable correctly.
The multiplexer connection at the lower end of
the board is not used.
.
3 Installation
3.4 Fitting the Stationary Camera Type SST33
Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
95

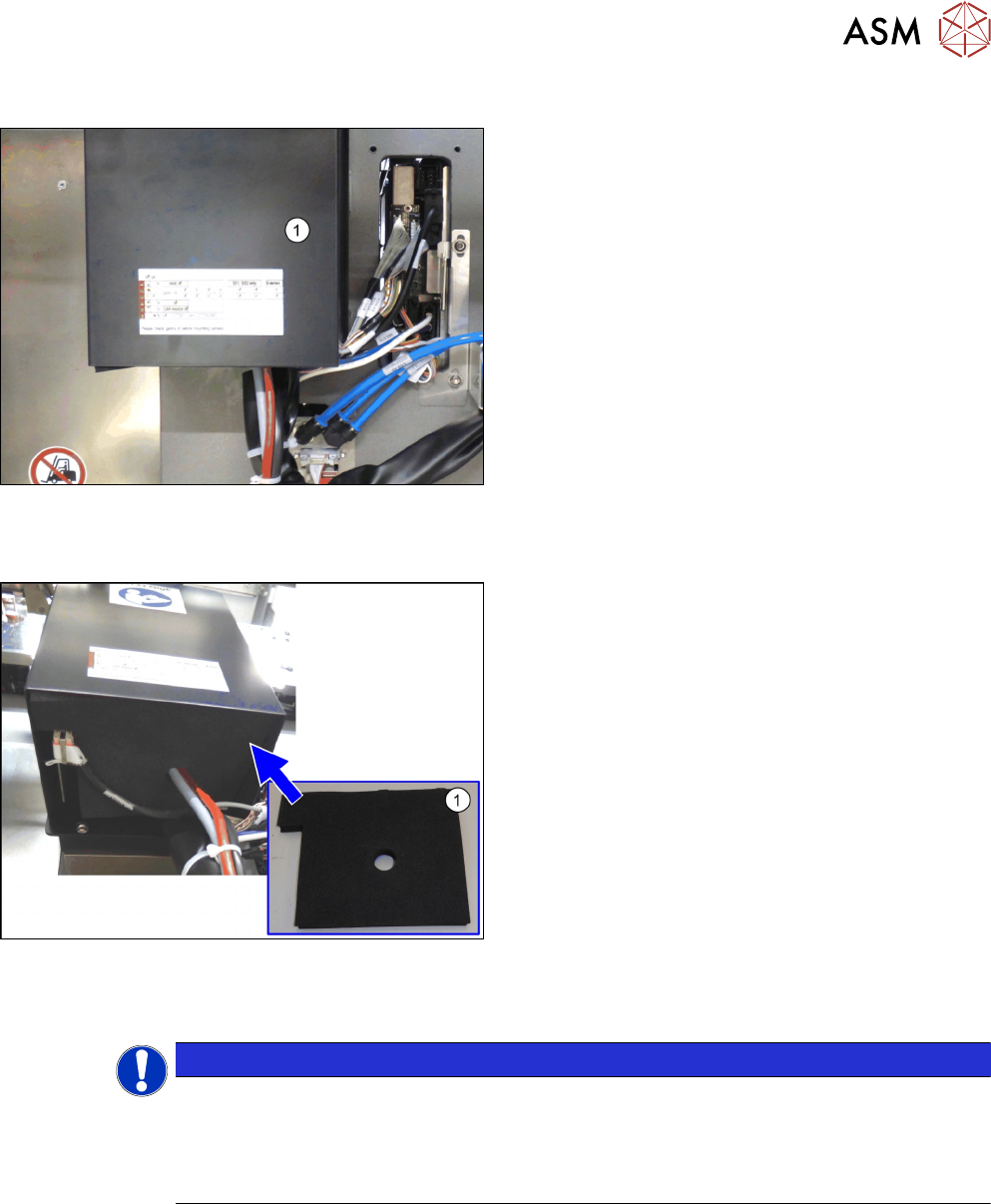

Hooking in the bottom cover
Fig.53: Hooking in the bottom cover (SST33 taken as example)
► Hook in the bottom cover(1) of the camera.
Inserting the dust cover
Fig.54: Inserting the dust cover (SST33 as example)
► Insert the dust cover made of foam plastic(1) into
the bottom cover.
Positioning the upper part and checking the installation height
NOTICE
The camera upper section has a fixed assignment to the camera lower section.
The camera upper section may not be used with another camera lower section. Both the
upper and lower sections are mechanically and electrically coordinated and may not be ex-
changed for use with other cameras. The serial and version numbers of the top and bottom
sections of the camera must be identical.
3 Installation
3.5 Completing the Mechanical Work
96 Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
Fig.55: Positioning the upper part and checking the installation
height (SST33 taken as example)
► Put the upper part(1) on the basic unit.
► Check the installation height. The support plate
and the upper part must be below the top edge of
the conveyor rail.

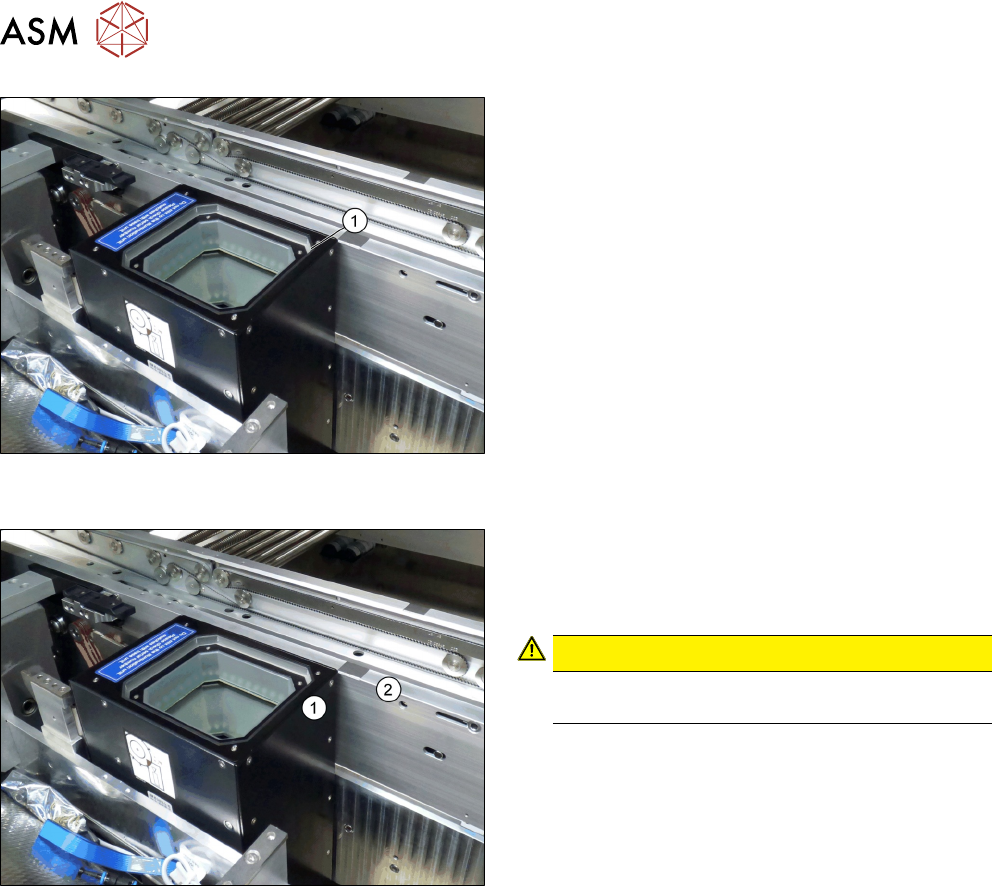

Fig.56: Checking the installation height
► Check the installation height.
When installed correctly, the upper part(1) is
3,5 ±0,1mm higher than the top edge of the
conveyor side (2).
CAUTION!
If the upper part protrudes too far, there is the
danger of a head crash.
.
See also
2 4.2.1.1 "Vision LED Controller VLC25 GigE DTC [03117587-xx]" [}106]
3.5 Completing the Mechanical Work
► Fasten the COT insert to its original position.
► Check and correct the height of the NC holder (see 4.1.2.1 "Setting the Nozzle Changer
Height" [}103]).
► Check and correct the height of the nozzle changer (see 4.1.2.2 "Setting the Nozzle Station
Height" [}104]).
► Check the setting of the jumper on the NC (if one is present).
It must be set to 2-3 (see also 4.1.2.3 "Jumpers on the Nozzle Changer" [}104]).
► Fit the NC and the nozzle station.
► Install the used tape chute in location 1.
► Move the component trolley into the machine.
► Switch the machine on.
► Check the function of the reject bin sensor and set the sensor, if required.
► Make the settings in the software (see 3.6 "Making the Settings in the Software" [}97]).
