2 Brief description 2.6 Scope of Delivery 78 Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera Typ 25/33 10/2018 2.6.2.1 Overview of Parts Fig.15: Basic camera …
2 Brief description
2.6 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
77

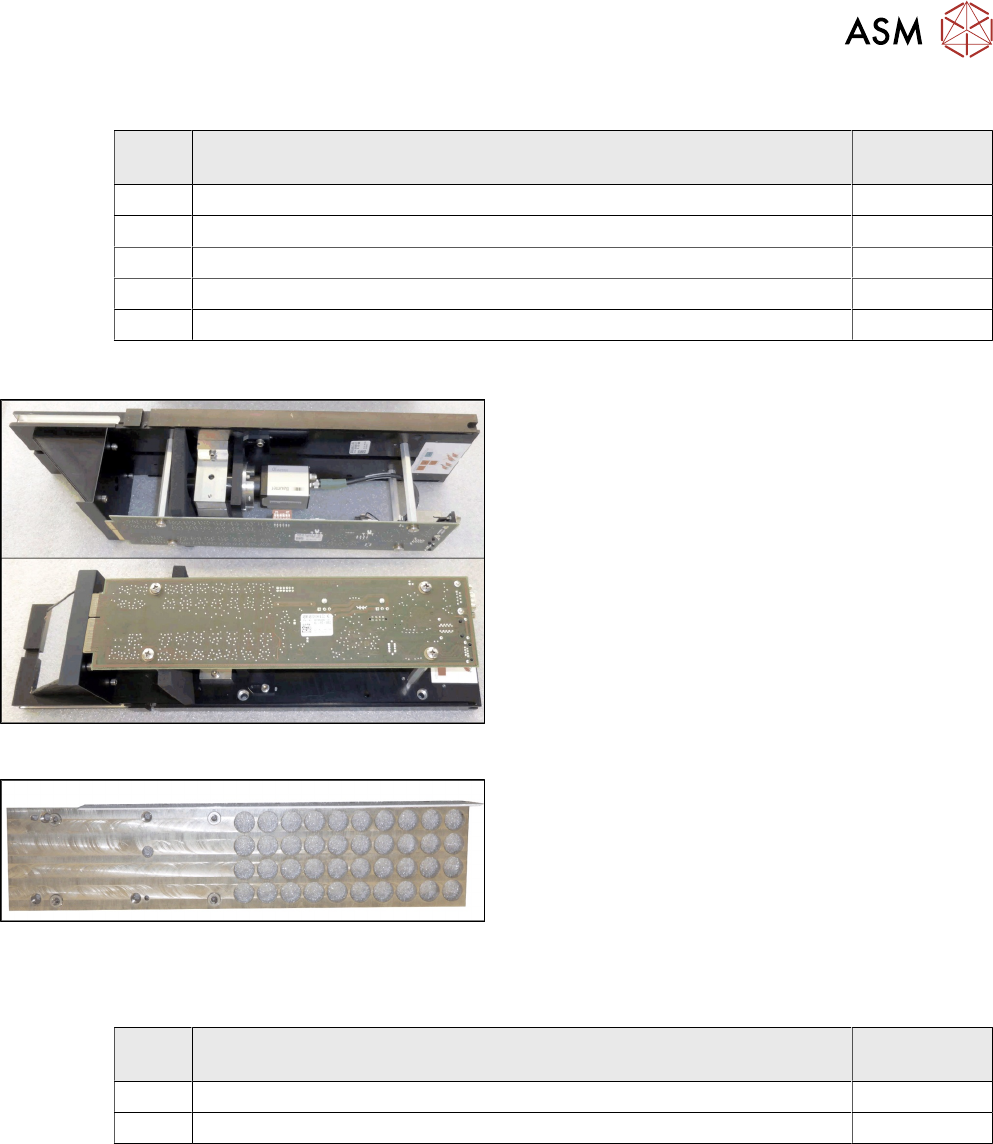

2.6.1 Stationary Camera Type 25 TH SIPLACE TX [00588101-xx]
Quant-
ity
Designation Item No.
1 CO camera stat. P&P (type25) 16x16 GigE 03105205-xx
1 Support plate FC 03077911-xx
1 ISO 8734 - 5 x 18 - A-ST 03015784-xx
4 ISO4762 - M6 x 20-A2-70 03042574-xx
2 DIN EN ISO 4026 - M6 x 50-45H 03106014-xx
2.6.1.1 Overview of Parts
Fig.13: Basic camera unit SST25
Basic camera unit SST25
Fig.14: Support plate
Support plate
2.6.2 Stationary Camera Type 33 CPP Head SIPLACE TX [00588100-xx]
Quant-
ity
Designation Item no.
1 Component Camera, Stationary, P&P (Type 33) 55x45 03105198-xx
4 ISO 4762 - M 6 x 25-A2-70 03042575-xx
In addition, you must order:
●
Camera spacer plate cpl. TX V2 [03158094-xx]
●
Cable set extension stationary camera [03148096Sxx]
2 Brief description
2.6 Scope of Delivery
78 Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
2.6.2.1 Overview of Parts

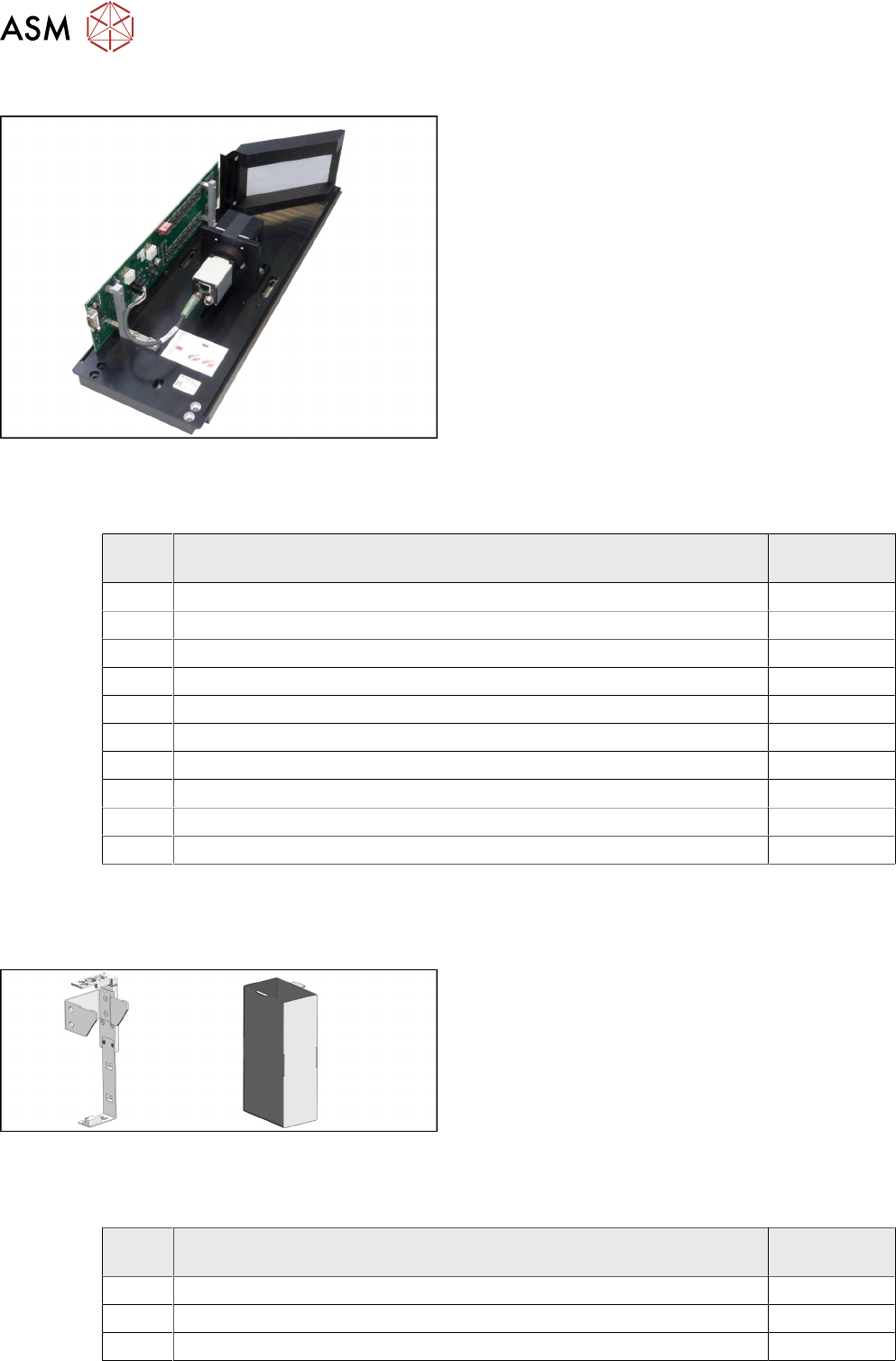

Fig.15: Basic camera unit SST33
Basic camera unit SST33
2.6.3 Reject Box / Nozzle Station IC Camera SIPLACE TX Series V2 [03162806-xx]
Quant-
ity
Designation Item no.
1 Connecting plate 03113448-xx
1 Holder reject box 03117361-xx
1 Reject box large, complete 03106815-xx
1 Sensor assembly IC camera 03115381-xx
3 Shim plate for nozzle reject device 03104733-xx
1 Support for nozzle reject device 03104731-xx
2 ISO 7380-2 M3x6-A2-70 03099571-xx
2 ISO10642 - M5 x 10-A2-70 03082832-xx
2 ISO 7046-2-M3 x 6-A2-70-H 03023238-xx
2 DIN 7984 - M6x12-A2-70 03081847-xx
For a CPP, the nozzle station CPx cpl. / SX4a f JTF3 M [03106821-xx] must be ordered in
addition!
2.6.3.1 Overview of parts
Fig.16: Reject Box / Nozzle Station IC Camera
Reject Box / Nozzle Station IC Camera
2.6.4 Camera spacer plate
Quant-
ity
Designation Item no.
1 Camera spacer plate TX V2 03136559-xx
6 ISO 4762 - M 6 x 20-A2-70 03042574-xx
2 ISO 8734 - 5 x 16 - A-ST 03015783-xx
2 Brief description
2.7 Tools and Equipment Required
Assembly Instructions / Montageanleitung SIPLACE TX-Series V2 Stationary Camera Type 25/33 Stationäre Kamera
Typ 25/33 10/2018
79
2.6.4.1 Overview of parts

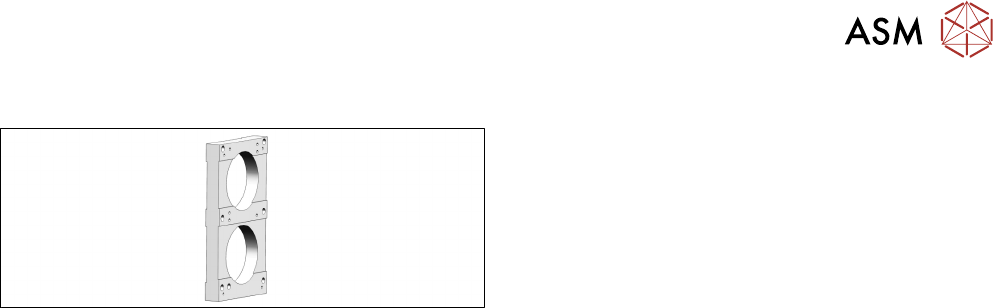

Fig.17: Camera spacer plate
Camera spacer plate
2.7 Tools and Equipment Required
●
Standard tools
●
Sliding gauge
●
Shortened Allen key size 5, if required
●
Microfiber cloth for cleaning optical assemblies, if required
2.8 Required Working Time
The complete installation will take approx. 1.5 hours.
