Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
29/65

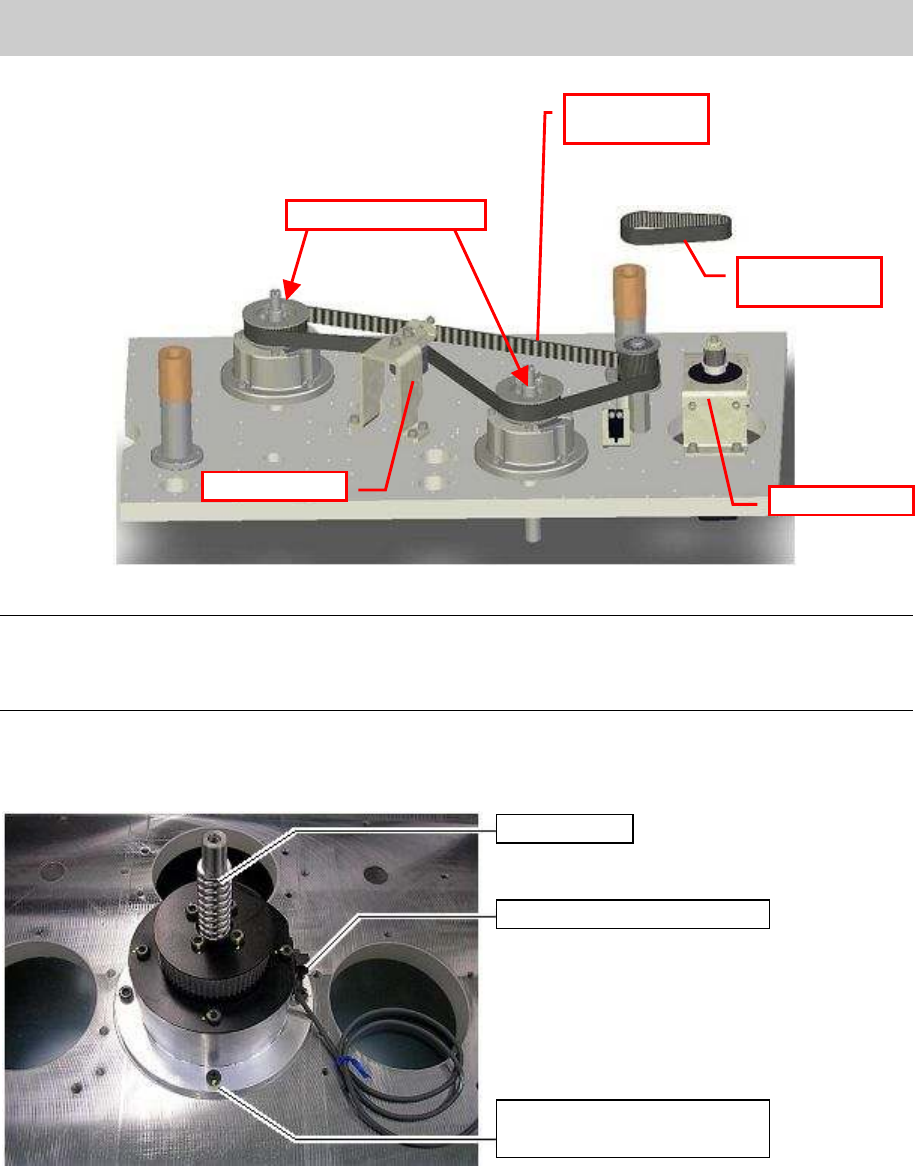

[YG100R & YG88R]
Figure 37
Note:
YG88R and YG100R machines have two ball screws. As the ball screws are driven via inter midiate
shaft, two types of belts are used. One is for driving the ball screws and the other is for interlocking the
movement of the ball screws.
5. Remove the four bolts that fix the bearing housing to the base with a hex wrench, and remove the
axis unit and the connector of the origin sensor.
Figure 38
PU-axis ball screw
Interlock belt
for PU-axis
Drive belt for
PU-axis
Motor bracket
Belt tensioner
Ball screw
ORG sensor of the PU-axis
Bolts for fixing the bearing
housing to the base (Qty:4)
Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
30/65

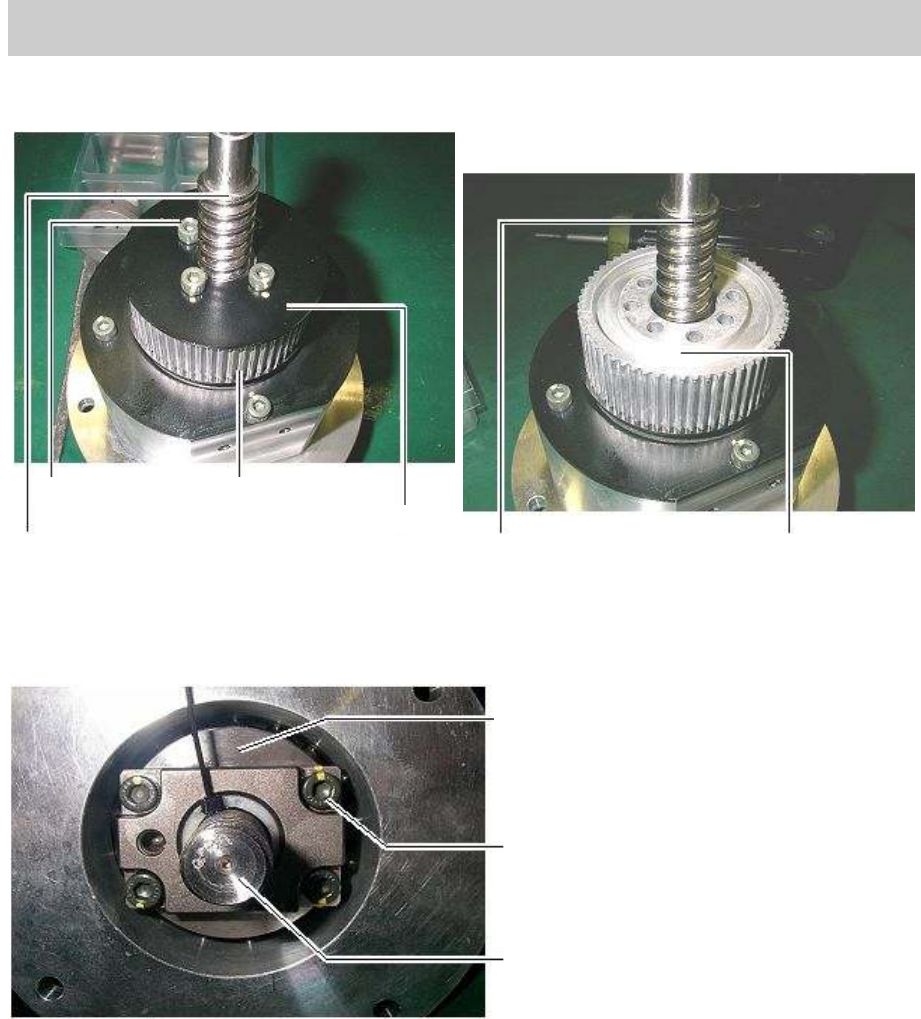

6. Remove the four bolts that fix the flange on the axis unit that includes the ball screw removed in
the procedure 5 with a hex wrench, then remove the flange and the pulley from the unit.
Figure 39
7. Remove the bolts attached to the housing nut which is at the bottom of the ball screw in order to
remove the ball screw from the unit.
Figure 40
Bolts (Qty:4)
Ball screw
Pulley
Flange
Ball screw
Pulley
Nut housing
Fixing bolt
Ball screw
Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
31/65

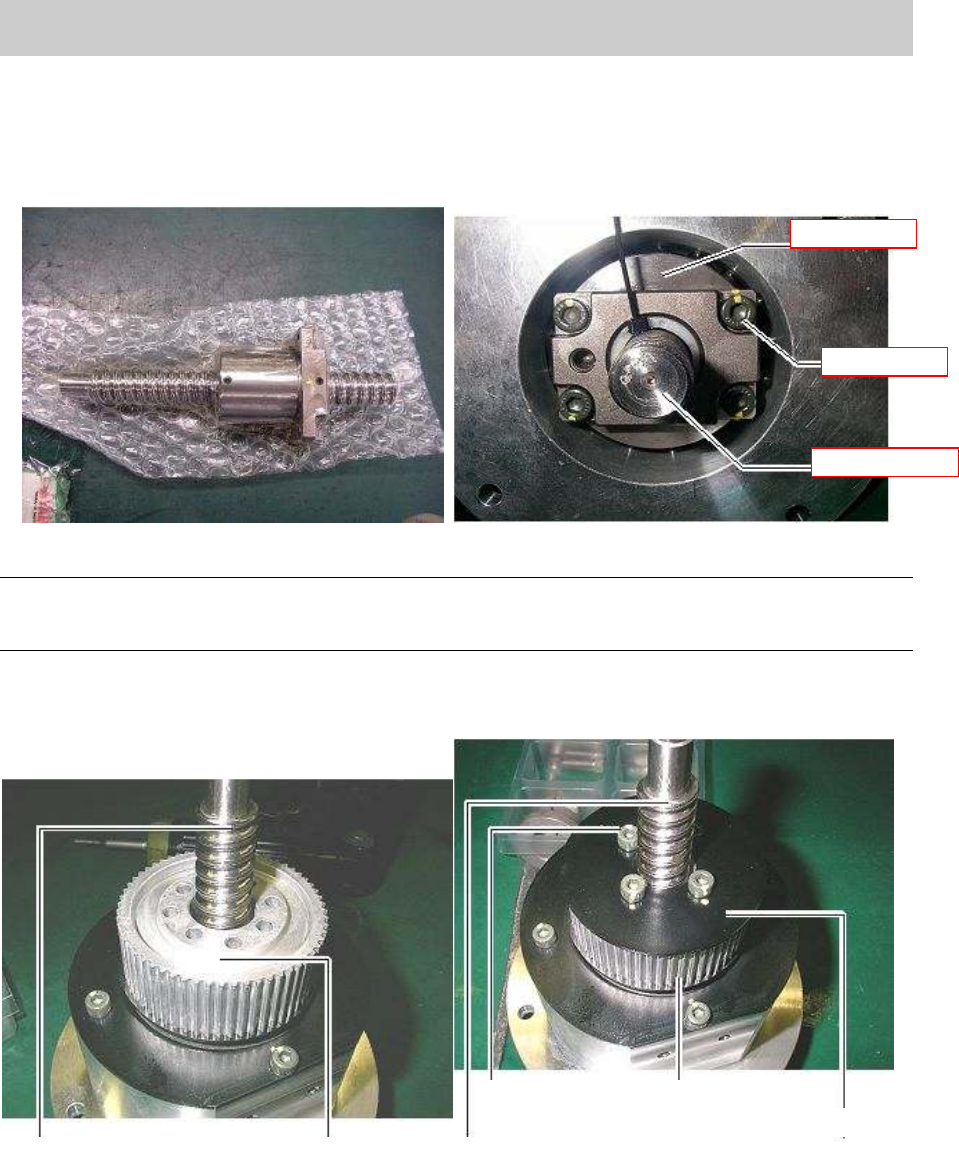

3.2. How to mount the new ball screw
1. Insert the new ball screw into the removed unit from the bottom side and fix it to the nut housing
with four bolts using a hex wrench.
Figure 41
Caution:
If you separate the nut part and the scew part of the ball screw, the balls in the grooves of ball screw
fall.
2. Mount the pulley and the flange on the upper part of the unit and fix them with four bolts using a
hex wrench.
Figure 42
Nut housing
Fixing bolt
Ball screw
Bolts (Qty:4)
Ball screw
Pulley
Flange
Ball screw
Pulley
