Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
56/65
5.6.1. Adjustment of the soft limit
Click on the [Axis] button on the main menu screen to activate the “Soft limit” adjustment function.
Figure 80
< Main axes (X, Y-axis)>
Normally, the soft limit is set to the position that is shifted by the amount of the offset value inward from
the mechanical limit or the secondary limit.
Figure 81
The function
for releasing
the brake
.
Select
the axis
Select the
axis direction
Input the
offset value
referring to
the offset
values in
Table 2.
Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
57/65
1. Press the [Emergency stop] button and turn off the servo.
2. Set the offset value. (Please refer to Table 2.)
3. Press the axis to be adjusted against the mechanical limits on both the + and – direction and click
on the [Teach] button.
Subtract the “Teach Offset” value from the obtained value by pressing the axes to the mechanical
limit in order to obtain the value.
4. The dialog box appears asking you to save the machine data. Click on the [OK] button.
Note:
When adjusting the soft limit of YG300 machine, press the X and Y-axis of the mounting table A
against the mechanical limit in order to generate the error of secondary limit deliberately. In this way,
the occurrence of the error of other axes can be prevented.
When an application error such as secondary limit error occurs in X-axis, Y-axis and U-axis adjustment,
the current position of the axes cannot be obtained correctly. Please make sure to clear the error
before pressing the axes against the mechanical limit.
5.6.2. Check the soft limit
Move the axis slowly by inching in order to check if the soft limit is set properly. Set the axis speed to
lower than 10%, and move the axis from near the soft limit outward and check if the axis stops at the
specified position. If it does not, please perform appropriate adjustment.
Service Engineer
Service Information
SI0802008E-000= YG series: Replacement procedure for ball screws of each axis
58/65

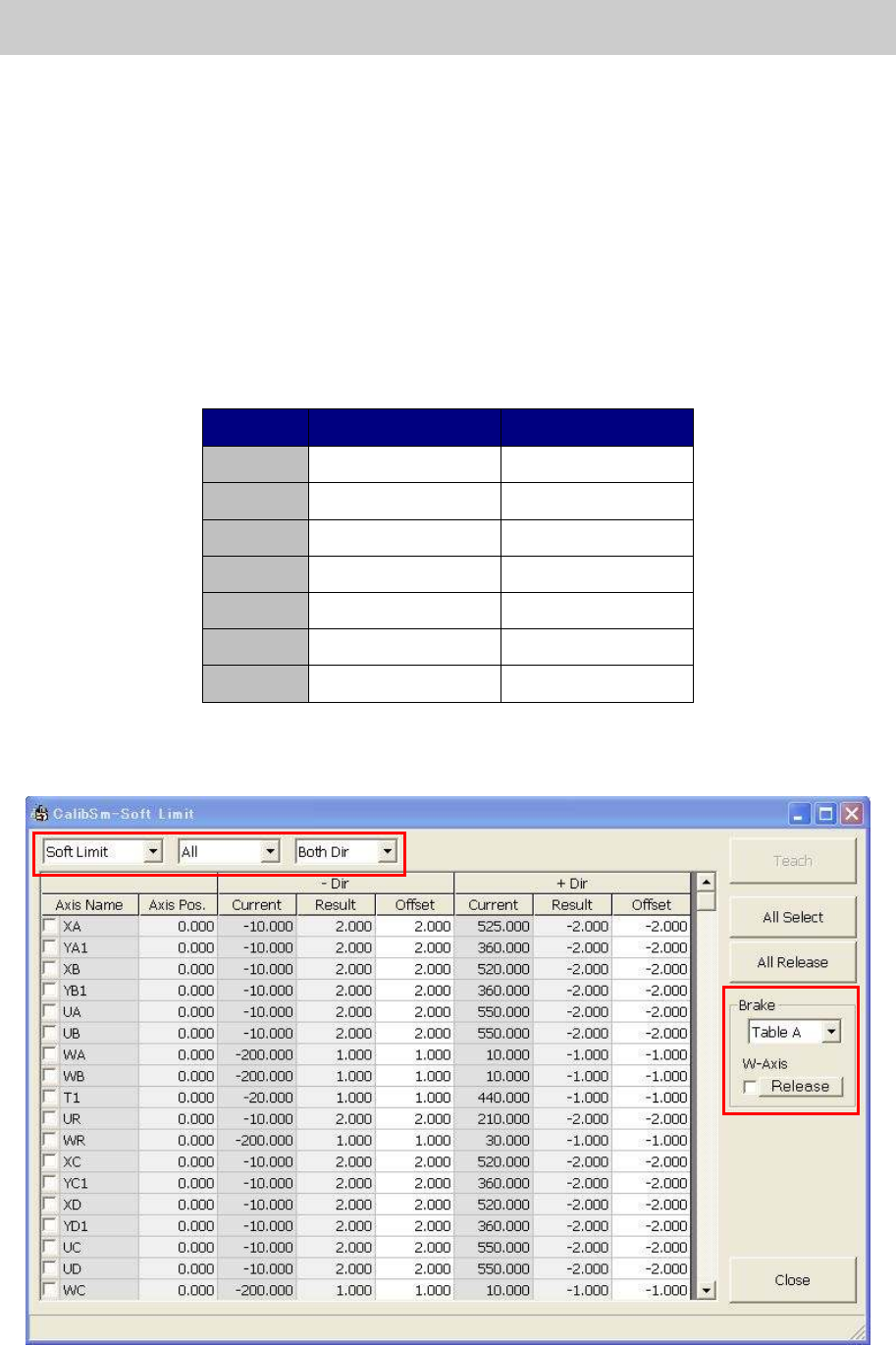

5.7. Adjustment of the soft limit for YG300 model
<Calib Sm Ver.3.02R1.000 or later>
66 axes are used for YG300. This section describes how to adjust the soft limit of each axis.
The adjustment utility named “Soft limit” has been newly added to the “Adjustment utility”, which was
independent from the “Axis” utility.
In the new soft limit adjustment, the coordinate of the mechanical limit is obtained (by teaching), and
then based on the coordinate, the value offset by the amount of the margin is automatically set as the
soft limit value.
The sensors of the axes with secondary limit sensor (X-axis, Y-axis and U-axis) need to be installed
1.0mm inward from the mechanical limit.
Axis name
Margin Limit+ Margin Limit-
X - 2.000 2.000
Y - 2.000 2.000
Z - 0.500 0.500
R - 5.000 5.000
U - 2.000 2.000
W - 1.000 1.000
T - 1.000 1.000
Table 3
1. Click on the [Soft Limit] button on the Calib Sm main menu to display the “Soft limit” screen.
Figure 82
