Page
SAMSUNG TECHWIN
98
SP1

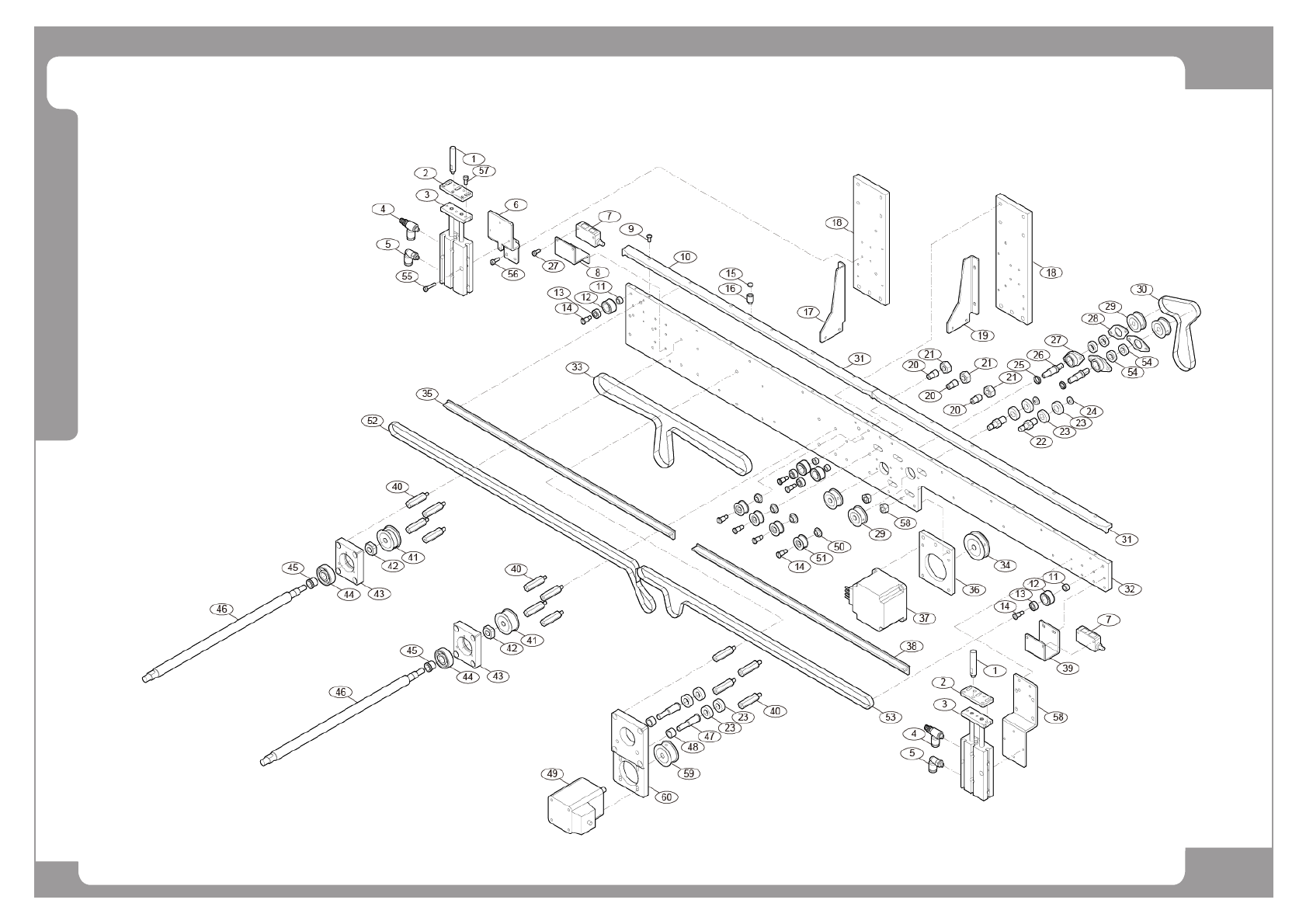

Conveyor Bypass (Extension) SP1 Option
Page
SAMSUNG TECHWIN
99
SP1
Conveyor Bypass (Extension) SP1 Option
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70531546B STOPPER_POST_460 2
2 FC09-003126A BRACKETLONG_STOPPER_PLATE 2 J70531548B
3 HP03-000094 CYLINDERCXJM1030A93;CXJM1030A93 2 HP03-900015
4 HP14-900106 THROTTLE_VALVE SP1201FM504W 2
5 HP06-900194 ELBOW_FITTING SQL04M5AW 2
6 FC09-003125A BRACKETLONG_STOP_CYLINDER_BKT 1 J70531547A
7 J70531680A SENSOR_BKT J70531680A 1
8 EP19-900099 PHOTO SENSOR[E3SLS3N] 2
9 FC18-902629 BUTTON HEAD SOCKET SCREW M3*8 (NI/ZN) 8
10 J71531252A WORK_FLAT_BELT_UNDER_B J71531252A 2
11 J70653688A IDLER_SPACER_S1 J70653688A 4
12 J71531283A PCB_BELT_PULLEY J71531283A 4
13 MC03-900044 BALL BEARING[685ZZ] 4
14 J70531836A IDLER_SHAFT J70531836A 8
15 J71531191A FIDUCIAL_DISK J71531191A 1
16 J70531673A FIDUCIAL_DISK_BASE J70531673A 1
17 J70531430A WORK_FIX_FRAME_RIB_L J70531430A 1
18 J70531669A BYPASS_FIX_SUPPORT J70531669A 2
19 J70531429A WORK_FIX_FRAME_RIB_R J70531429A 1
20 J70531385A BELT_TENSION_SCREW J70531385A 3
21 FC18-901036 HEX NUT [M8 (BLACK)] 3
22 MC19-000297A SHAFTIDLER_SHAFT 2
23 MC03-900022 BEARING_688ZZ 8
24 FC30-000764A PLATEIDLER_PLATE 2
25 FC18-000441A SPACERBEARING_SPACER 2
26 MC19-000296A SHAFTPULLEY_SHAFT 2
27 FC29-001003A HOUSINGBEARING HOUSING 2
Page
SAMSUNG TECHWIN
100
SP1
Conveyor Bypass (Extension) SP1 Option
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 FC29-001004A HOUSINGBEARING HOUSING COVER 2
29 MC19-000295A PULLEYTIMING PULLEY 4
30 MC05-000132 TIMING BELTTBGT 3202GT7;POWERGRIP GT 1
31 FC30-000761A PLATEBYPASS_CONV_GUIDE_FIX1 2
32 FC30-000768A PLATEBYPASS_FIX_FRAME 1
33 MC05-000134 TIMING BELTTBGT 7053GT7;POWERGRIP,705 1
34 J71531282A BELT_MOTOR_PULLEY J71531282A 1
35 J71531252A WORK_FLAT_BELT_UNDER_B J71531252A 1
36 FC30-000763A PLATEMOTOR_PLATE_1 1
37 EP08-900073 STEP_MOTOR 2S56Q01842SR2 1
38 FC30-000762A PLATEBELT_UNDER_PLATE 1
39 FC09-001456A BRACKETSENSOR BKT 1
40 J70531672A MOTOR_JIG_BAR J70531672A 12
41 MC19-000298A PULLEYPULLEY 3
42 FC18-900920 LOCK_NUT RN8 2
43 FC30-000766A PLATESCREW_PLATE 2
44 MC03-900023 BALL BEARING 2
45 J70531177A BUSHING J70531177A 2
46 J70531665A BYPASS_LEAD_SCREW J70531665A 2
47 MC19-000300A SHAFTPULLEY_SHAFT_1 2
48 FC18-000442A SPACERTENSION SPACER 2
49 EP08-900126 SERVO_MOTOR_PB PBM423DXC24 1
50 J70653790A IDLER_SPACER_TENSTION J70653790A 4
51 J7253007A IDLER 2 4
52 MC05-900145 TIMING_BELT 10282GT7 1
53 MC05-000133 TIMING BELTTBGT 9002GT7;POWERGRIP,900 1
54 MC03-900034 BEARING_MR148ZZ 4
