Page SAMSUNG TECHWIN 78 SP1 Conveyor Exit Shuttle (2/2)
Page
SAMSUNG TECHWIN
77
SP1
Conveyor Exit Shuttle (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
78
SP1

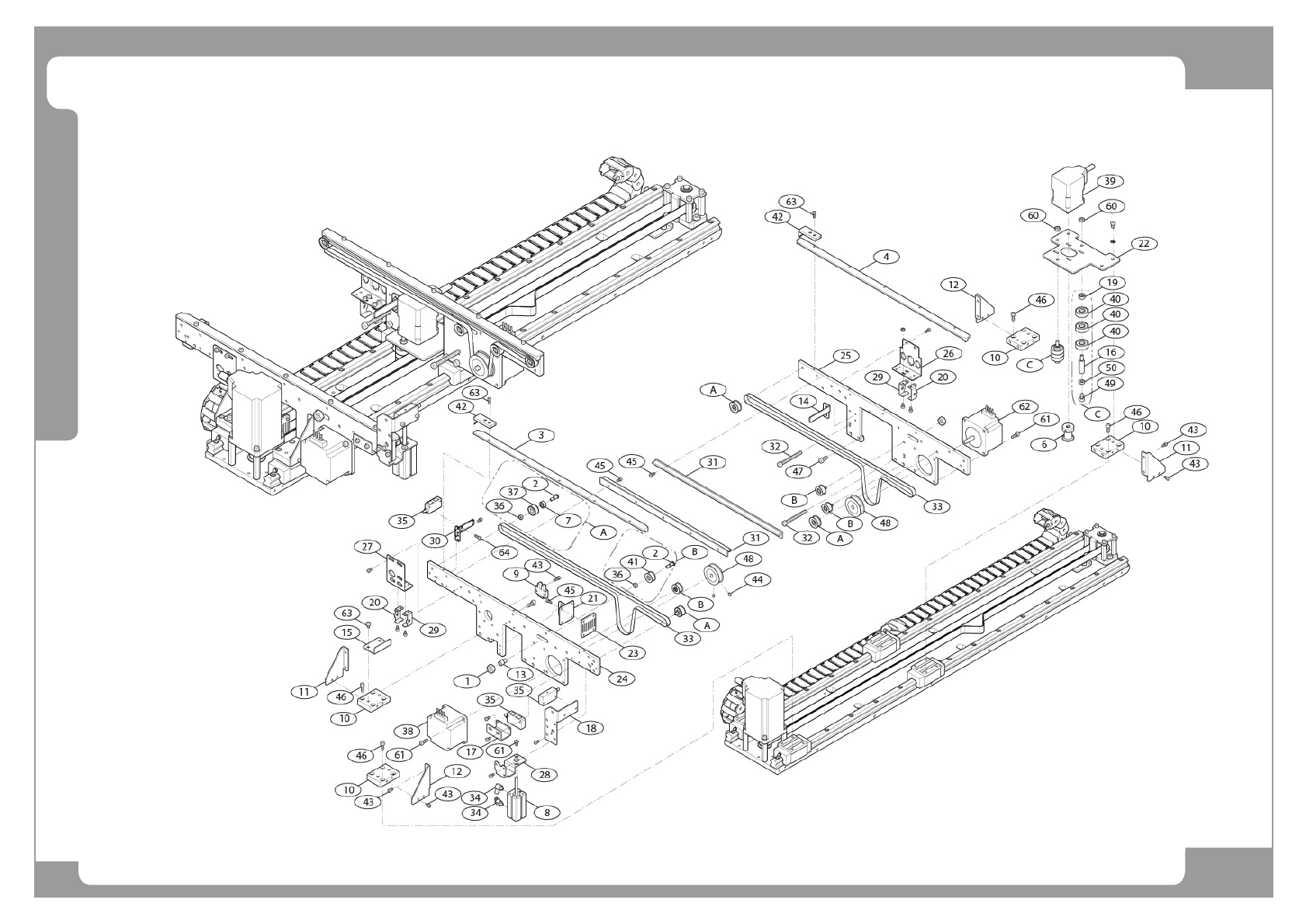

Conveyor Exit Shuttle (2/2)
Page
SAMSUNG TECHWIN
79
SP1
Conveyor Exit Shuttle (2/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC18-901036 HEX NUT [M8 (BLACK)] 2
2 J70531836A IDLER_SHAFT J70531836A 8
3 FC29-002095A GUIDESP001PCN002AEDGE_GUIDE_L 2 J71531272B
4 FC29-002089A GUIDESP001PCN001AEDGE_GUIDE_R 2 J71531273B
5 J71531282A BELT_MOTOR_PULLEY J71531282A 2
6 J71531204A PULLEY6_P21_15 6_2GT_P21_15 1
7 MC03-900044 BALL BEARING[685ZZ] 4
8 HP03-900009 CYLINDER AQ2A1230D 1
9 EP19-900108 PHOTO SENSOR 1
10 J70531380A LM_BLOCK_PLATE J70531380A 4
11 J70531381A SHUTTLE_FRAME_RIB_L J70531381A 2
12 J70531382A SHUTTLE_FRAME_RIB_R J70531382A 2
13 J70531385A BELT_TENSION_SCREW J70531385A 1
14 J70531398A SHUTTLE_WIDTH_SENSOR_BKT1 J70531398A 1
15 J70661454A S1_SHTHOME_SENS_DOG J70661454A 1
16 J70531404A MOVING_IDLER_SHAFT J70531404A 2
17 FC09-000640A BRACKETSHT_PCBSENS_BKT3;SPCC,BLACK ANO 1 J70661441A
18 J70661443A EXIT_SENSOR_BKT 1
19 J70531495A WASHER1284 J70531495A 2
20 J70661429A RINK_SIDE_BKT2 J70661429A 2
21 J70531566A SHUTTLE_2GT_BELT_FIX_BKT J70531566A 1
22 J70661477A S1_SHT_WIDTH_MOTOR_BKT J70661477A 1
23 J70531568A SHUTTLE_2GT_BELT_FIX_PLATE J70531568A 1
24 FC39-000391A FRAMESHUTTLE_F_FRAME2;A6061PT6 1 J70531675C
25 J70531676C SHUTTLE_WIDTH_FRAME 1
26 FC09-004401A RINK_MOVING_BKT1 1 J70531685B
27 FC09-004400A RINK_MOVING_BKT2 1 J70531686B
