Page SAMSUNG TECHWIN 346 SP1 Op Panel Bracket Block Diagram
Page
SAMSUNG TECHWIN
345
SP1
Left Conveyor Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91671966A LEFT_CV_SENSOR_L_CABLE_ASSY S1_LCV012 1
2 J91671967A LEFT_CV_SENSOR_R_CABLE_ASSY S1_LCV013 1
3 J91671964A LEFT_CV_WIDTH_LIMIT_CABLE_ASSY S1_LCV010 1
4 J91671960A LEFT_CV_FRONT_MOTOR_CABLE_ASSY S1_LCV005 1
5 J91671962A LEFT_CV_REAR_MOTOR_CABLE_ASSY S1_LCV007 1
6 J91671957A LEFT_WIDTH_MOTOR_CABLE_ASSY S1_LCV002 1
7 J91671968B LEFT_CV_SENSORS_EXT_CABLE_ASSY 1 J91671968A
8 AM03-013542A LEFT_CV_FR_BELT_EXT_CABLE_ASSY S1_LCV006 1 J91671961A
9 AM03-013543A LEFT_CV_REAR_BELT_EXT_CABLE_ASSY S1_LCV0 1 J91671963A
10 AM03-013540A LEFT_WIDTH_M_PWR_EXT_CABLE_ASSY S1_LCV00 1 J91671958A
11 J91671959A LEFT_WIDTH_M_ENC_EXT_CABLE_ASSY S1_LCV00 1
12 J91671978B LCV_BP_BELT_EXT_CABLE_ASSY 1 J91671978A SP1 OPTION
13 J91671970A IPA_SOL_CABLE_ASSY S1_LCV016 1 SP1 OPTION
14 J91671976A LEFT_WIDTH_MOTOR_PWR_CABLE_ASSY S1_MD030 1
15 J91671977A LEFT_WIDTH_MOTOR_ENC_CABLE_ASSY S1_MD031 1
Page
SAMSUNG TECHWIN
346
SP1

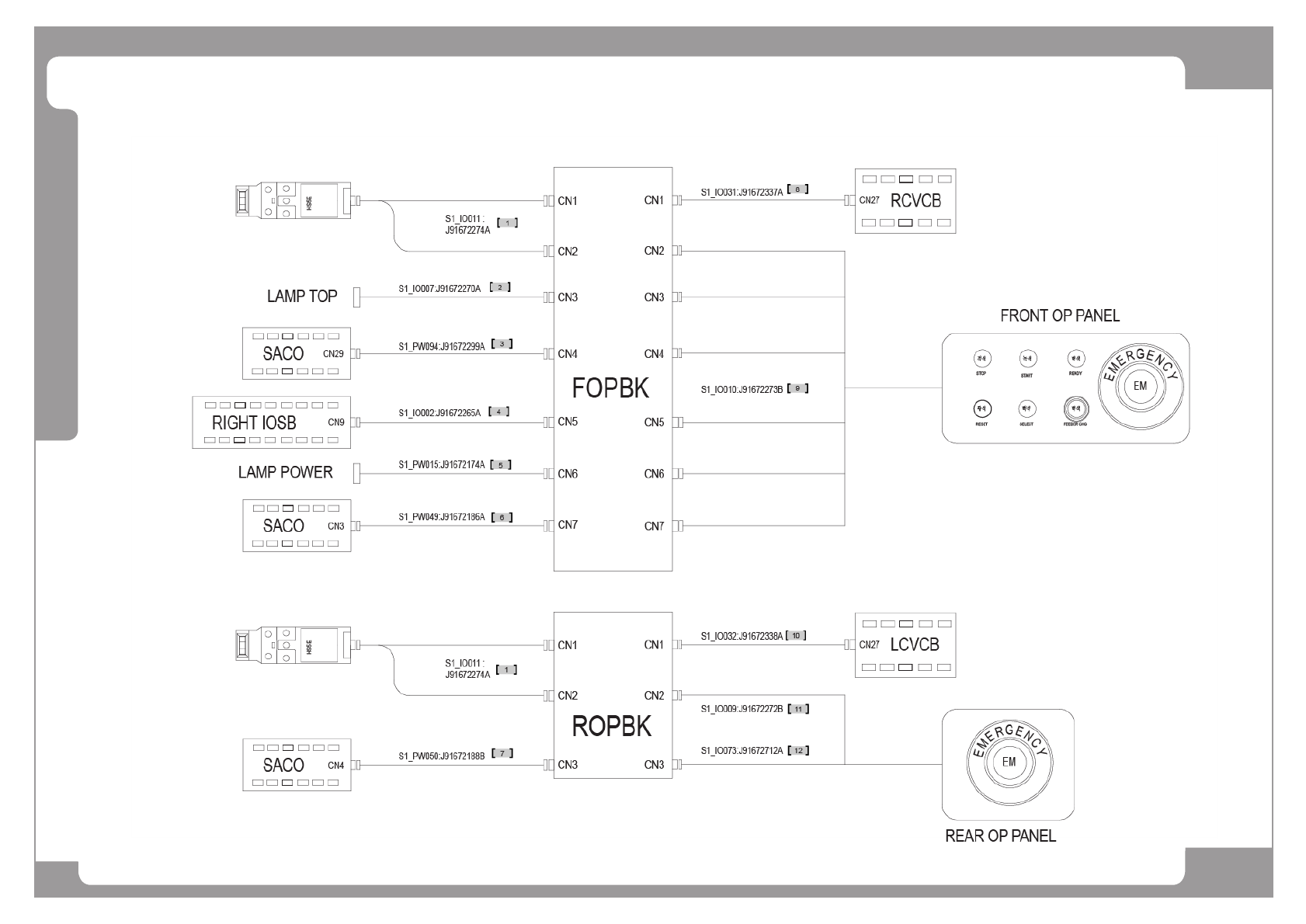

Op Panel Bracket Block Diagram
Page
SAMSUNG TECHWIN
347
SP1
Op Panel Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672274A DOOR_SWITCH_CABLE_ASSY S1_IO011 2
2 J91672270A LAMP_TOP_CABLE_ASSY S1_IO007 1
3 J91672299A SACO_CN29_CABLE_ASSY S1_PW094 1
4 J91672265A RIOSB_CN9_CABLE_ASSY S1_IO002 1
5 J91672174A ST_VAC_SOL_CABLE_ASS'Y S1_PW025 1
6 J91672186A SAFETY_CONTROL_CN3_CABLE_ASSY S1_PW049 1
7 J91672188B SAFETY_CONTROL_CN4_CABLE_ASSY 1 J91672188A
8 J91672337A FRONT_DOOR_KEY_SOL_CABLE_ASSY S1_IO031 1
9 AM03-005771A CABLE ASSYFRONT_OP_PANEL_S1_IO010 1 J91672273A/ J91672273B
10 J91672338A REAR_DOOR_KEY_SOL_CABLE_ASSY S1_IO032 1
11 AM03-005770A CABLE ASSYREAR_OP_PANEL_S1_IO009 1 J91672272A/ J91672272B
12 J91672712A REAR_OP_PANEL_SAFETY_CABLE_ASSY S1_IO073 1
