SP1_TRM(Ver6.8_CS14.25).pdf - 第128页
Page SAMSUNG TECHWIN 11 6 SP1 Stage UVW table SP1S
Page
SAMSUNG TECHWIN
115
SP1
Stage UVW table
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
116
SP1
Stage UVW table SP1S
Page
SAMSUNG TECHWIN
117
SP1
Stage UVW table SP1S

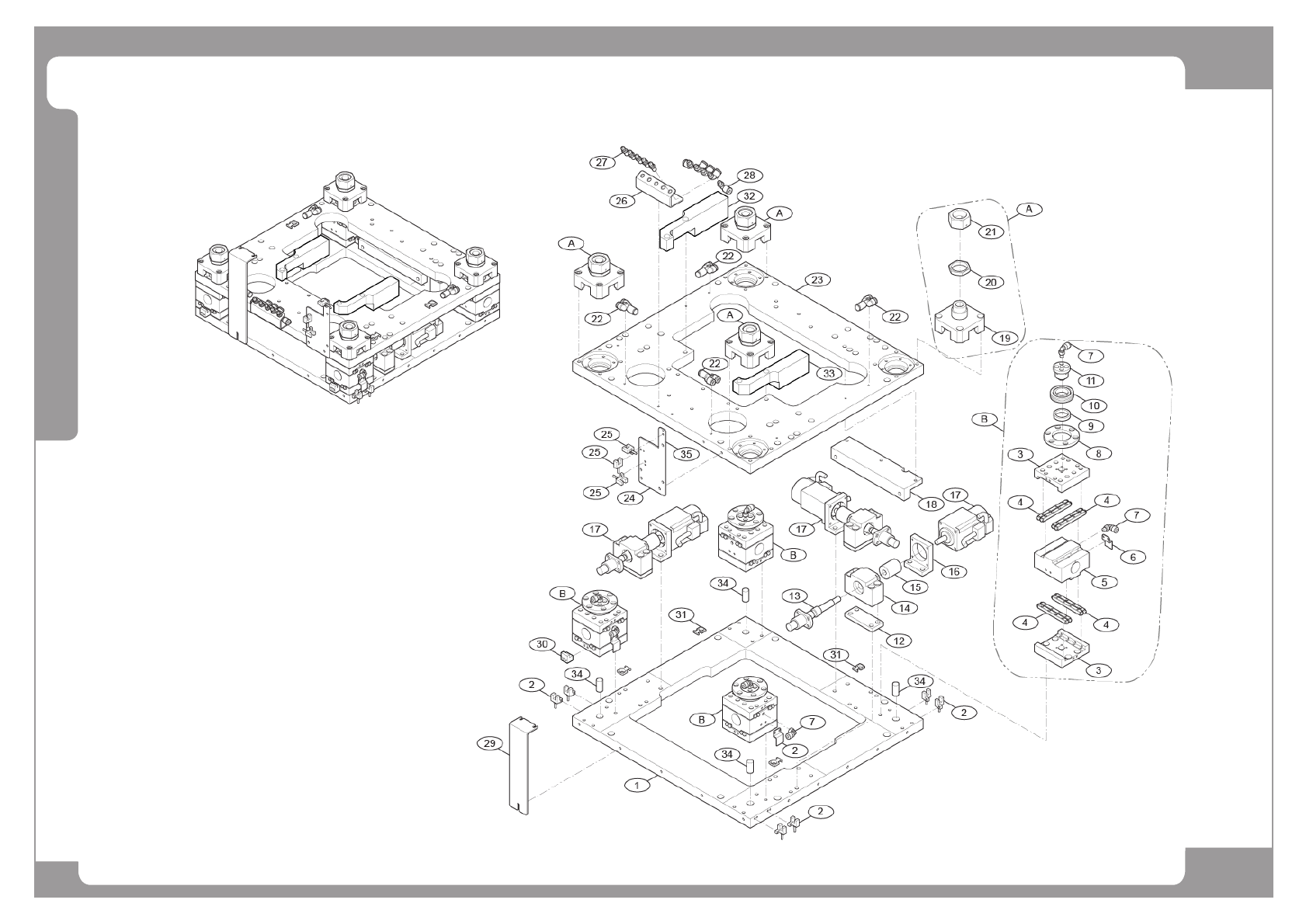

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70653209A UVW_BOTTOM_PLATE J70653209A 1
2 EP19-900141 EESX912R EESX912R 6
3 J70653231A CROSS_ROLLER_OUTER 8
4 J66101009A CROSS ROLLER GUIDE 8
5 J70653232A CRW_BLOCK 4
6 J70653225A UVW_SENSOR_DOG J70653225A 4
7 HP06-900078 ELBOW_UNION KQ2L04M6 8
8 J70653204A CRB_CAP J70653204A 4
9 J70653205A 31CRB_SPACER J70653205A 4
10 MC13-900138 CROSS_ROLLER_RING RE2008UUCC0 4
11 J70653206A CROSS_ROLLER_BRG_PIVOT J70653206A 4
12 J70653208A SPACER2_SUP_UNIT_UWV J70653208A 4
13 MC13-900188 BALL_SCREW DP1202JSHDNR0110X0050 4
14 MC04-900020 SUPPORT_UNIT BK10 4
15 FC14-900264 COUPLING KSCWBS2288 4
16 J70653210A UVW_MOTOR_SUPPORT J70653210A 4
17 EP08-900128 SERVO_MOTOR CSMT01BR1ANT3 4
18 FC29-003821A Z_MOTOR_BASE_BKT J71621007A 1 J71621007A
19 J70631015A Z_SUPPORT_BLOCK J70631015A 4
20 J70631014A Z_SUPPORT_BLOCK_NUT J70631014A 4
21 J70631013A Z_SUPPORT_BLOCK_UPPER J70631013A 4
22 HP06-900197 UNION_Y_FITTING SQU0400W 4
23 FC30-000406A PLATEUVW_TOP_PLATE 1
24 J70653494A Z_SENSOR_PLATE J70653494A 1
25 EP19-900141 EESX912R EESX912R 3
26 FC30-000407A PLATESTG_GREASE_NIPPLE_BKT 1
27 FC28-900369 GREASE NIPPLE [M6*1.0STRAIGHT] 5
