Page SAMSUNG TECHWIN 11 9 SP1 Stage UVW table SP1S NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference
Page
SAMSUNG TECHWIN
118
SP1

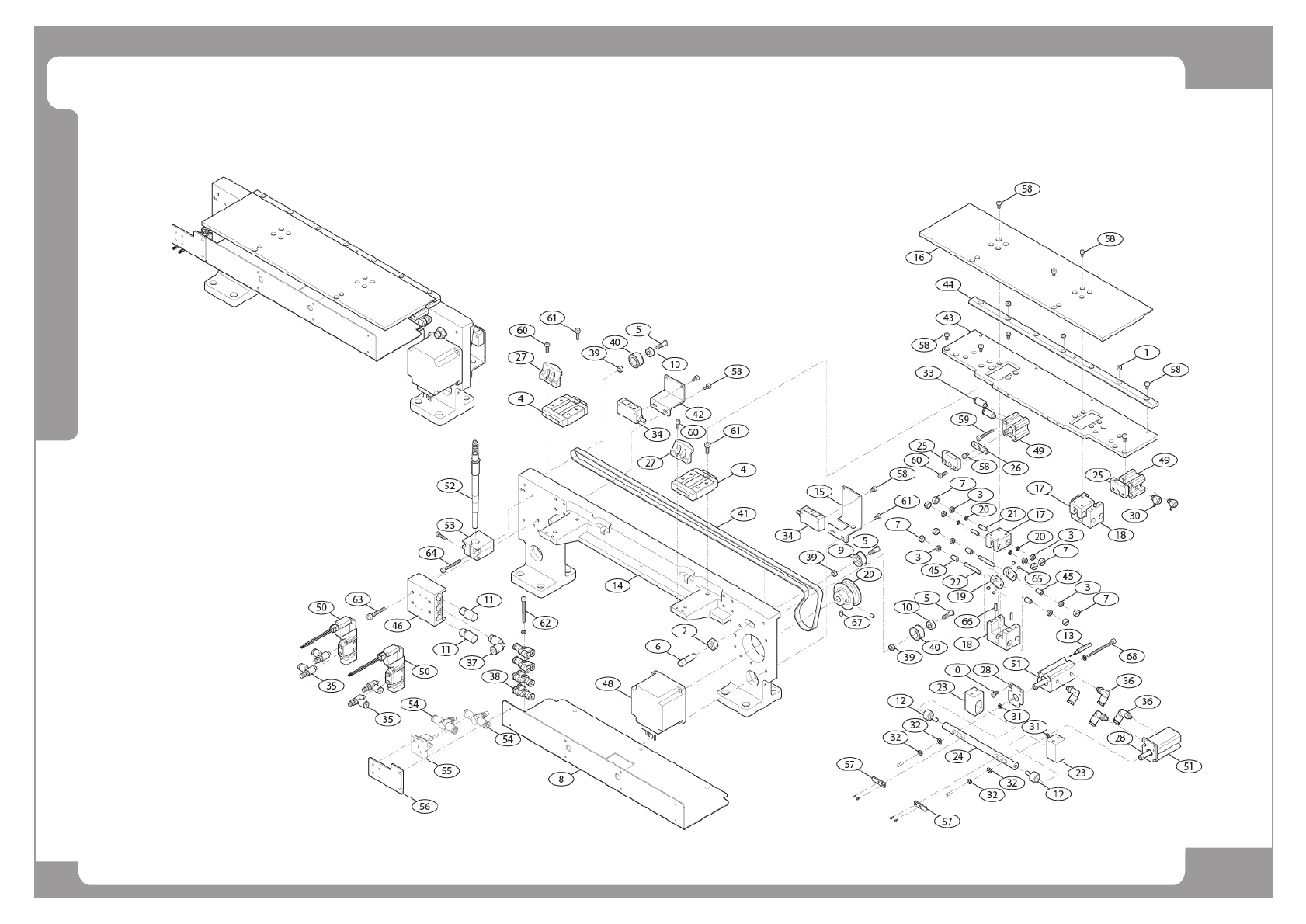

Stage UVW table SP1S
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 HP06-900079 ELBOW_UNION_FEMALE KQ2LF04M6 5
29 FC30-000437A PLATELOCKING_PLATE 1
30 J70631009A STOPPER_UVW J70631009A 4
31 FC18-903195 PROFILE MOUNT [DIA4.0] 4
32 FC29-002126A STOPPERSP1Z_BASE_STOPPER_R 1
33 FC29-002128A STOPPERSP1Z_BASE_STOPPER_L 1
34 Ф1020L(h7) DOWEL PIN 4
35 J70653494A Z_SENSOR_PLATE J70653494A 1
Page
SAMSUNG TECHWIN
119
SP1
Stage UVW table SP1S
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
120
SP1
Stage Work fix Frame
