Page SAMSUNG TECHWIN 190 SP1 Squeegee Solder Option
Page
SAMSUNG TECHWIN
189
SP1
Squeegee Holder 350
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A1 AM03-000466A ASSY,ETC,IMSSP1_SQUEEGEE_BLADE_350 1
1 J72651366A SOLDER_FENCE_R J72651366A 1
2 J72651365A SOLDER_FENCE_L J72651365A 1
3 J71651933A BLADE_HOLDER_350_SQG J71651933A 1
4 J70653928A METAL_BLADE_350_DLC J70653928A 1
5 J70653927A BLADE_FIX_350_PLATE J70653927A 1
6 J70653914A SOLDER_FENCE_SCREW J70653914A 4
7 J70653913A SOLDER_FENSE_R_BKT J70653913A 1
8 J70653912A SOLDER_FENSE_L_BKT J70653912A 1
9 J70651378E SQH_HOLDER_BOLT 2
10 M3*12 (BL/Zn) SOCKET HEAD CAP SCREW 5
Page
SAMSUNG TECHWIN
190
SP1

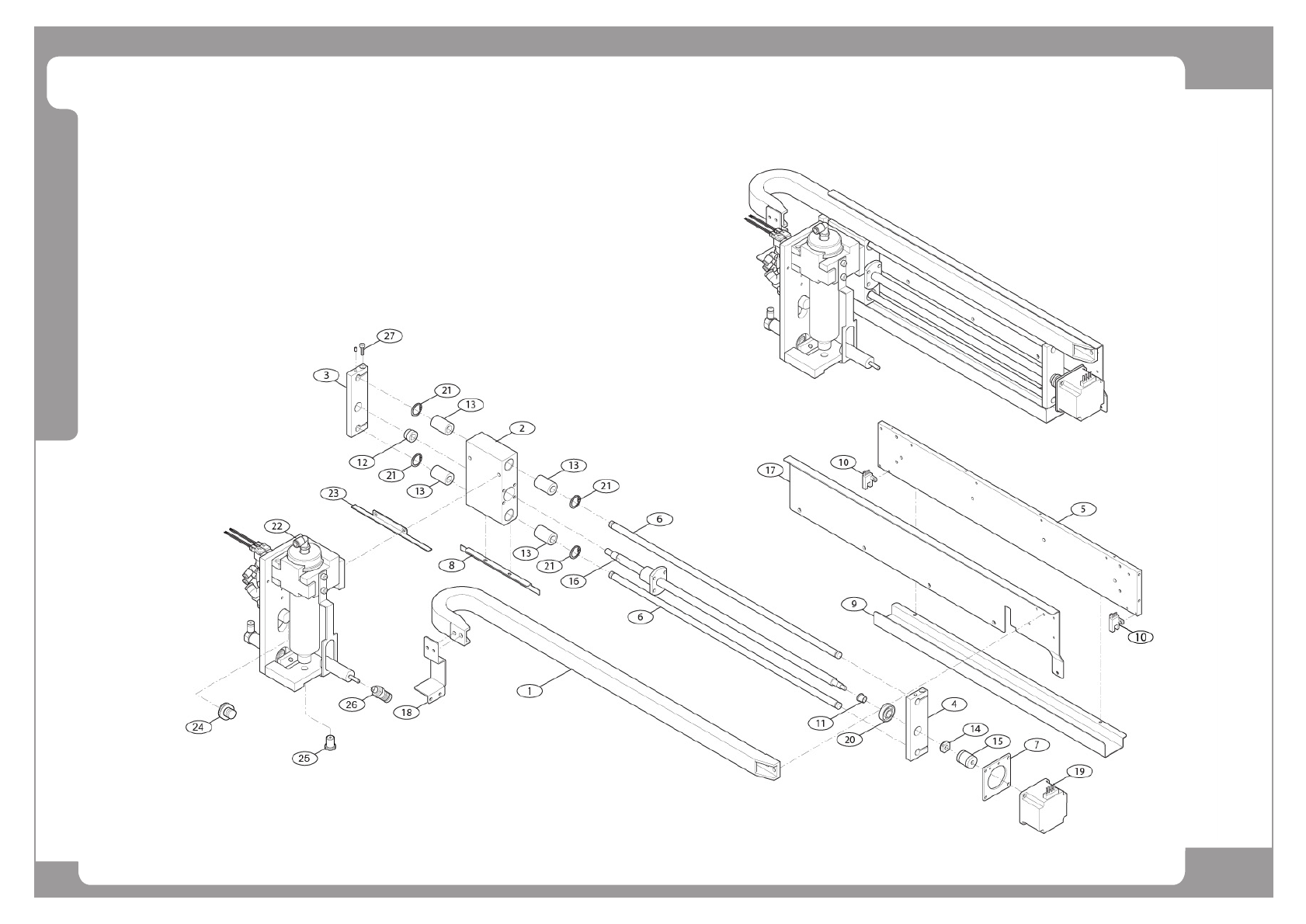

Squeegee Solder Option
Page
SAMSUNG TECHWIN
191
SP1
Squeegee Solder Option
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 EP03-900067 CABLEVEYOR S01537RB20730L 1
2 J70653474A SOLDER_SUPPLY_BLOCK J70653474A 1
3 J70653475A SQG_X_LEFT_SUP J70653475A 1
4 J70653476A SQG_X_RIGHT_SUP J70653476A 1
5 J70653477A SQG_X_BODY_PLATE J70653477A 1
6 J70653479A SQG_X_GUIDE_SHAFT J70653479A 2
7 J70653480A SQG_X_MOTOR_BRKT J70653480A 1
8 J70653483A SQG_SOLDER_SUPPLY_DOG J70653483A 1
9 J70653531A SQG_X_BOTTOM_COVER J70653531A 1
10 EP19-900140 PHOTO_SENSOR EESX672 2 ONLY FOR SP1D2
11 J70531177A BUSHING J70531177A 1
12 J72531002A BUSH_TAIL J72531002A 1
13 MC06-900007 BALL_BUSH LM10UU 4
14 FC18-900920 LOCK_NUT RN8 1
15 FC14-900262 COUPLING SRB19C_6X6.35 1
16 J70653478A SQG_LEAD_SCREW J70653478A 1
17 J70653481A SQG_X_CABLEVEYOR_PLATE 1
18 J70653482A SQG_X_CABLEVEYOR_FIX_BKT J70653482A 1
19 EP08-900073 STEP_MOTOR 2S56Q01842SR2 1
20 MC03-900023 BALL BEARING 1
21 FC18-901363 C_RING Ф19 (Hole) 4
22 J90651990A SOLDER_SUPPLY_UNIT2 1
23 C09-000231A BRACKETSENSOR_DOG 1 BOTTLE TYPE OPTION
24 EP19-000033A SENSORSDSHORT SENSOR(SP1) 1
25 EP19-000032A SENSORSDEMPTY SENSOR(SP1) 1
26 HP06-000078 FITTING;PCJ 0602,R 1/4,6 PHI 1
27 M4*15 (BL/ZN) SOCKET HEAD CAP SCREW
