Page SAMSUNG TECHWIN 31 SP1 ATC Ass’y SP1 OPTION NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference
Page
SAMSUNG TECHWIN
30
SP1

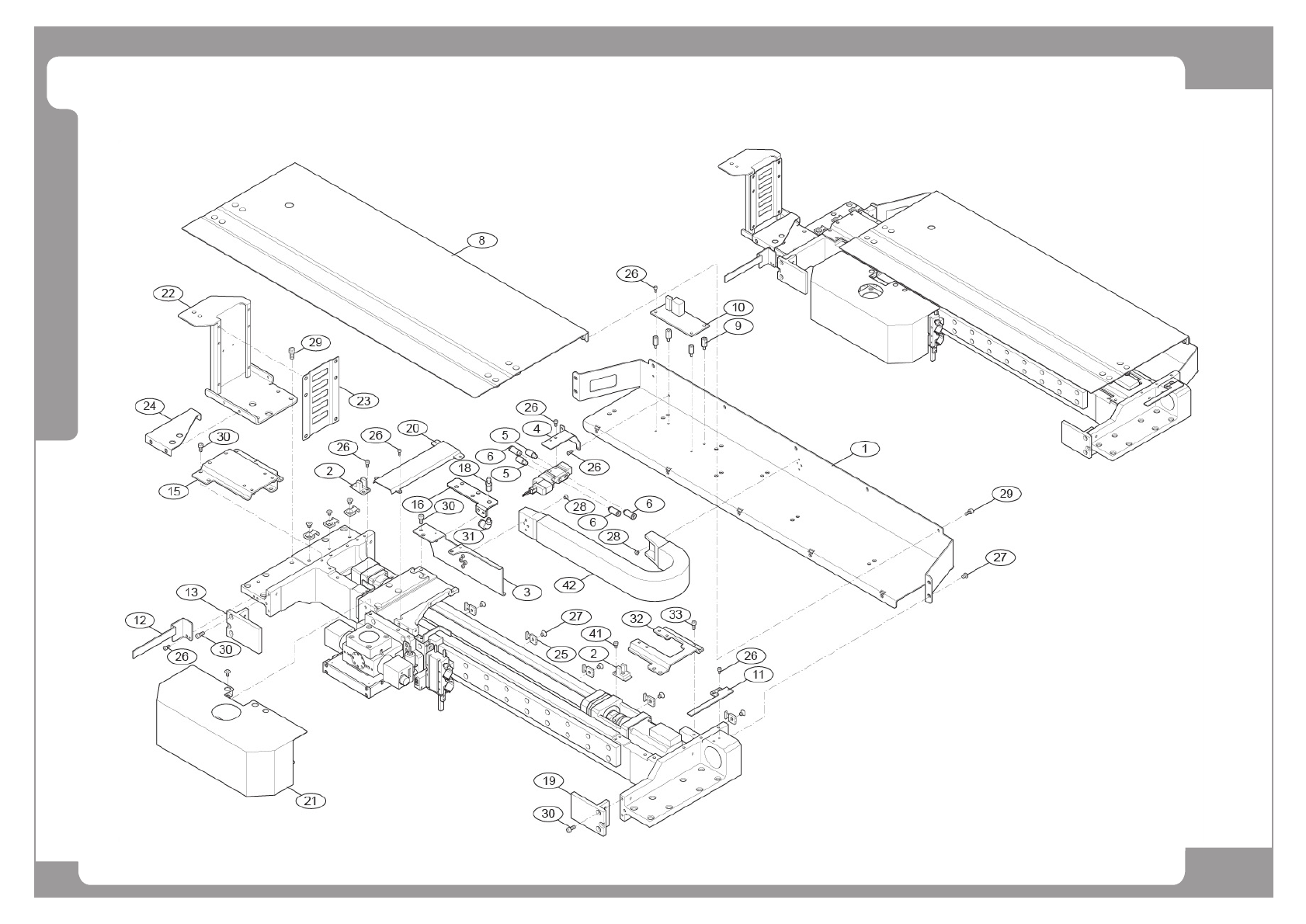

ATC Ass’y SP1 OPTION
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 FC29-900167 PULL_HANDLE KA12322 1
29 EP19-900114 LIMIT SENSOR [EESX674] 1
30 HP15-900019 INDEX_PLUNGER PMXA6 2
31 HP14-900105 SPEED_CON SP2201F0104S 2
32 EP19-900139 PHOTO_SENSOR_EESPY311 2
33 MC15-900011 SLIDE_RAIL 270200 4
34 M3*6 (BL/ZN) SOCKET HEAD CAP SCREW 40
35 M8*25 (BL/ZN) SOCKET HEAD CAP SCREW 1
36 M6*10 (BL/ZN) FLAT HEAD SOCKET SCREW 4
37 M4*10 (BL/ZN) SOCKET HEAD CAP SCREW 19
38 M3*10 (BL/ZN) SOCKET HEAD CAP SCREW 8
39 M4*6 (BL/ZN) SOCKET HEAD CAP SCREW 4
40 M4(BL/ZN) FLAT WASHER 2
41 M4*6(SUS) FLAT HEAD CAP SCREW 2
42 M6 HEX_NUT(M6) 1
Page
SAMSUNG TECHWIN
31
SP1
ATC Ass’y SP1 OPTION
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
32
SP1
Vision Ass’y (1/2)
