Page SAMSUNG TECHWIN 319 SP1 SQ Cross Board Block Diagram SP1D2 NO. P ART NO. P ART NAME Q'TY Old No. St o c k Apply Reference 1 J91671946B SQ CB_OUT_EXT_CABL E_ASSY 1 2 AM03-0067 56A SQ_SOLDER_MOD_EXT_CAB LE_ASSY 2…
Page
SAMSUNG TECHWIN
318
SP1
SQ Cross Board Block Diagram SP1D2
Page
SAMSUNG TECHWIN
319
SP1

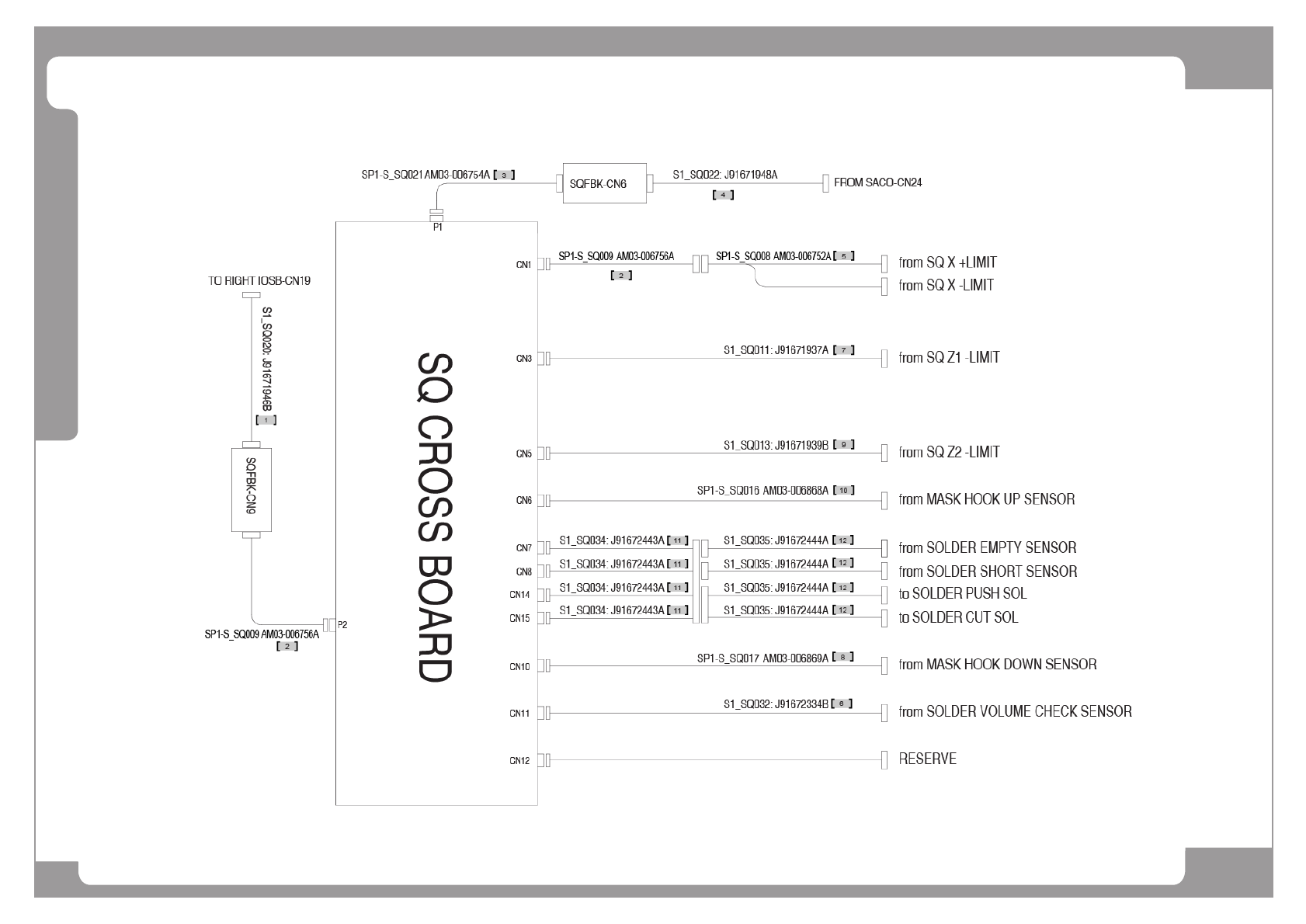

SQ Cross Board Block Diagram SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91671946B SQCB_OUT_EXT_CABLE_ASSY 1
2 AM03-006756A SQ_SOLDER_MOD_EXT_CABLE_ASSY 2
3 AM03-006754A SQCB_DC_POWER_CABLE_ASSY 1
4 J91671948A SQCB_DC_POWER_EXT_CABLE_ASSY S1_SQ022 1
5 AM03-006752A SQ_SOLDER_MODULE_CABLE_ASSY 1
6 J91672334B SOLDER_VOL_CHECK_CABLE_ASSY 1
7 J91671937A SQ_Z1_LIMIT_CABLE_ASSY S1_SQ011 1
8 AM03-006869A MASK_HOOK_DOWN_CABLE_ASSY 1
9 J91671939B SQ_Z2_LIMIT_CABLE_ASSY 1
10 AM03-006868A MASK_HOOK_UP_CABLE_ASSY 1
11 J91672443A SQ_SOLDER_MODULE_CABLE_ASSY 4
12 J91672444A SQ_SOLDER_MODULE_EXT_CABLE_ASSY 4
Page
SAMSUNG TECHWIN
320
SP1

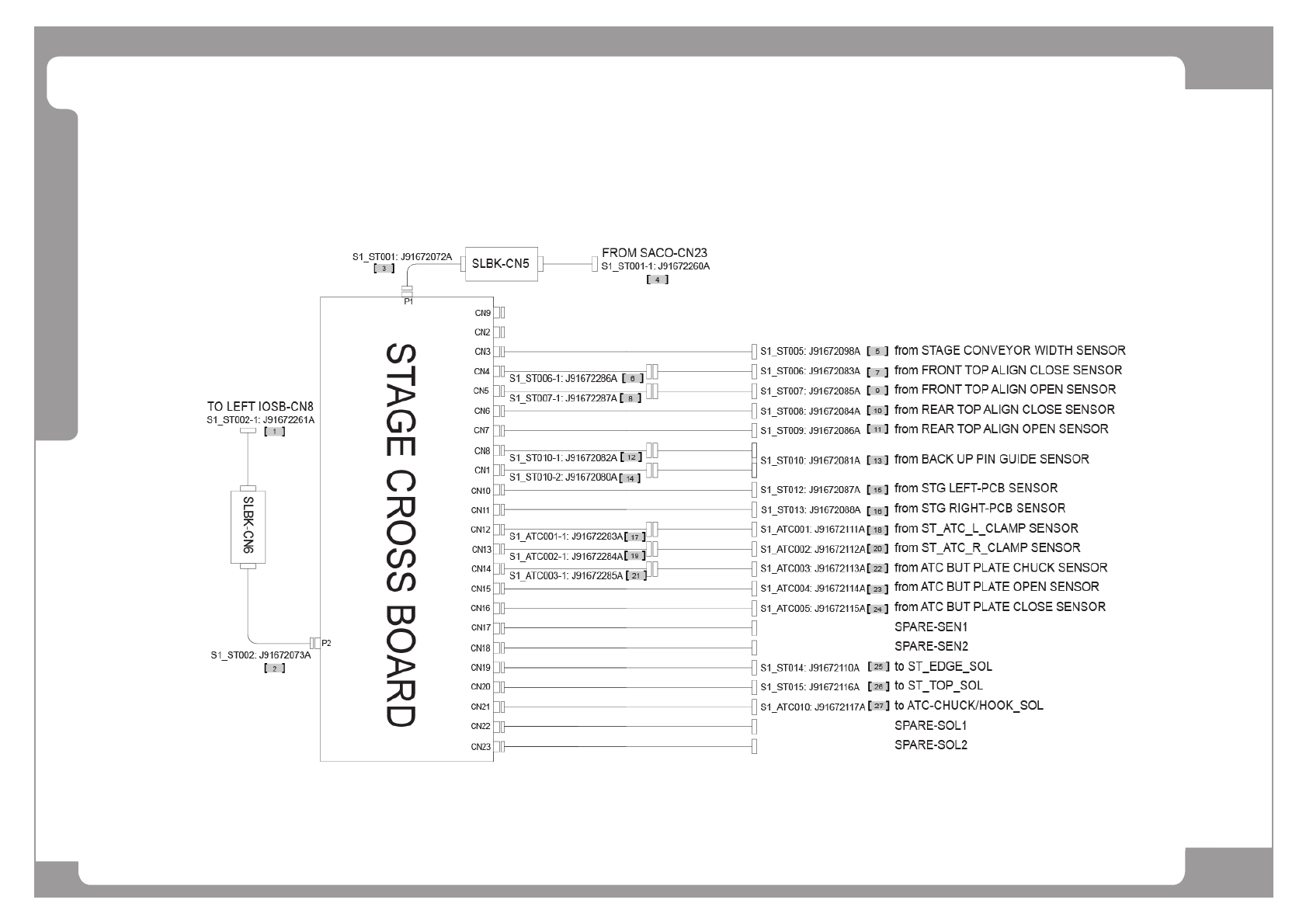

Stage Cross Board Block Diagram
