Page SAMSUNG TECHWIN 357 SP1 Squeegee Bracket Block Diagram NO. P ART NO. P ART NAME Q'TY Old N o. St oc k Apply Reference 1 J916719 28A SQ_Z1_AXIS_MOTOR_CABLE_ASSY 1 2 J916719 31A SQ_Z2_AXIS_MOTOR_CABLE_ASSY S1_SQ0…
Page
SAMSUNG TECHWIN
356
SP1
Squeegee Bracket Block Diagram
Page
SAMSUNG TECHWIN
357
SP1
Squeegee Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91671928A SQ_Z1_AXIS_MOTOR_CABLE_ASSY 1
2 J91671931A SQ_Z2_AXIS_MOTOR_CABLE_ASSY S1_SQ005 1
3 J91671929A SQ_Z1_MOTOR_POWER_EXT_CABLE_ASSY 1
4 J91671930A SQ_Z1_MOTOR_ENC_EXT_CABLE_ASSY S1_SQ004 1
5 J91671932A SQ_Z2_MOTOR_POWER_EXT_CABLE_ASSY 1
6 J91671933A SQ_Z2_MOTOR_ENC_EXT_CABLE_ASSY S1_SQ007 1
7 J91671951A SQ_Z1_MOTOR_POWER_CABLE_ASSY S1_MD023 1
8 J91671952A SQ_Z1_MOTOR_ENCODER_CABLE_ASSY S1_MD024 1
9 J91671953A SQ_Z2_MOTOR_POWER_CABLE_ASSY S1_MD025 1
10 J91671954A SQ_Z2_MOTOR_ENCODER_CABLE_ASSY S1_MD026 1
11 J91672289A SQG_REGULATOR_CABLE_ASS'Y S1_SQ023 1
12 AM03-002883A SQG_REGULATOR_EXT_CABLE_ASS'Y 1 J91672290A
13 AM03-005638A SQG_REG_EXT_TO_RIOSB_CABLE_ASSY 1 J91672291A/ J91672291B
14 J91671947B SQCB_DC_POWER_CABLE_ASSY 1 J91671947A
15 J91671945A SQCB_OUT_CABLE_ASSY S1_SQ019 1
16 J91671948A SQCB_DC_POWER_EXT_CABLE_ASSY S1_SQ022 1
17 J91671946B SQCB_OUT_EXT_CABLE_ASSY 1 J91671946A
18 J91672311A SQ_TEMP_HUM_CABLE_ASSY S1_SQ033 1
19 J91672312B SQ_TEMP_HUM_EXT_CABLE_ASSY 1 J91672312A
20 J91671934A SQ_SOLDER_MODULE_CABLE_ASSY S1_SQ008 1
21 J91672444A SQ_SOLDER_MODULE_EXT_CABLE_ASSY S1_SQ035 1 OPTION
22 J91671935A SQ_SOLDER_MODULE_EXT_CABLE_ASSY S1_SQ009 1
23 J91672443A SQ_SOLDER_MODULE_CABLE_ASSY S1_SQ034 1
24 J91671955A SQUEEGEE_X_CABLE_ASSY S1_MD027 1
Page
SAMSUNG TECHWIN
358
SP1

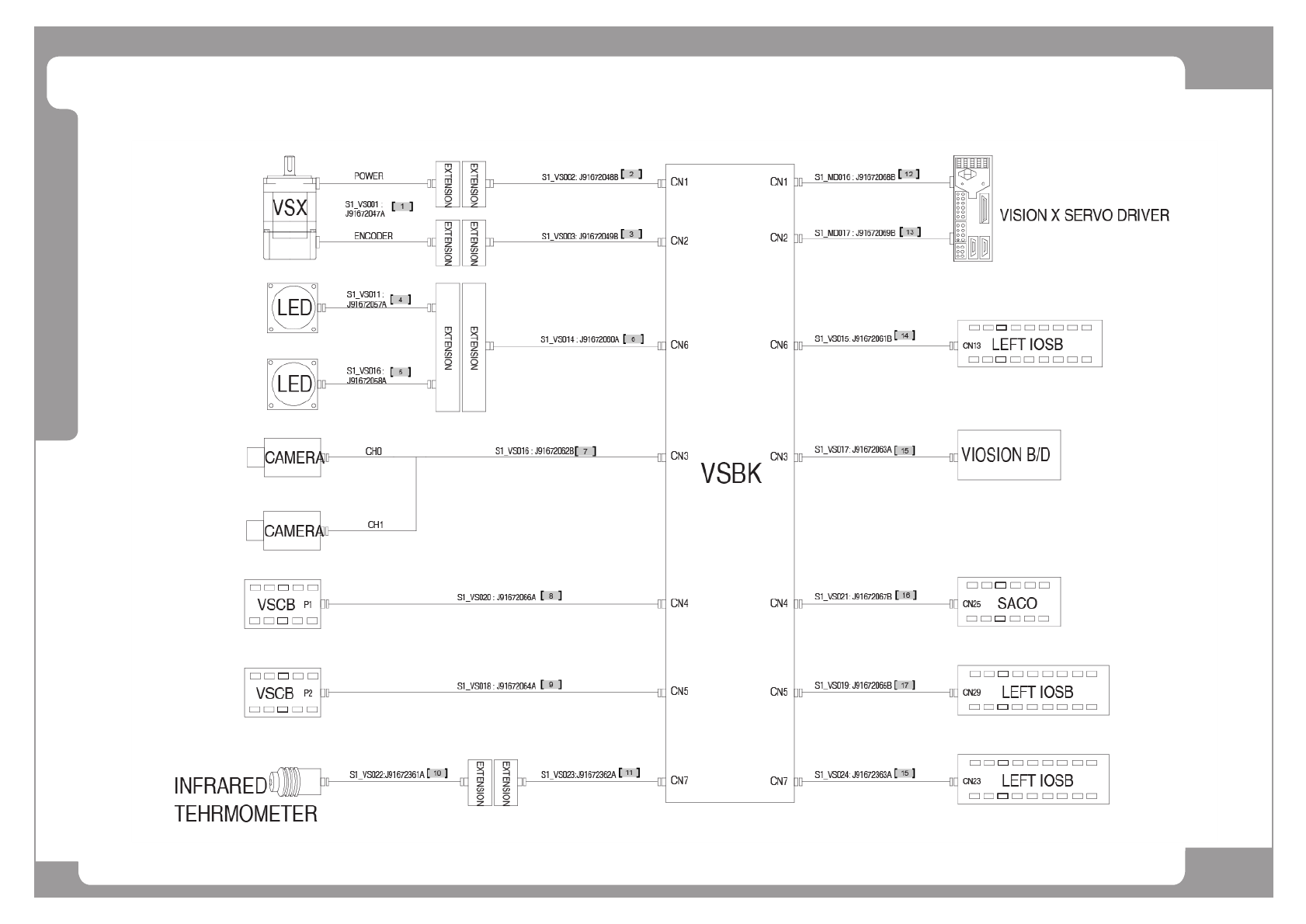

Vision Bracket Block Diagram
