Page SAMSUNG TECHWIN 180 SP1 Squeegee Head Ass’y
Page
SAMSUNG TECHWIN
179
SP1
Squeegee Body Ass’y SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
180
SP1

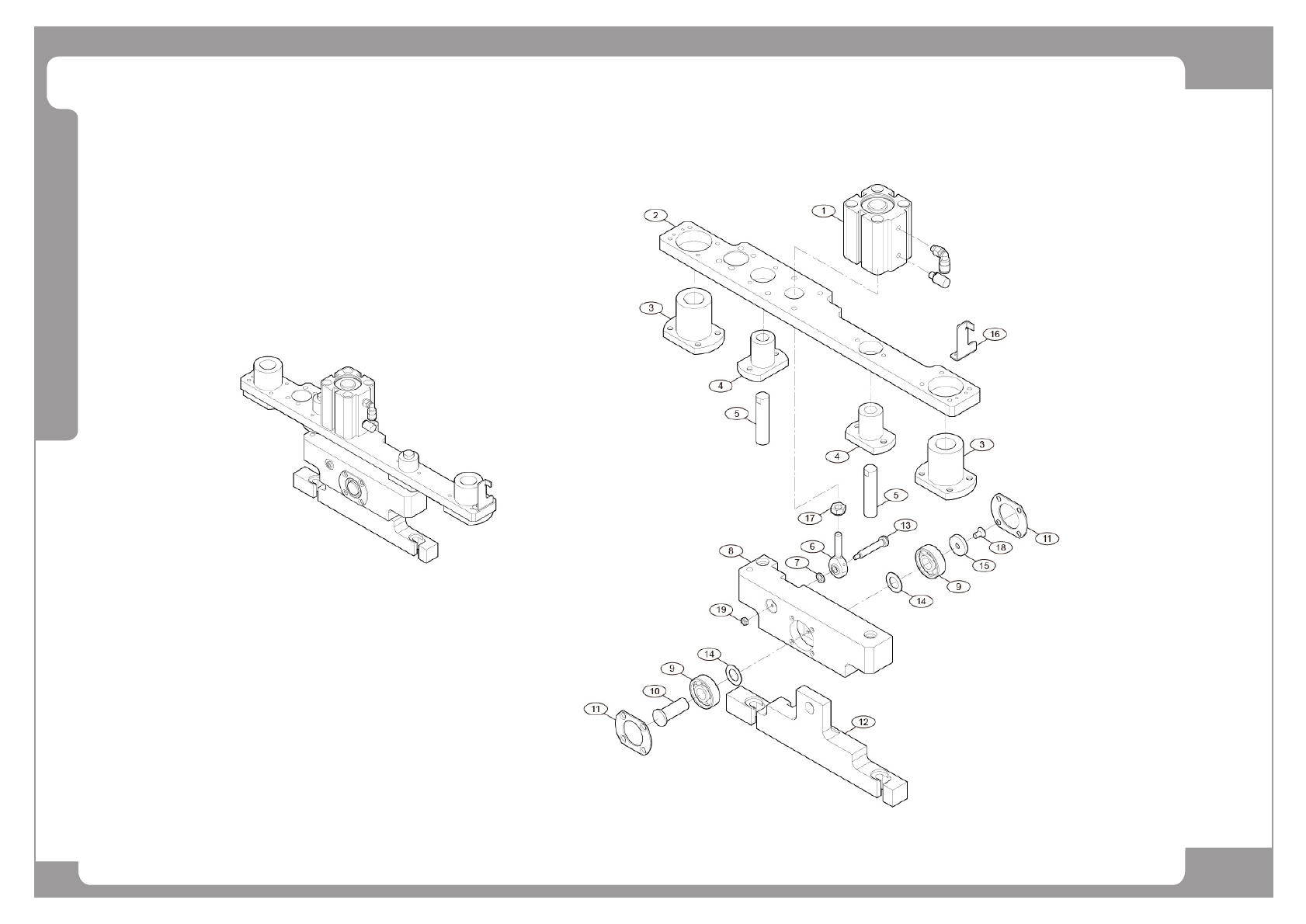

Squeegee Head Ass’y
Page
SAMSUNG TECHWIN
181
SP1
Squeegee Head Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 HP03-000040 CYLINDER-AIR_CYLINDER;??,6,10,25 1
2 FC30-000445B PLATEPLATE_SQG_CYL 1
3 MC06-900009 BALL_BUSH LMH16UU 2
4 MC06-900008 BALL_BUSH LMH10UU 2
5 J70653245A SHAFT_CYL_Z_SQG J70653245A 2
6 MC03-000149 ROD_END 1
7 FC18-000440A SPACERROD_END_SPACER 1
8 FC05-000143B BASEHINGE_BASE_SQG_HOLD_B 1 FC05-000143A
9 MC03-900023 BALL BEARING 1 HP06-900111
10 J70653830A SHAFT_ROLLING J70653830A 1
11 J70653834A HINGE_BEARING_COVER J70653834A 2
12 FC09-003819C BRACKETS1SQGHOLDER_SQG 1 J71651908A /FC09-003819A
13 FC18-000915 SCREWSHOULDER BOLT;GMSB525 1 MC03-000149
14 J70653831A HINGE_SPACER J70653831A 2
15 J70653224B SQG_STOPPER 1
16 J70653264A SENSOSR_DOG_SQG_Z J70653264A 1
17 FC18-000940 NUT,UUNUTSZ5;5 1
18 FC18-902819 FLAT HEAD CAP SCREW M4*8 (NI/ZN) 1
19 FC18-901044 HEX NUT [M3 (BL/ZN)] 1
