Page SAMSUNG TECHWIN 187 SP1 Squeegee Holder 250 NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference A1 AM03-00365 8A ASSY , ETC, IMSSP1_BL ADE 250 1 A M03-000756A 1 J7265136 6A SOLDER_FENCE_R J72651366 A 1…
Page
SAMSUNG TECHWIN
186
SP1

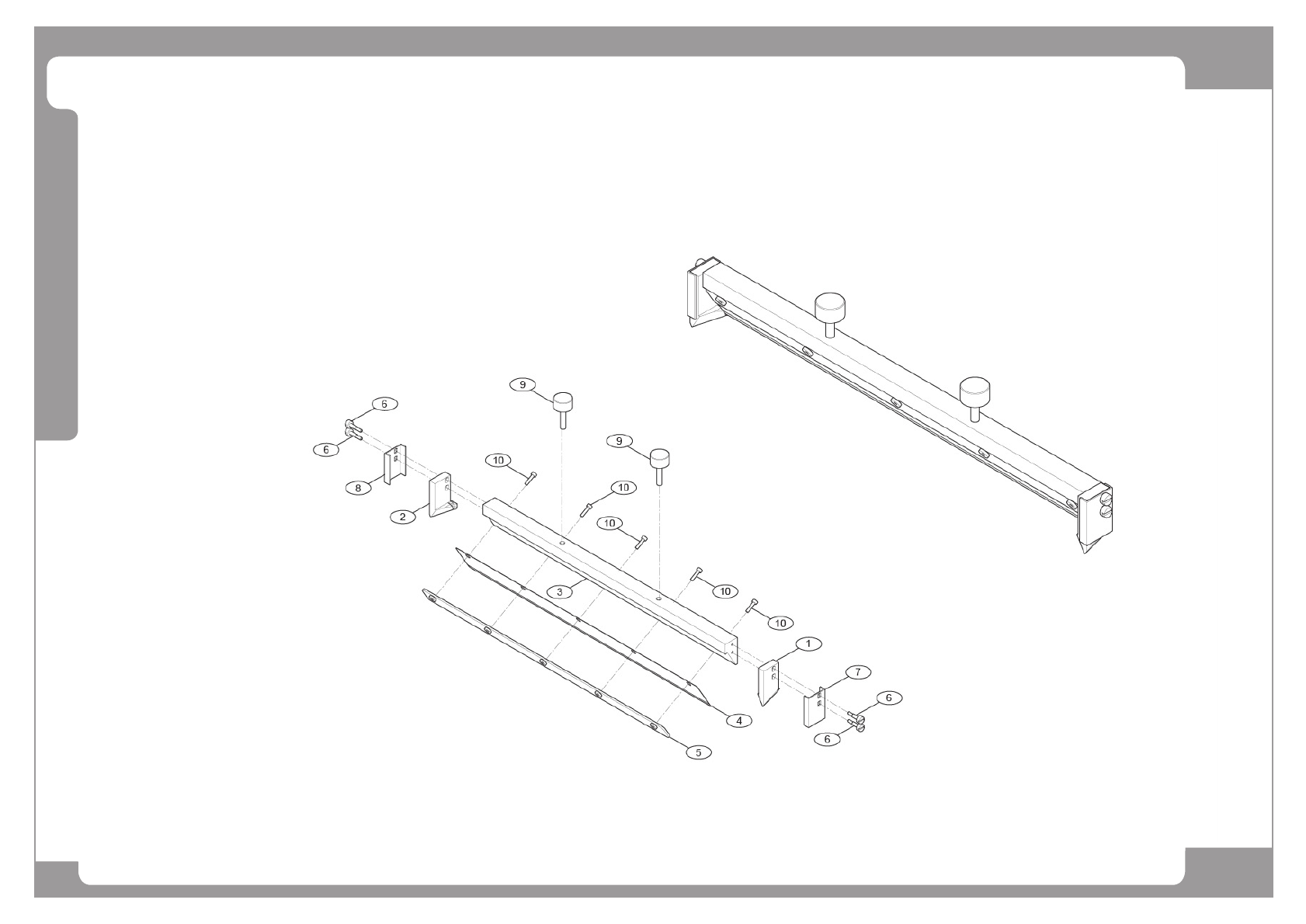

Squeegee Holder 250
Page
SAMSUNG TECHWIN
187
SP1

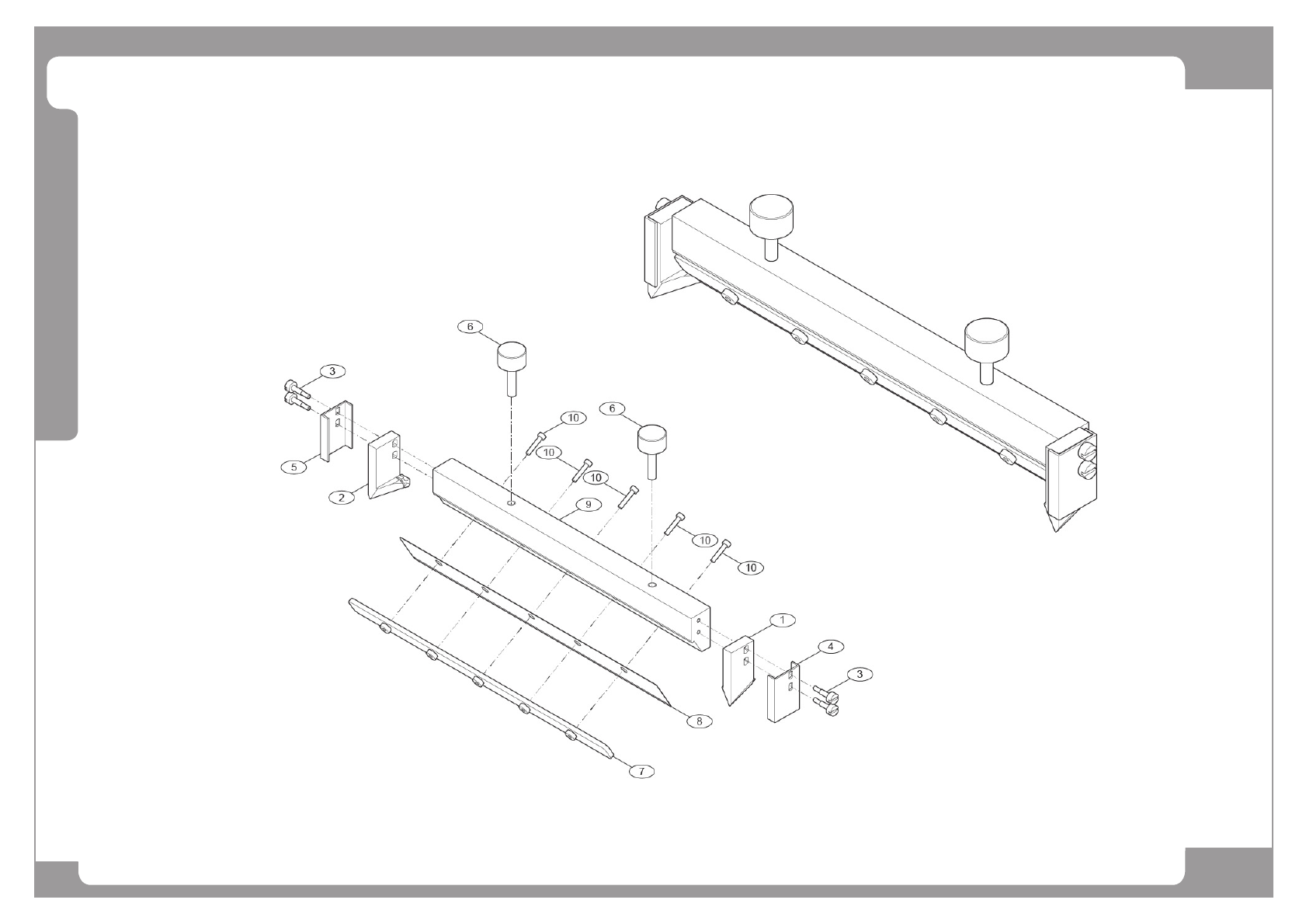

Squeegee Holder 250
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A1 AM03-003658A ASSY, ETC, IMSSP1_BLADE 250 1 AM03-000756A
1 J72651366A SOLDER_FENCE_R J72651366A 1
2 J72651365A SOLDER_FENCE_L J72651365A 1
3 J70653914A SOLDER_FENCE_SCREW J70653914A 4
4 J70653913A SOLDER_FENSE_R_BKT J70653913A 1
5 J70653912A SOLDER_FENSE_L_BKT J70653912A 1
6 J70651378E SQH_HOLDER_BOLT 2
7 FC30-000124A PLATESP1_BLADE_FIX_230;ME1:Steel 1
8 FC30-000123A PLATESP1_METAL_BLADE_250_DLC 1
9 FC30-000122A PLATESP1_BLADE_HOLDER_250;ME1:Steel 1
10 M3*15 (BL/Zn) SOCKET HEAD CAP SCREW 5
Page
SAMSUNG TECHWIN
188
SP1
Squeegee Holder 350
