Page SAMSUNG TECHWIN 69 SP1 Conveyor Entry Shuttle (1/2) NO. P ART NO. P ART NAME Q'TY Old No. Stoc k Apply Reference
Page
SAMSUNG TECHWIN
68
SP1
Conveyor Entry Shuttle (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
23 M4(BL/ZN) SPRING WASHER 4
24 M4(BL/ZN) FLAT WASHER 4
25 M3*3 (BL/ZN) SOCKET SET SCREW 6
26 M3*6 (BL/ZN) SOCKET HEAD CAP SCREW 66
27 M3(BL/ZN) FLAT WASHER 4
28 M5*12 (BL/ZN) SOCKET HEAD CAP SCREW 14
29 M4*18 (BL/ZN) SOCKET HEAD CAP SCREW 30
30 M4*8 SOCKET HEAD CAP SCREW 1
31 FC18-903151 SPACERSMKB105MISUMI SMKB105 1
32 M5*15 SOCKET HEAD CAP SCREW 1
33 M4*10 SOCKET HEAD CAP SCREW 1
34 M4*20 SOCKET HEAD CAP SCREW 1
35 1
Page
SAMSUNG TECHWIN
69
SP1

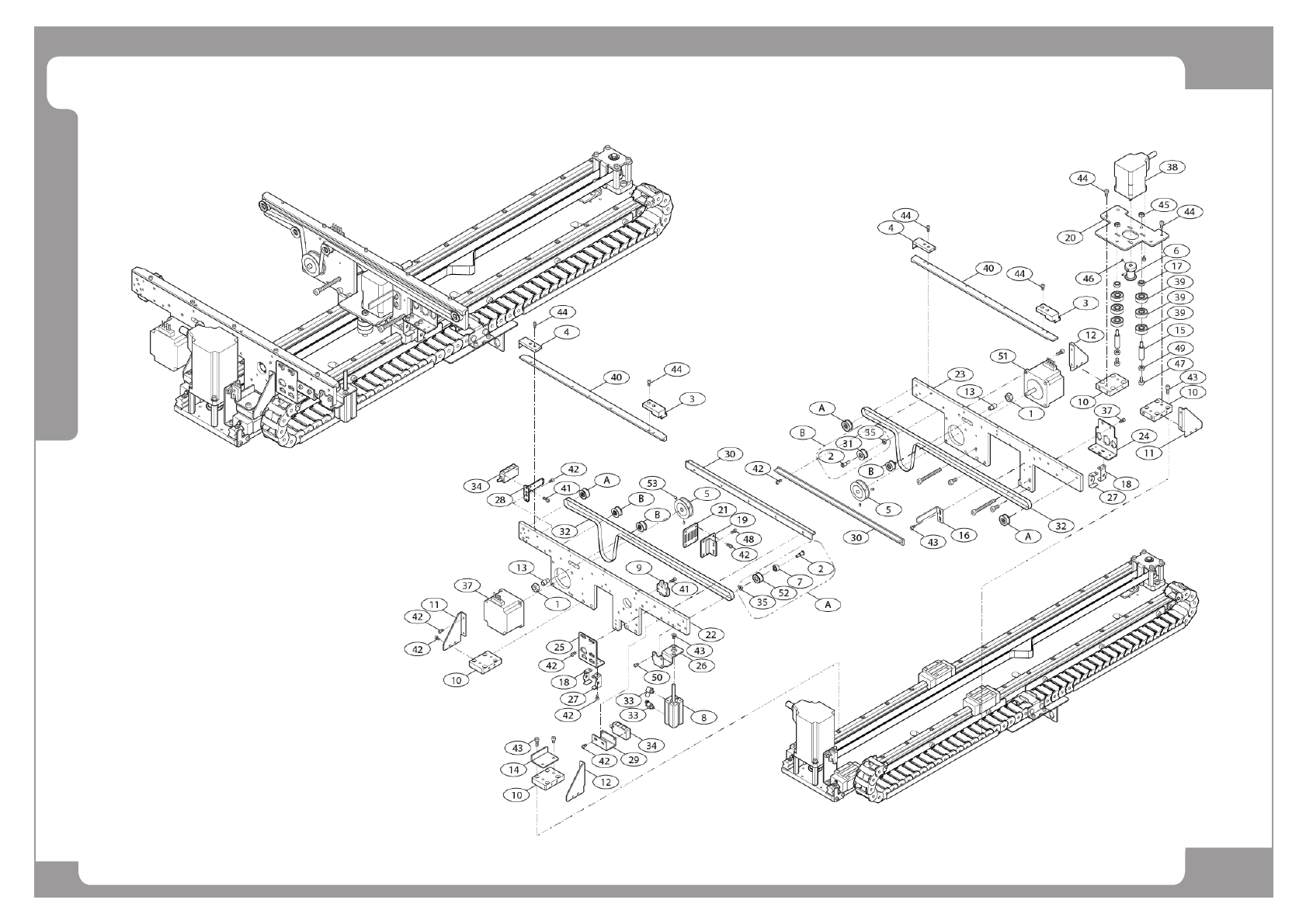

Conveyor Entry Shuttle (1/2)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
70
SP1
Conveyor Entry Shuttle (2/2)
