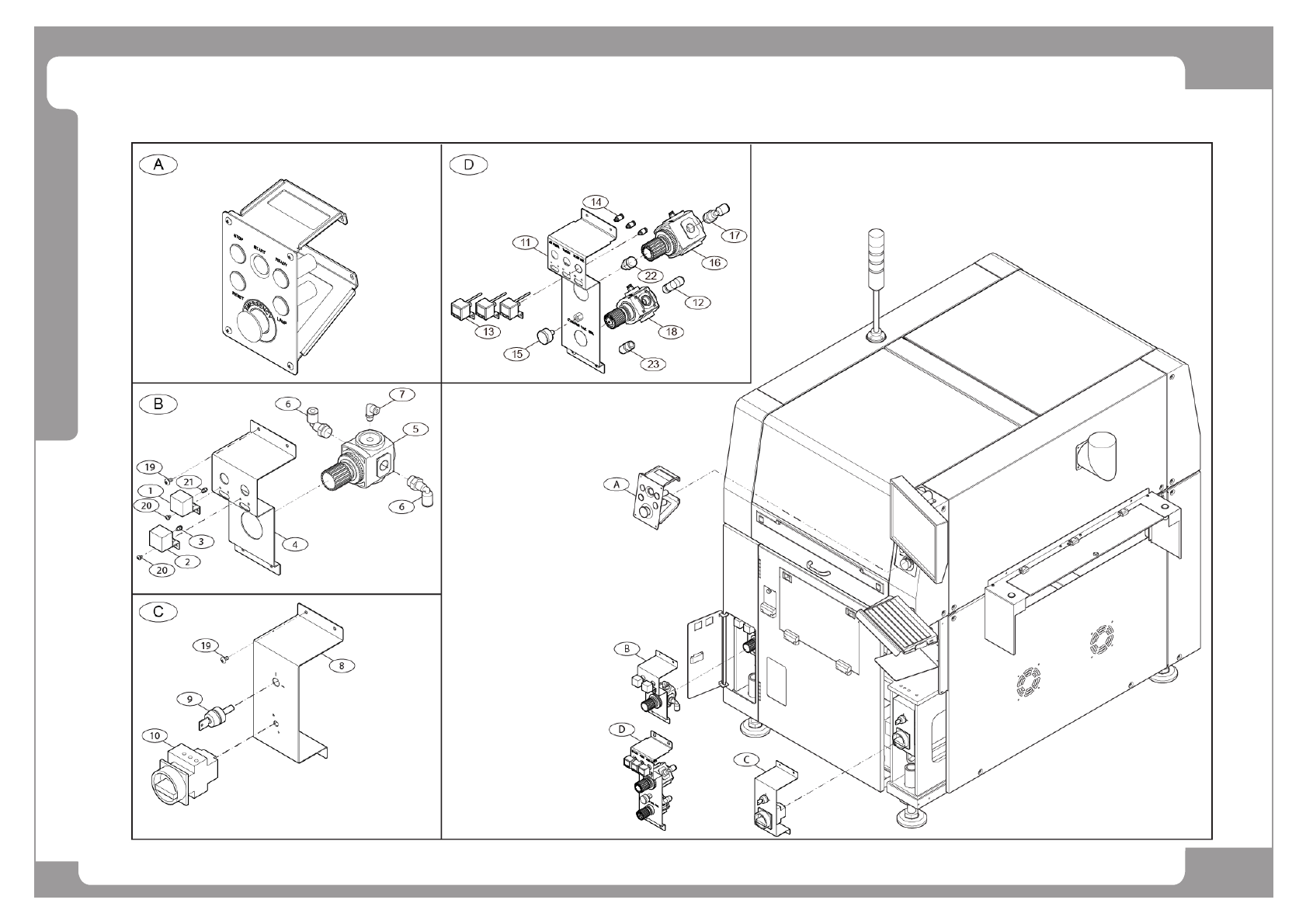

Function Panal Ass’y (Front)
Page
SAMSUNG TECHWIN
163
SP1
Function Panal Ass’y (Front)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A AM03-005771C CABLE ASSYSP1_FRONT_OP_PANEL_C 1
B J90651770A SP1_AIR_PANNEL_ASSY J90651770A 1
1 TE07-900092 PRESSURE_SENSOR PSA1(RC1/8) 1
AM03-006842A CABLE ASSYAIR_PRESSURE_DOWN_CABLE_ASSY 1 ONLY FOR SP1S
2 TE07-900092 PRESSURE_SENSOR PSA1(RC1/8) 1
AM03-008628A CABLE ASSYVACUMM_SENSOR_CABLE_ASSY 1 AM03-006843A ONLY FOR SP1S
3 HP06-900201 FITTING SQH0601S 1
4 FC09-000499A BRACKETSP1_AIR_PANEL_BKT1 1 J70661371A
5 HP09-900127 REGULATORPR4 PR404 1
6 HP06-900200 FITTING SQL1204S(WHITE) 2
7 HP06-900188 AIR_FITTING SQL0601SW 1
C J90651766A SP1_FRONT_POWER_PANNEL_ASSY J90651766A 1
8 FC09-000482A BRACKETSP1_POWER_SWITCH_BKT1 1 J70661373B
9 J91672247A KEY_SWITCH_CABLE_ASSY S1_PW043 1
10 EP20-900105 LOAD SWITCH[PI25] 1
D AM03-012693A AIR_PANNEL_ASSY 1 ONLY FOR SP1D2
11 FC09-004081A BRACKETAIR_PANNEL_BKT 1 ONLY FOR SP1D2
12 PLM PLM 1 ONLY FOR SP1D2
13 PLM PLM 3 ONLY FOR SP1D2
14 HP06-900205 FITTING SQH04M5A 3 ONLY FOR SP1D2
15 HP09-000123 ACCESSORY,PNEUMATICSPRESSURE GAGE 1 ONLY FOR SP1D2
16 HP09-900127 REGULATORPR4 PR404 1 ONLY FOR SP1D2
17 HP06-900200 FITTING SQL1204S(WHITE) 2 ONLY FOR SP1D2
18 HP09-000072 REGULATOR;1.5M Pa,0.05 ~ 1.0MPa,3/8" 1 ONLY FOR SP1D2
19 M5*10 (SUS) TRUSS SCREW 8
20 M4*8 (NATURE COLOR) SEMUS NABE SCREW 4
21 HP06-900198 FITTING SQL0401S 2
