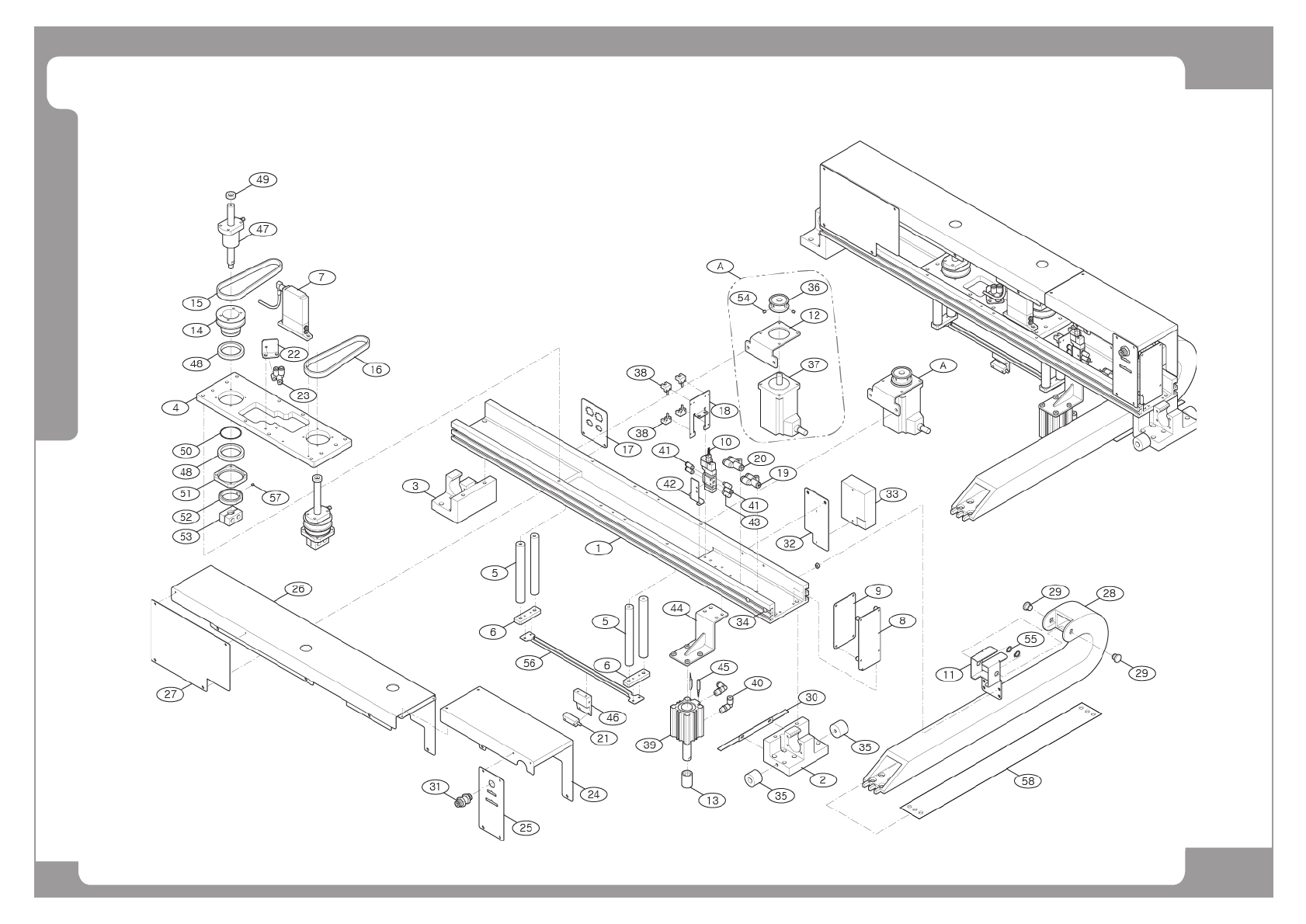

Squeegee Body Ass’y
Page
SAMSUNG TECHWIN
169
SP1
Squeegee Body Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
A1 J90651819A SP1_SQUEEGEE_BODY_ASSY J90651819A 1
1 FC30-001358A PLATESP1_FRAME_TOP_SQG 1 J71651748A
2 FC07-000276A SQG_LM_BLOCK_R 1 J71651846A
3 J71651851A SQG_LM_BLOCK_L 1
4 J70653241A SUPPORT_TOP_SQG J70653241A 1
5 J70653238A GUIDE_SHAFT_HEAD J70653238A 4
6 J70653237A FRAME_BOTTOM_SQG J70653237A 2
7 HP09-900124 REGULATOR_ELECTRO_PRESSURE ITV00302BL 1
8 J70653262A SQG_PCB_BRACKET J70653262A 1
9 J91741241A S1_SQCB_BOARD_ASSY J91741241A 1
10 HP14-900069 SOL_VALVE DV11205HM5 1
11 J70653256A BRACKET_CABLEVEYOR J70653256A 1
12 J70653257A BRACKET_MOTOR_SQG 2
13 J70653239A HOOK_CYL_SHAFT J70653239A 1
14 J71651749A PULLEY_Z_SQG J71651749A 2
15 MC05-900127 TIMING_BELT 340S5M10 1
16 MC05-900126 TIMING_BELT 295S5M10 1
17 J70653259A CON_BRK_SQG J70653259A 1
18 J70653260A SENSOR_BRKT_SQG_Z J70653260A 1
19 HP06-900195 UNION_Y_FITTING SQU0600W 1
20 HP06-900192 FITTING SQU0406 1
21 EP19-900146 PHOTO_SENSOR PZV11 1
22 J70653624A REG_FITTING_BKT J70653624A 1
23 HP06-900189 FITTING KQ2LU0400 1
24 FC30-000294A PLATESQG_COV_RR 1 J70653628A
25 FC30-000295A PLATESQG_COV_FR 1 J70653626A
26 FC30-000296A SQG_COV_RL 1 J70653629A
Page
SAMSUNG TECHWIN
170
SP1
Squeegee Body Ass’y
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
27 FC30-000297A PLATESQG_COV_FL 1 J70653627A
28 EP03-900066 CABLEVEYOR 1
29 J70653625A CABLEVEYOR_SHAFT J70653625A 2
30 J70653261A SNS_DOG_SQG_Y J70653261A 1
31 HP06-900196 FITTING SQE0600W 1
32 J70653645A TEMPERATURE_SENSOR_BKT J70653645A 1
33 EP19-900054 TEMPERATURE_SENSOR THDRC 1
34 FC18-902646 BUTTON HEAD SOCKET SCREW M5*10 (NI/ZN) 13
35 J7352001A DOOR CUSHION[J7352001A] 2
36 J71651758A TIMING_PULLEY 19 S5M 100 2
37 EP08-900127 SERVO_MOTOR_PB PBM565DXC26 2
38 EP19-900119 MICRO PHOTO SENSOR[PML24] 4
39 HP03-900097 CYLINDER ADQ2B3230D 1
40 HP06-900198 FITTING SQL0401S 2
41 HP06-900193 FITTING SCH04M5A 3
42 J70691444A TPC_SOL_VALVE_BKT J70691444A 1
43 HP09-900173 SILENCE SN120M5 2
44 J70653258A BRK_HOOK_CYL J70653258A 1
45 EP19-000284 SENSORPD11S1 2 EP19-900061
46 J71651827A SENSOR_SUPPORT J71651827A 1
47 MC13-900191 BALL_SCREW GY1208DSHULR0138X0128CAY 2
48 MC03-900013 BEARING [6807ZZ] 4
49 J70653224A BUT_UP_STOPPER 2
50 J70653236A COLLAR_SHIM_SQG J70653236A 2
51 J70653235A BRG_COVER_SQG J70653235A 2
52 FC18-000702A NUT,BEARINGBEARING_NUT_SQG_Z;40,S45C 2
53 J70653630A BS_FIX_BRACKET_1 J70653630A 2
