Page SAMSUNG TECHWIN 136 SP1 Stage Work Width
Page
SAMSUNG TECHWIN
135
SP1
Stage Work Moving Frame SP1S
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
55 J70531711A CLAMP_CYL_BLOCK J70531711A 2
56 FC30-000415A PLATEEDGE_CLAMP_PLATE 1
57 FC30-000426A PLATEPIN_COVER 2
58 FC30-000425A PLATEPIN_C_COVER 2
59 FC30-000519A PLATEFLEXIBLE BEARING 2
60 FC30-002030A PLATEFIX_EDGE_CLAMP 1 J70531758A /J70531757A/ FC30-002031A STG413/ 403 DIFFERENCE
61 J70531700A EDGE_TOP_PLATE J70531700A 1
55 J70531711A CLAMP_CYL_BLOCK J70531711A 2
56 FC30-000415A PLATEEDGE_CLAMP_PLATE 1
57 FC30-000426A PLATEPIN_COVER 2
58 FC30-000425A PLATEPIN_C_COVER 2
59 FC30-000519A PLATEFLEXIBLE BEARING 2
60 FC30-002030A PLATEFIX_EDGE_CLAMP 1 J70531758A /J70531757A/ FC30-002031A STG413/ 403 DIFFERENCE
61 J70531700A EDGE_TOP_PLATE J70531700A 1
62 FC30-001279A PLATECYLINDER_STOP 2
Page
SAMSUNG TECHWIN
136
SP1
Stage Work Width
Page
SAMSUNG TECHWIN
137
SP1
Stage Work Width

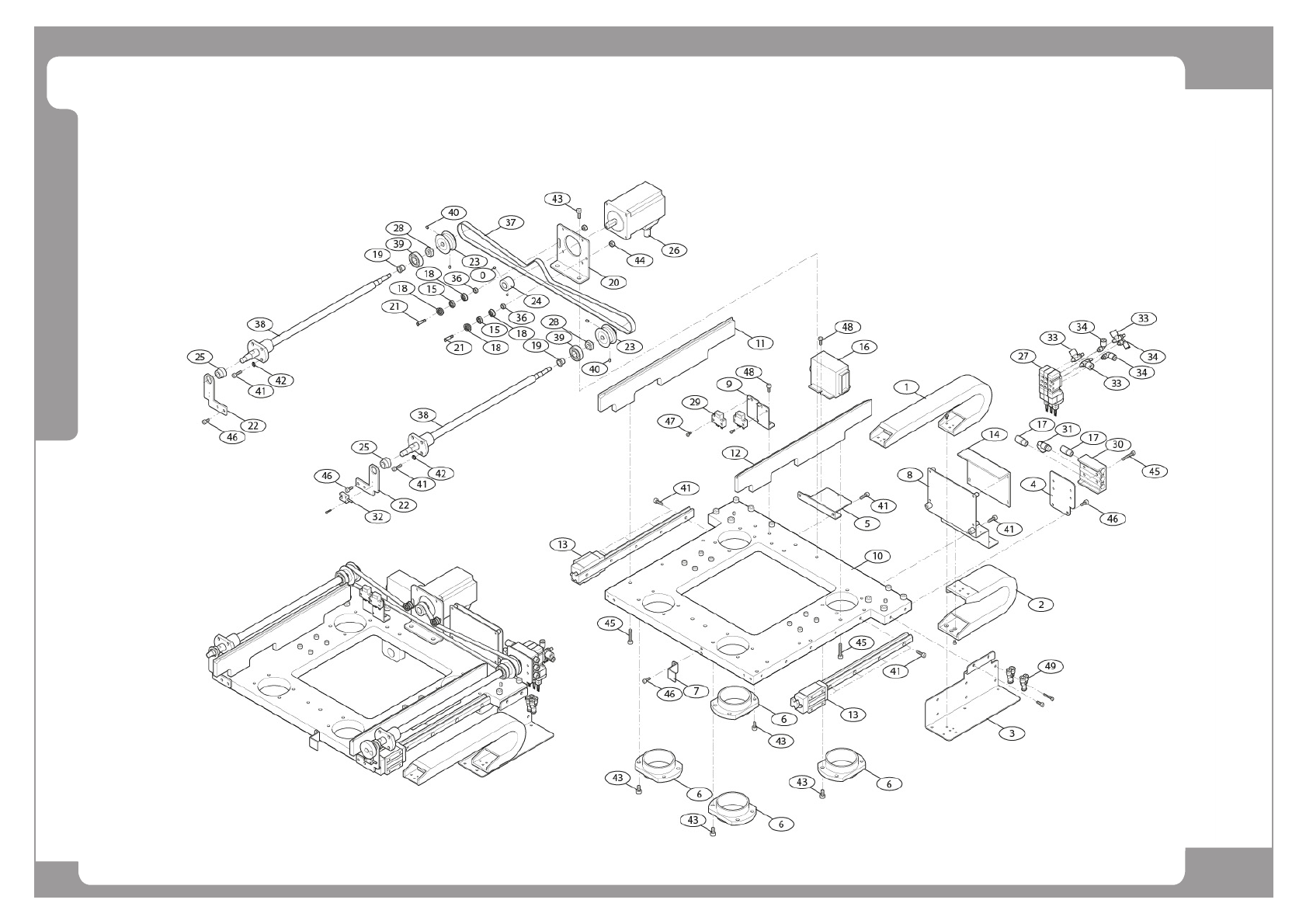

NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 EP03-900050 CABLEVEYOR HSP01803B28R16LK 1
2 EP03-900054 CABLE_VEYOR HSP01804B28R19LINK 1
3 J70531689B WORK_CABLEVEYOR_BKT 1 J70531689A
4 J70631004A ATC_SOL_PLATE J70631004A 1
5 J70631006A LEVEL_SENSOR_AMP_BKT J70631006A 1
6 J70631012A CLAMP_HOUSING_GUIDE J70631012A 4
7 J70631021A Z_SAFE_SENSOR_DOG J70631021A 1
8 J70653227A STG_CROSS_PCB_BRKT J70653227A 1
9 J70653521A ATC_CHUCK_SNS_BKT J70653521A 1
10 FC05-000217A BASESP1STAGE_Z_BASE 1 J71651739B
11 J72651300B ATC_GUIDE_L 1 J72651300A
12 J72651301B ATC_GUIDE_R 1 J72651301A
13 MC13-900070 LM_GUIDE_280L SBG15SL1K1280N 2
14 FC15-001208A COVERSP1STAGE_BOARD_COVER 1
15 MC03-900089 BALL_BEARING_604ZZ 604ZZ 2
16 EP19-900016 LVDT_SENSOR_AMP AMP100 1
17 HP09-900172 SILENCER SN10101 4
18 MC03-900088 BALL_BEARING_F604ZZ F604ZZ 4
19 J70531177A BUSHING J70531177A 2
20 J70531667A WIDTH_MOTOR_BKT J70531667A 1
21 J70531678A BELT_TENSION_SHAFT J70531678A 2
22 J70531684A BUSH_TAIL_HOLDER J70531684A 2
23 J71531254A WORK_WIDTH_PULLY J71531254A 4
24 J71531265A WORK_WIDTH_MOTOR_PULLEY J71531265A 1
25 J72531002A BUSH_TAIL J72531002A 2
26 EP08-900127 SERVO_MOTOR_PB PBM565DXC26 1
27 HP14-900069 SOL_VALVE DV11205HM5 3
