Page SAMSUNG TECHWIN 337 SP1 Vision Cross Board Block Diagram NO. P ART NO. P A RT NAME Q' TY Old No. Sto ck Apply Reference 1 J9167206 5B LIOSB_TO_VSCBIO_CAB LE_ASSY 1 J91672065A 2 J91672064A VS CB_IO_CABLE_ ASSY S…
Page
SAMSUNG TECHWIN
336
SP1
Vision Cross Board Block Diagram
Page
SAMSUNG TECHWIN
337
SP1
Vision Cross Board Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672065B LIOSB_TO_VSCBIO_CABLE_ASSY 1 J91672065A
2 J91672064A VSCB_IO_CABLE_ASSY S1_VS018 1
3 J91672066A VSCB_POWER_CABLE_ASSY S1_VS020 1
4 J91672067B SFBD_TO_VSCB_POWER_CABLE_ASSY 1 J91672067A
5 J91672052A VS_X_+LIMIT_CABLE_ASSY S1_VS006 1 ONLY FOR SP1/ SP1S
6 J91672053A VS_X_LIMIT_CABLE_ASSY S1_VS007 1
7 J91672054A VS_PCB_SENSOR_CABLE_ASSY S1_VS008 1
8 AM03-002967B VS_STP_SENSOR_CABLE_ASSY S1_VS009 2 J91672055A
9 J91672056A VS_SENSOR_MODULE_EXT_CABLE_ASSY S1_VS010 2
10 J91672051A VS_PCB_STP_SOL_CABLE_ASSY S1_VS005 1 ONLY FOR SP1/ SP1S
Page
SAMSUNG TECHWIN
338
SP1

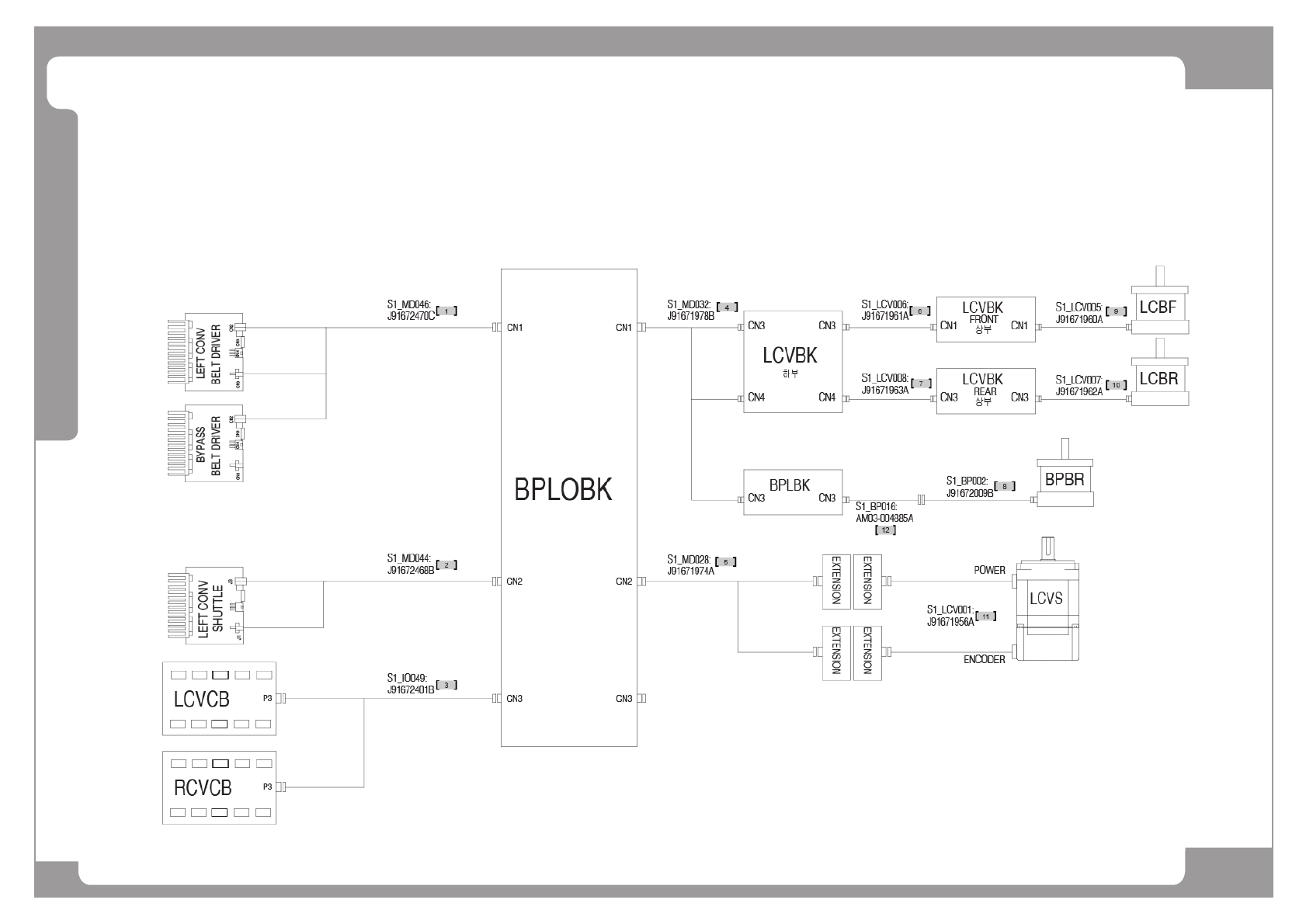

Bypass L/R Option Bracket Block Diagram (1/2) SP1 OPTION
