SP1_TRM(Ver6.8_CS14.25).pdf - 第322页
Page SAMSUNG TECHWIN 310 SP1 Safety Control Bo ard Block Diagram
Page
SAMSUNG TECHWIN
309
SP1
Right I/O Slave Board Block Diagram SP1D2
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672264A SACO_CN13_CABLE_ASSY S1_IO001 1
2 J91672150B R_IOSB_STSB1_IO_CABLE_ASS'Y 1
3 J91672153B R_IOSB_STSB2_IO_CABLE_ASS'Y 1
4 J91672246A SAFETY_CONTROL_CN21_CABLE_ASSY S1_PW055 1
5 J91672276B IOSB_CUNET_CABLE_ASSY 1
6 J91672000A RCVCB_OUT_CABLE_ASSY S1_RCV023 1
7 AM03-005771C SP1_FRONT_OP_PANEL_C 1
8 J91672265A RIOSB_CN9_CABLE_ASSY S1_IO002 1
9 AM03-002883A CABLE ASSYSQG_REGULATOR_CABLE_ASSY 1
10 AM03-006755A SQG_REGULATOR_EXT_CABLE_ASSY 1
11 J91672289A SQG_REGULATOR_CABLE_ASS'Y S1_SQ023 1
12 J91672278A PREVIOUS_INTERFACE_CABLE_ASSY S1_IO015 1
13 J91672476A FRONT_PRE_IF_CABLE_ASS'Y 1
14 J91672474A FRONT_NEXT_IF_CABLE_ASS'Y 1
15 J91672277A NEXT_INTERFACE_CABLE_ASSY S1_IO014 1
16 J91672475A REAR_NEXT_IF_CABLE_ASS'Y 1
17 J91672481A REAR_PRE_IF_CABLE_ASS'Y 1
18 J91672158B CLND_R_IOSB_COMMAND_CABLE_ASSY 1
19 J91672312B SQ_TEMP_HUM_EXT_CABLE_ASSY 1
20 J91672311A SQ_TEMP_HUM_CABLE_ASSY S1_SQ033 1
21 AM03-012894A SPV_Z_CLAMP_EXT 1
22 AM03-012895A SPV_Z_CLAMP_SOL 1
23 J91672432B FRONT_MASK_DOOR_SOL_CABLE_ASS'Y 1
24 J91672147A R_IOSB_SVSB_IO_CABLE_ASS'Y S1_SB003 1
25 J91671946B SQCB_OUT_EXT_CABLE_ASSY 1
26 AM03-006753A SQCB_OUT_CABLE_ASSY 1
Page
SAMSUNG TECHWIN
310
SP1

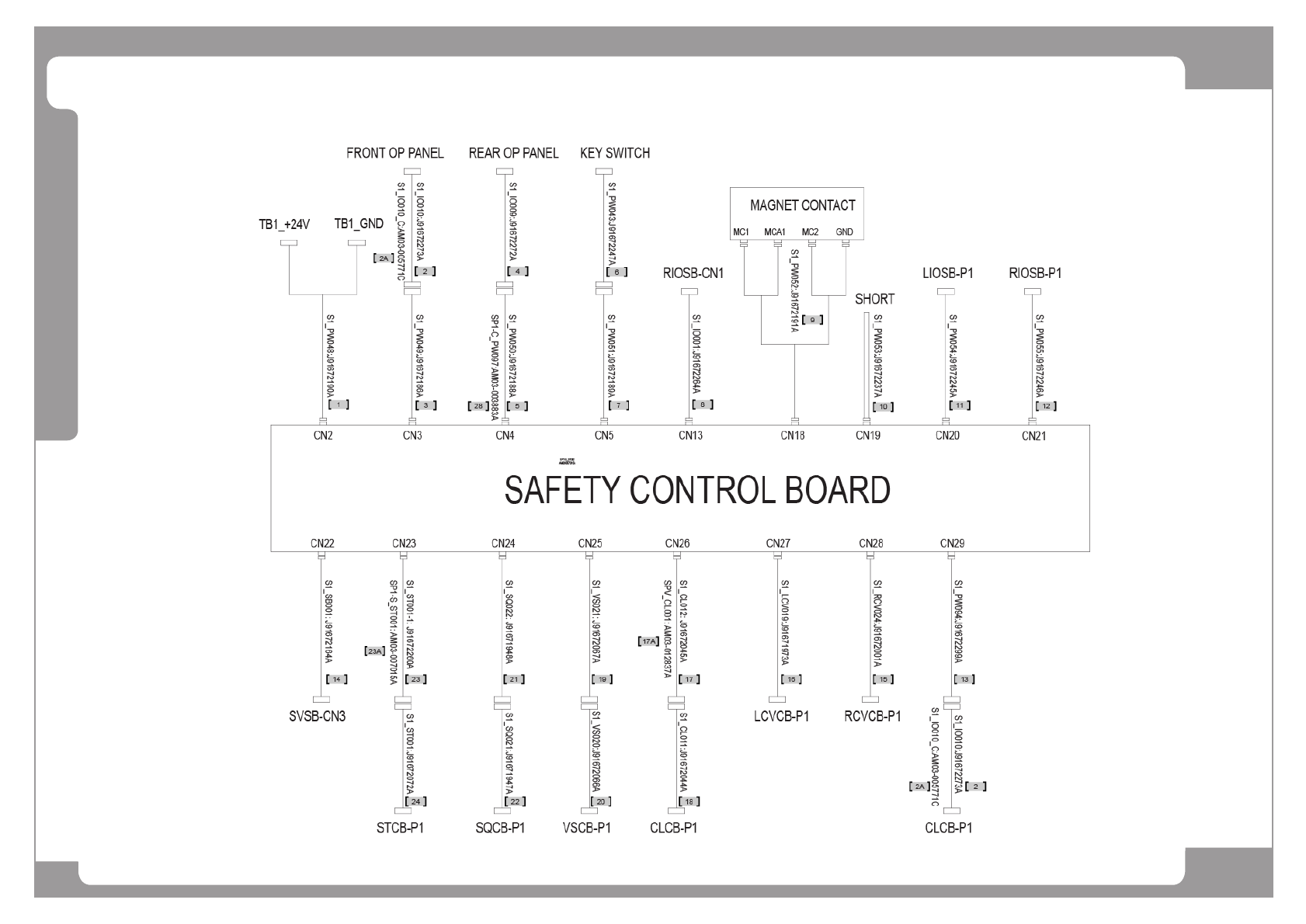

Safety Control Board Block Diagram
Page
SAMSUNG TECHWIN
311
SP1
Safety Control Board Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672190A SAFETY_CONTROL_CN2_CABLE_ASSY S1_PW048 1
2 AM03-005771A CABLE ASSYFRONT_OP_PANEL_S1_IO010 2 J91672273A/ J91672273B
2A AM03-005771C SP1_FRONT_OP_PANEL_C 2 ONLY FOR SP1D2
3 J91672186A SAFETY_CONTROL_CN3_CABLE_ASSY S1_PW049 1
4 AM03-005770A CABLE ASSYREAR_OP_PANEL_S1_IO009 1 J91672272A/ J91672272B
5 J91672188B SAFETY_CONTROL_CN4_CABLE_ASSY 1 J91672188A
6 J91672247A KEY_SWITCH_CABLE_ASSY S1_PW043 1
7 J91672189A SAFETY_CONTROL_CN5_CABLE_ASSY S1_PW051 1
8 J91672264A SACO_CN13_CABLE_ASSY S1_IO001 1
9 J91672191A SAFETY_CONTROL_CN18_CABLE_ASSY S1_PW052 1
10 J91672237A SACO CN19 CABLE ASSY S1_PW053 1
11 J91672245A SAFETY_CONTROL_CN20_CABLE_ASSY S1_PW054 1
12 J91672246A SAFETY_CONTROL_CN21_CABLE_ASSY S1_PW055 1
13 J91672299A SACO_CN29_CABLE_ASSY S1_PW094 1
14 J91672164A SVSB_SACO_PW_CABLE_ASSY S1_SB001 1
15 J91672001A RCVCB_DC_POWER_CABLE_ASSY S1_RCV024 1
16 J91671973B LCVCB_DC_POWER_CABLE_ASSY 1 J91671973A
17 J91672045B SACO_TO_CLCB_POWER_CABLE_ASSY 1 J91672045A
17A AM03-012837A CABLE_ASSYCLCB_PW 1 ONLY FOR SP1D2
18 J91672044A CLCB_POWER_CABLE_ASSY S1_CL011 1 ONLY FOR SP1/ SP1S
19 J91672067B SFBD_TO_VSCB_POWER_CABLE_ASSY 1 J91672067A
20 J91672066A VSCB_POWER_CABLE_ASSY S1_VS020 1
21 J91671948A SQCB_DC_POWER_EXT_CABLE_ASSY S1_SQ022 1
22 J91671947B SQCB_DC_POWER_CABLE_ASSY 1 J91671947A
23 J91672260A STCB_SACO_PW_EXT_CABLE ASS'Y S1_ST0011 1
23A AM03-007015A STCB_SACO_PW_CABLE_ASS'Y 1 ONLY FOR SP1D2
24 J91672072A STCB_SACO_PW_CABLE_ASSY S1_ST001 1 ONLY FOR SP1/ SP1S
