Page SAMSUNG TECHWIN 150 SP1 Cover Ass’y (2/5)
Page
SAMSUNG TECHWIN
149
SP1
Cover Ass’y (1/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70653459A LOWER_SIDE_COVER_R 1
2 J70653458A LOWER_SIDE_COVER_L 1
3 J70653454A LOWER_COVER_FR J70653454A 1
FC15-002551A COVERSP001PCV004ALOWER_COV_FR 1 ONLY FOR SP1D2
4 J70701006A LOWER_COVER_RR J70701006A 1
5 J70653453A LOWER_COVER_FL J70653453A 1
6 J70653455A LOWER_COVER_RL J70653455A 1
FC15-002554A COVERSP001PCV007ALOWER_COV_RL 1 ONLY FOR SP1D2
7 EP07-901528 FAN_FILTER 120MM(NMB) 2
8 J70653445A COVER_FRAME_BASE_R J70653445A 2
9 J70653444A COVER_FRAME_BASE_L J70653444A 2
10 J70653456A LOWER_OPEN_DOOR_F J70653456A 1
10A FC15-002528A COVERLOWER_DOOR_F 1 ONLY FOR SP1D2
11 FC29-900217 SLIDE_LATCH A34062512 3
12 J70653457A LOWER_OPEN_DOOR_R J70653457A 2
13 J70653758A COV_BASE_INNER_L J70653758A 2
14 FC29-900170 HANDLE_PULL FHD082T1.6 1
15 EP07-901508 COOLING FAN[4715MS22TB50] 4
16 HP04-000075 FILTER,AIRfan filter_ metal_120mm 2 HP04-900010
17 FC18-900833 FASTENER KC2172 2
18 FC12-900011 MAGNET KCM782 4
19 J70653754A BOTTOM_COVER_R 1 ONLY FOR SP1 /SP1S
19A J70653962A BOTTOM_COVER_R_TEMP J70653962A 1
20 J70653757A COV_BASE_INNER_R J70653757A 2
21 J70653752A CABLE_COVER_RR J70653752A 1
22 J70661450A BLOWER_CONNECT_BKT 1
23 FC18-901224 SPLIT_PIN DIA522L 3
Page
SAMSUNG TECHWIN
150
SP1

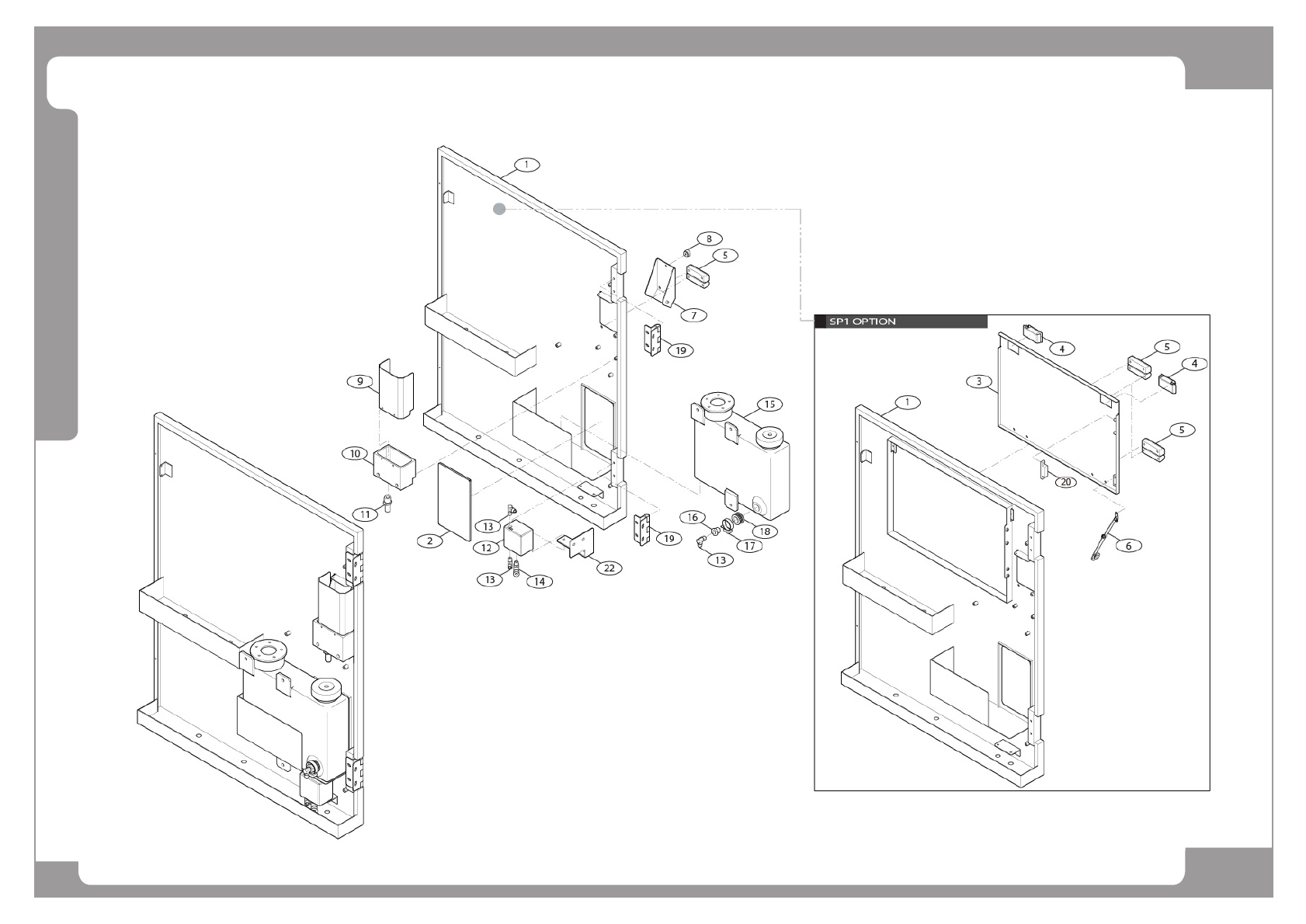

Cover Ass’y (2/5)
Page
SAMSUNG TECHWIN
151
SP1
Cover Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70653818A COVER_LFM_NORM 1
FC15-002552A COVERSP001PCV005ACOVER_LFM_NORM 1 ONLY FOR SP1D2
J70653451A COVER_LFM J70653451A 1 SP1 OPTION
2 J72651304A FRONT_ACRYL J72651304A 1
3 FC15-000459A COVERFRONT_ATC_COVER 1 J70653681A SP1 OPTION
4 FC29-900217 SLIDE_LATCH A34062512 2 SP1 OPTION
5 FC29-900189 HINGE KH652(SATELITE) 3 SP1 OPTION
6 FC29-900579 STAY B403R 1 SPI OPTION
7 J70653682A FRONT_IPA_COV 1
8 FC29-900169 HANDLE_BOLT KA188N1 1
9 J70653753A IPAN_INLET_PLATE 1
10 J72651320A IPA_INJECT_BLOCK J72651320A 1
11 HP06-900213 HOSE_NIPPLE PT1/2DIA12(STRAIGHT) 1
12 HP09-000070 COMPONENTS,ELECTRICCLEANER_PUMP_MOTOR 1 HP11-900110
13 HP06-900095 SMP_CLN_FITTING L4N6*4PT1/8 3
14 HP06-900188 AIR_FITTING SQL0601SW 1
15 J72651315A IPA_TANK J72651315A 1
16 HP06-900214 FITTINGIPA_TANK 3/8(MALE)1/8(FEMALE) 1
17 FC29-900006 HOSEBAND 1+1/4",W14 1
18 J72651138A SMPSUCTIONPORT J72651138A 1
19 J70521087A WINDOW_HINGE J70521087A 2
20 EP20-900145 MAGNETIC_SENSOR GLS1 1
21 FC09-004313A BRACKETIPA_PUMP_BKT 1
