Page
SAMSUNG TECHWIN
354
SP1

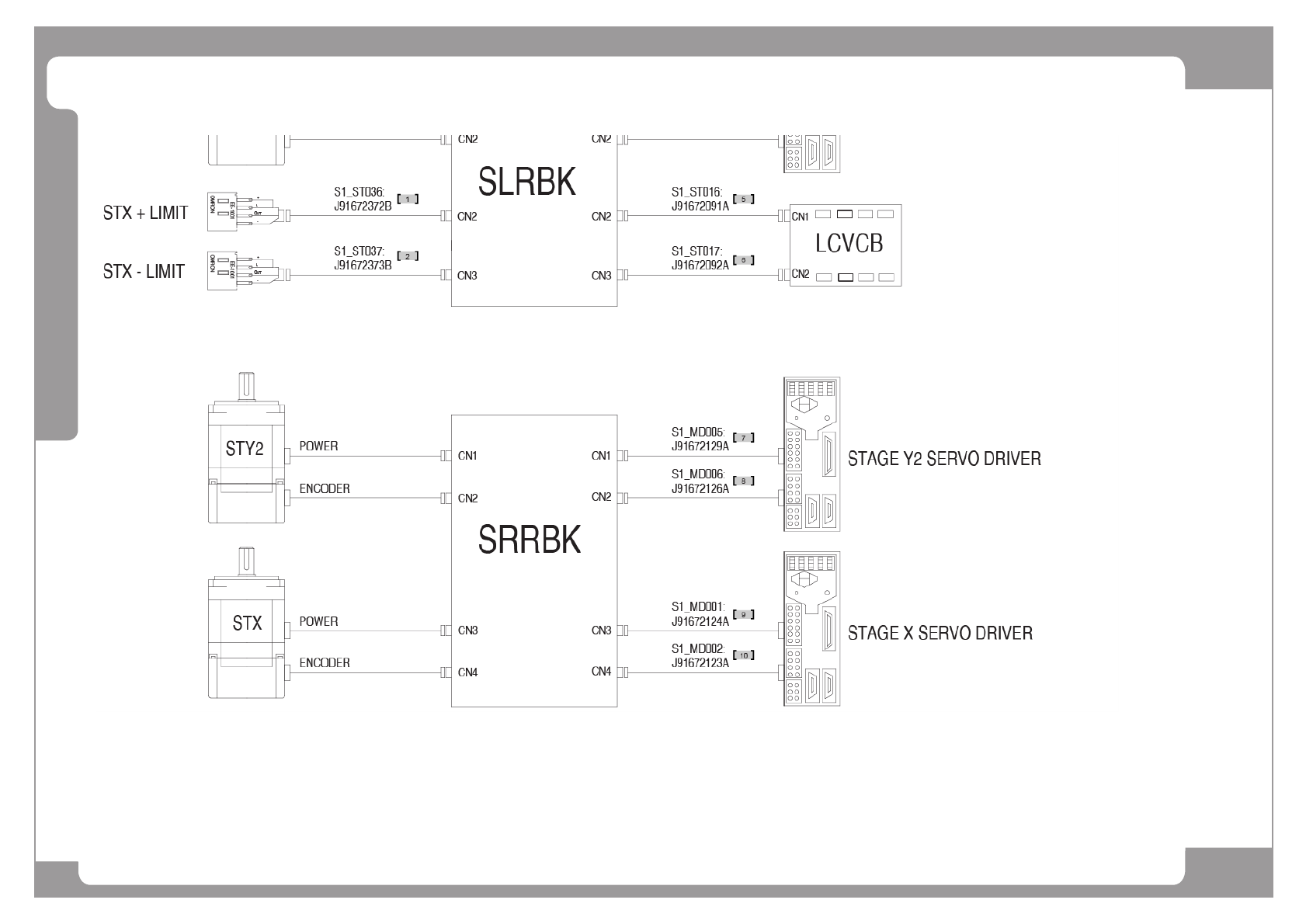

Stage L/R Rear Bracket Block Diagram
Page
SAMSUNG TECHWIN
355
SP1
Stage L/R Rear Bracket Block Diagram
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91672372B ST_X+LIMIT_EXT_CABLE_ASS'Y 1 J91672372A
2 J91672373B ST_XLIMIT_EXT_CABLE_ASS'Y 1 J91672373A
3 J91672128A ST_Y1_PW_CABLE_ASS'Y S1_MD003 1
4 J91672125A ST_Y1_ENC_CABLE_ASS'Y S1_MD004 1
5 J91672091A ST_X+LIMIT_CABLE_ASS'Y S1_ST016 1
6 J91672092A ST_XLIMIT_CABLE_ASS'Y S1_ST017 1
7 J91672129A ST_Y2_PW_CABLE_ASS'Y S1_MD005 1
8 J91672126A ST_Y2_ENC_CABLE_ASS'Y S1_MD006 1
9 J91672124A ST_X_PW_CABLE_ASS'Y S1_MD001 1
10 J91672123A ST_X_ENC_CABLE_ASS'Y S1_MD002 1
Page
SAMSUNG TECHWIN
356
SP1

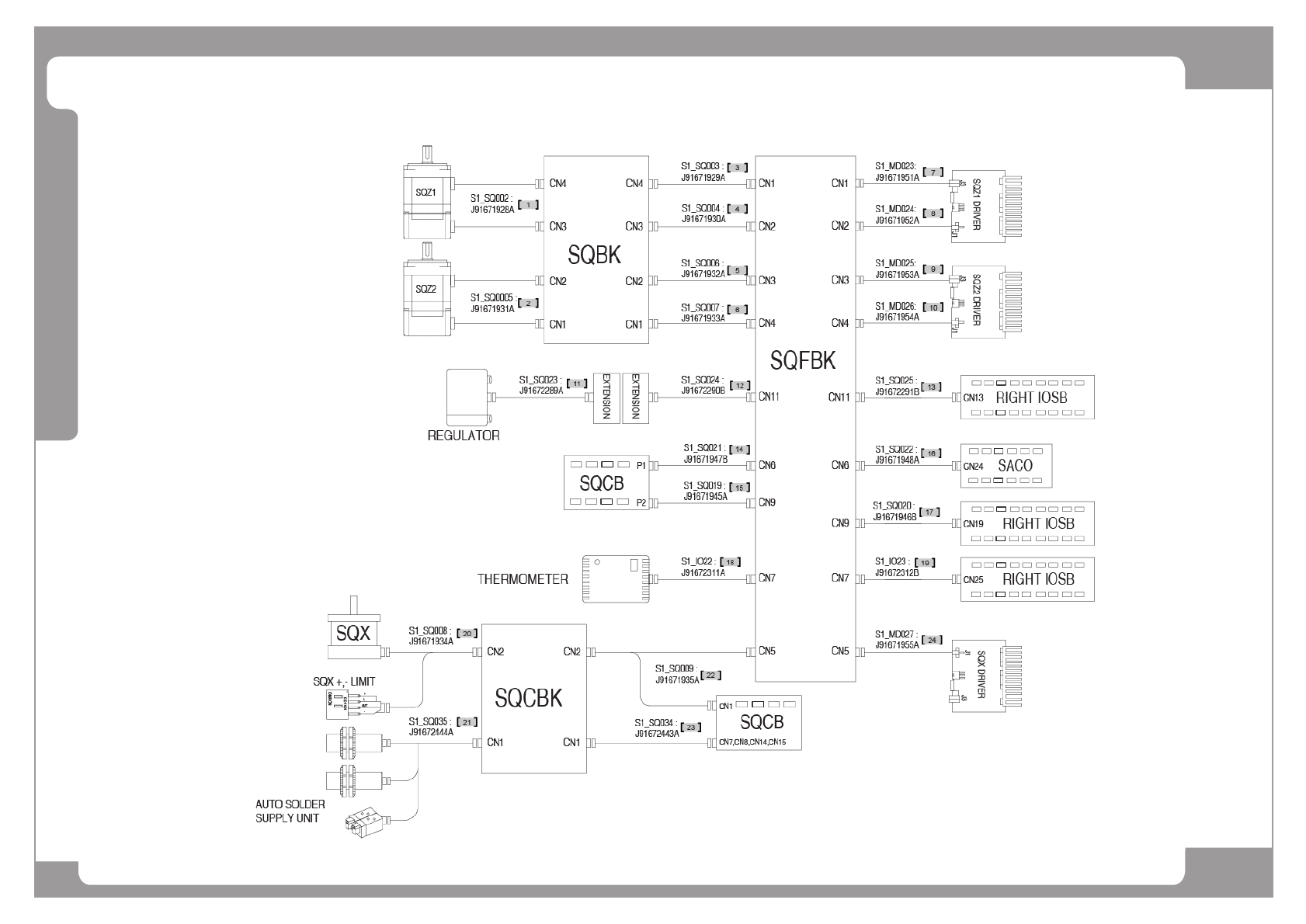

Squeegee Bracket Block Diagram
