Page
SAMSUNG TECHWIN
102
SP1

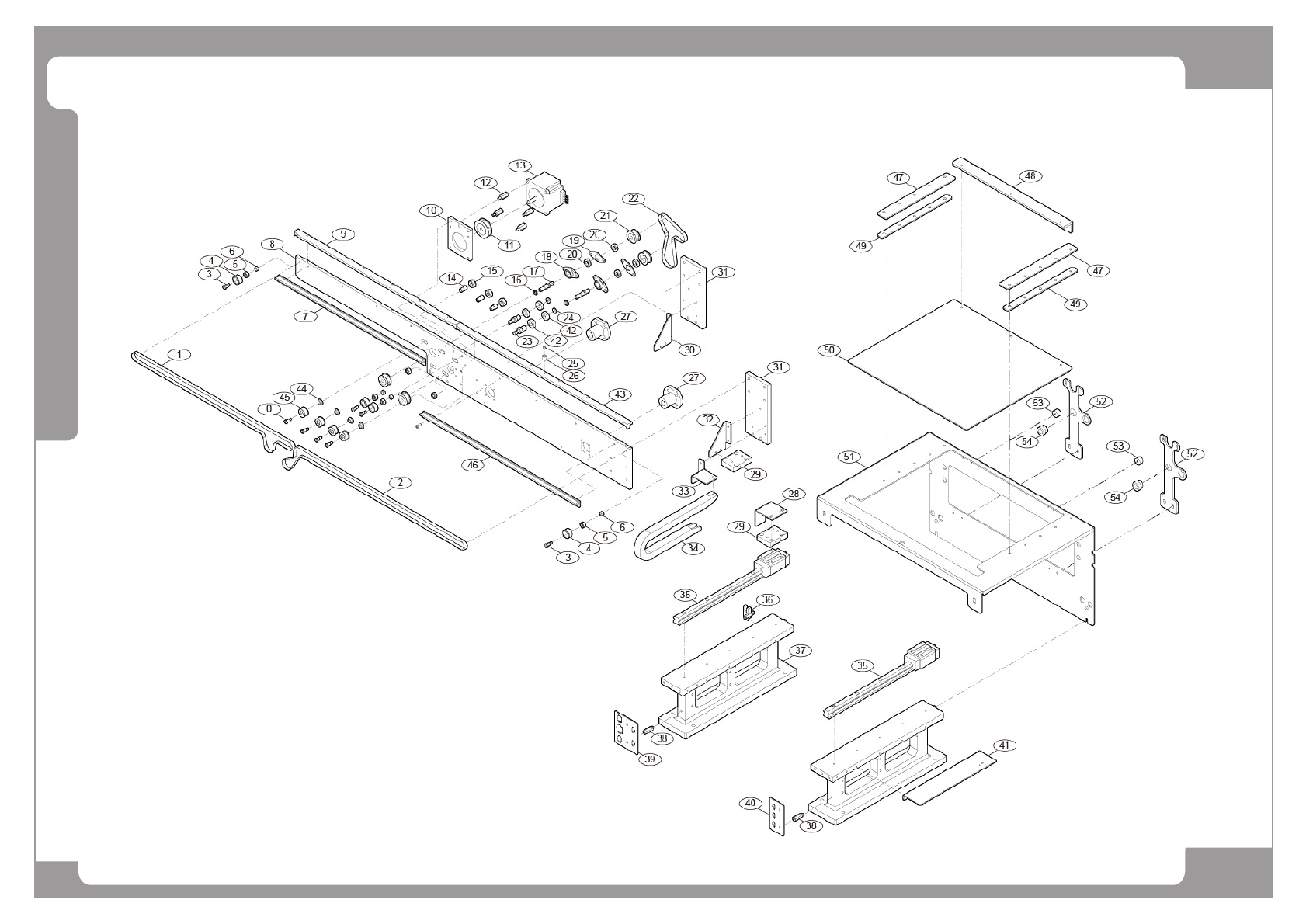

Conveyor Bypass (Extension) SP1 Option
Page
SAMSUNG TECHWIN
103
SP1
Conveyor Bypass (Extension) SP1 Option
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 MC05-000133 TIMING BELTTBGT 9002GT7;POWERGRIP,900 1
2 MC05-900145 TIMING_BELT 10282GT7 1
3 J70531836A IDLER_SHAFT J70531836A 8
4 J71531283A PCB_BELT_PULLEY J71531283A 4
5 MC03-900044 BALL BEARING[685ZZ] 4
6 J70653688A IDLER_SPACER_S1 J70653688A 4
7 FC30-000762A PLATEBELT_UNDER_PLATE 1
8 FC30-000767A PLATE-BYPASS_MOVING_FRAME 1
9 FC30-000761A PLATE-BYPASS_CONV_GUIDE_FIX1 1
10 FC30-000763A PLATEMOTOR_PLATE_1 1
11 J71531282A BELT_MOTOR_PULLEY J71531282A 1
12 J70531672A MOTOR_JIG_BAR J70531672A 4
13 EP08-900073 STEP_MOTOR 2S56Q01842SR2 1
14 J70531385A BELT_TENSION_SCREW J70531385A 3
15 FC18-901036 HEX NUT [M8 (BLACK)] 3
16 FC18-000441A SPACERBEARING_SPACER 2
17 MC19-000296A SHAFTPULLEY_SHAFT 2
18 FC29-001003A HOUSINGBEARING HOUSING 2
19 FC29-001004A HOUSINGBEARING HOUSING COVER 2
20 MC03-900034 BEARING_MR148ZZ 4
21 MC19-000295A PULLEYTIMING PULLEY 4
22 MC05-000114 TIMING_BELT_2GT_320 1
23 MC19-000297A SHAFTIDLER_SHAFT 2
24 FC30-000764A PLATEIDLER_PLATE 2
25 J71531191A FIDUCIAL_DISK J71531191A 1
26 J70531673A FIDUCIAL_DISK_BASE J70531673A 1
27 J70531665A BYPASS_LEAD_SCREW J70531665A 2
Page
SAMSUNG TECHWIN
104
SP1
Conveyor Bypass (Extension) SP1 Option
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
28 J70531683A BYPASS_SENSOR_DOG J70531683A 1
29 J70531380A LM_BLOCK_PLATE J70531380A 2
30 J70531382A SHUTTLE_FRAME_RIB_R J70531382A 1
31 J70531670A BYPASS_MOVING_SUPPORT J70531670A 2
32 J70531381A SHUTTLE_FRAME_RIB_L J70531381A 1
33 J70531681A CABLEVAYOR_BKT J70531681A 1
34 EP03-900051 CABLE_VEYOR HSP01301B18R24LINK 1
35 MC13-900070 LM_GUIDE_280L SBG15SL1K1280N 2
36 EP19-900109 PHOTO SENSOR 1
37 J71531250B BYPASS_MODULE_SUPPORT 2
38 FC29-900610 HEX SUPPORT 4
39 J70661488A BPS_CON_BKT_L J70661488A 1
40 J70661489A BPS_CON_BKT_R J70661489A 1
41 J70531688A BYPASS_CABLEVEYOR_BKT J70531688A 1
42 J70661430A BYPASS COVER FRM 1
43 EP10-901398 MAGNET_HXMN13_8 HXMN138 2
44 J70661417A BYPASS_ACRYL_BKT 1
45 J61191115B BP_COVER_RAIL 2
46 J72651308A BYPASS_COVER_ACRYL 1
47 MC03-900022 BEARING_688ZZ 4
48 J71531275A BYPASS_CONV_GUIDE_R J71531275A 1
49 J70653790A IDLER_SPACER_TENSTION J70653790A 4
50 J7253007A IDLER 2 4
51 J71531252A WORK_FLAT_BELT_UNDER_B J71531252A 1
