SP1_TRM(Ver6.8_CS14.25).pdf - 第36页
Page SAMSUNG TECHWIN 24 SP1 Cleaner Ass’y SP1S /SP1D2 (3/3)
Page
SAMSUNG TECHWIN
23
SP1
Cleaner Ass’y SP1S /SP1D2 (2/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
Page
SAMSUNG TECHWIN
24
SP1

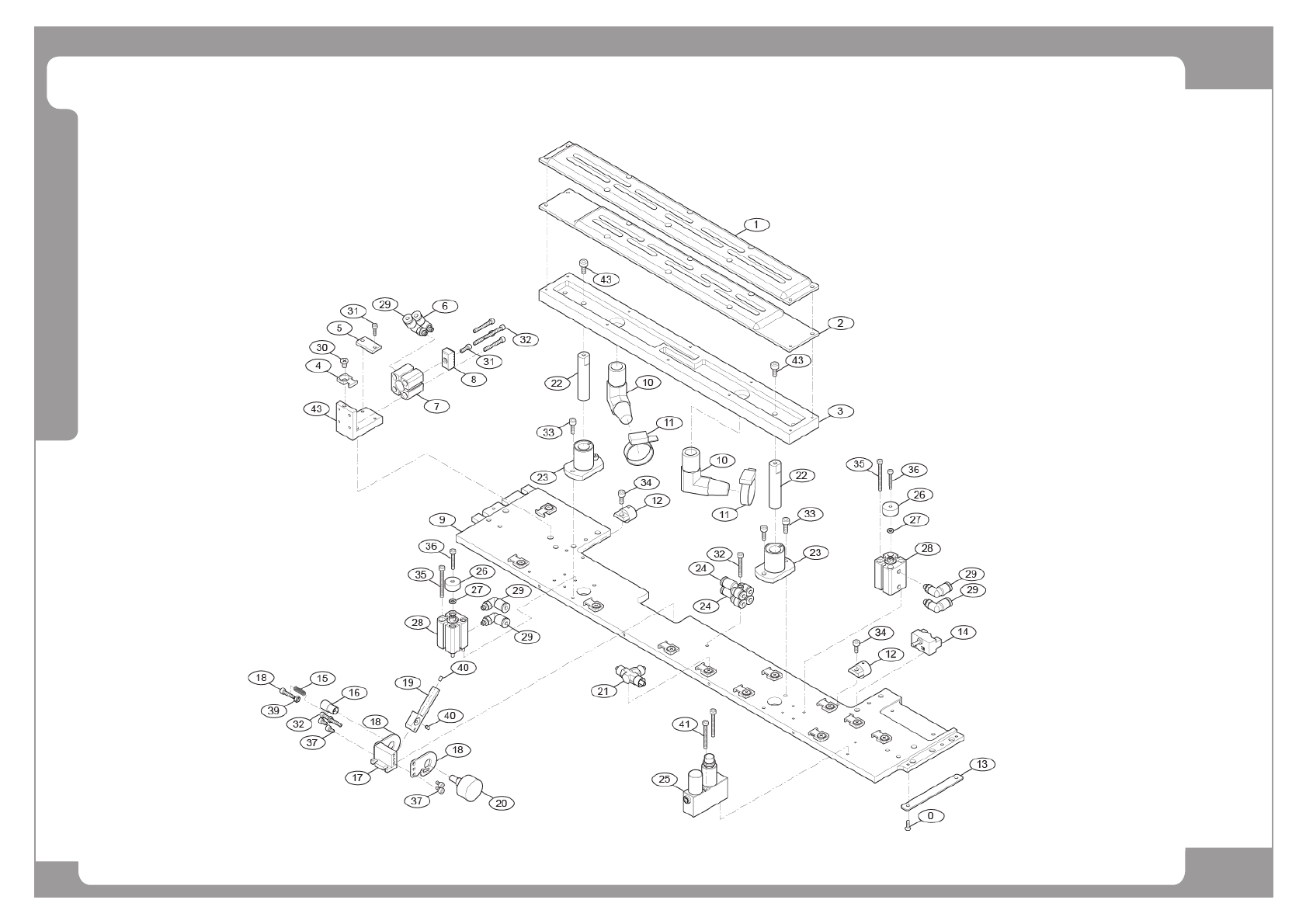

Cleaner Ass’y SP1S /SP1D2 (3/3)
Page
SAMSUNG TECHWIN
25
SP1
Cleaner Ass’y SP1S /SP1D2 (3/3)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 FC07-000288A BLOCKCL BLOCK 330 B 1
2 FC07-000289A CL BLOCK 250 B 1
3 FC05-000071B BASECL BLOCK BASE 1
4 FC18-903195 PROFILE MOUNT [DIA4.0] 13
5 FC28-000192A SLIDECL GEAR SLIDE 1
6 HP14-900106 THROTTLE_VALVE SP1201FM504W 1
7 HP03-900100 CYLINDER AQ2B125D 1
8 J70661349A CLN_TENSIONGEAR J70661349A 1
9 FC05-000203A BASECL_BODY_BASE 1
10 HP06-900186 NIPPLE_3/8_D11 PT3/8, DIA 12 HOSE 2
11 FC29-900005 HOSE_BAND 1",W8 2
12 MC19-000219A SHAFTBOTTOM_COV_MAG 2
13 FC30-000636A PLATESOLENOID_COV 1
14 EP19-900020 LIQ_LEVEL_SENSOR EESPX613 1
15 FC38-900058 TENSION_SPRING AWU415 1
16 FC29-000583A HOLDERCL WSNS HOLDER 1
17 FC05-000072B BASECL WSNS BODY 1
18 FC09-000687B BRACKETCL WSNS BKT 2
19 FC07-000264A BLOCKCL WSNS BAR 1
20 AM03-008066A CABLE ASSYPAPER_LEVEL_CHECK 1 EP10-901994
21 HP06-000097 FITTINGKFT0600;TShafe/306,NUT,6 1
22 MC19-000175A SHAFTCL GUIDE SHAFT 2
23 MC06-900005 BALL_BUSH_LMH12UU LMH12UU 2
24 HP06-900197 UNION_Y_FITTING SQU0400W 2
25 HP09-900111 REGULATOR [RVUM44] 1
26 MC02-000001B KNUCKLECL KNUCLE BLK 2
27 FC18-901392 ORING [P3] 2
