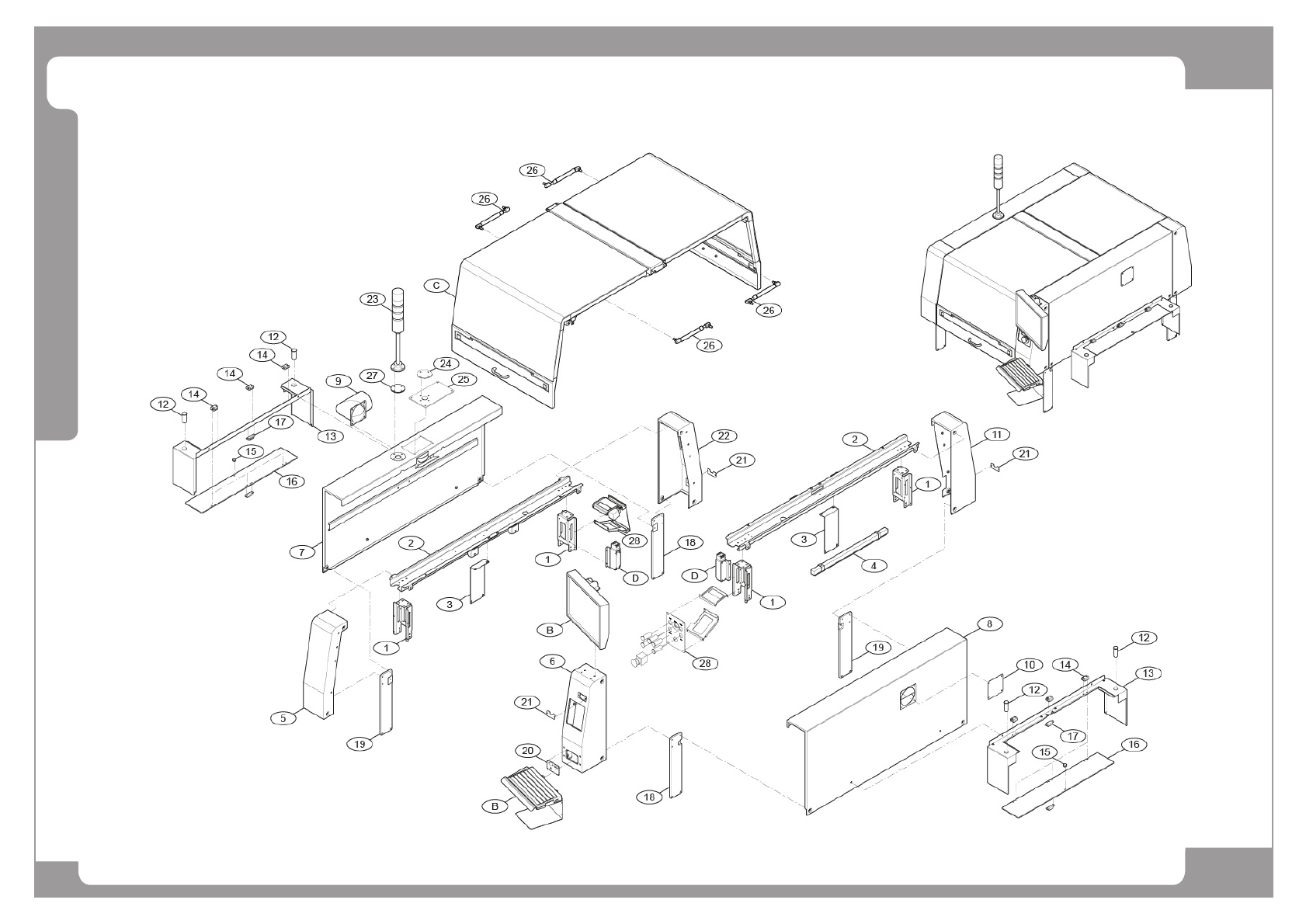

Page SAMSUNG TECHWIN 152 SP1 Cover Ass’y (3/5)
Page
SAMSUNG TECHWIN
151
SP1
Cover Ass’y (2/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70653818A COVER_LFM_NORM 1
FC15-002552A COVERSP001PCV005ACOVER_LFM_NORM 1 ONLY FOR SP1D2
J70653451A COVER_LFM J70653451A 1 SP1 OPTION
2 J72651304A FRONT_ACRYL J72651304A 1
3 FC15-000459A COVERFRONT_ATC_COVER 1 J70653681A SP1 OPTION
4 FC29-900217 SLIDE_LATCH A34062512 2 SP1 OPTION
5 FC29-900189 HINGE KH652(SATELITE) 3 SP1 OPTION
6 FC29-900579 STAY B403R 1 SPI OPTION
7 J70653682A FRONT_IPA_COV 1
8 FC29-900169 HANDLE_BOLT KA188N1 1
9 J70653753A IPAN_INLET_PLATE 1
10 J72651320A IPA_INJECT_BLOCK J72651320A 1
11 HP06-900213 HOSE_NIPPLE PT1/2DIA12(STRAIGHT) 1
12 HP09-000070 COMPONENTS,ELECTRICCLEANER_PUMP_MOTOR 1 HP11-900110
13 HP06-900095 SMP_CLN_FITTING L4N6*4PT1/8 3
14 HP06-900188 AIR_FITTING SQL0601SW 1
15 J72651315A IPA_TANK J72651315A 1
16 HP06-900214 FITTINGIPA_TANK 3/8(MALE)1/8(FEMALE) 1
17 FC29-900006 HOSEBAND 1+1/4",W14 1
18 J72651138A SMPSUCTIONPORT J72651138A 1
19 J70521087A WINDOW_HINGE J70521087A 2
20 EP20-900145 MAGNETIC_SENSOR GLS1 1
21 FC09-004313A BRACKETIPA_PUMP_BKT 1
22
Page
SAMSUNG TECHWIN
152
SP1
Cover Ass’y (3/5)
Page
SAMSUNG TECHWIN
153
SP1
Cover Ass’y (3/5)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J70653448A COVER_FRAME_POST J70653448A 4
2 J70653450A COVER_FRAME_TOP J70653450A 2
3 J70653449A COVER_FRAME_SIDE J70653449A 2
4 EP13-900030 LAMP_SMP300 DL18WC 1
5 J70653461A UPPER_COVER_FL J70653461A 1
6 J70653462A UPPER_COVER_FR J70653462A 1
FC15-002527A COVERSP001PCV001AUPPER_COV_FR 1 ONLY FOR SP1D2
7 FC15-000909A COVERSP1_UPPPER_SIDE_COVER_L 1 J70653464A
8 J70653465A UPPER_SIDE_COVER_R 1
FC15-001322B COVERSP1_UPPPER_SIDE_COVER_R_1 1 ONLY FOR SP1D2
9 J70653581A AIRCON_DUCT_BRANCH J70653581A 1
10 J70653582A AIRCON_DUCT_COVER J70653582A 1
11 J70661449A UPPER_COVER_RR J70661449A 1
12 EP07-900098 PILOT_LED_LAMP RRJN+CL+L5.5K24UG 4
13 FC15-000570A CONV_COVER 2 J70521417A
14 FC29-900195 HINGE KH654(SATELITE) 4
15 FC29-900169 HANDLE_BOLT KA188N1 2
16 FC15-000571A COVERCONV_COVER_ACRYL 2 J72651319A
17 EP20-900145 MAGNETIC_SENSOR GLS1 2
18 J70653445A COVER_FRAME_BASE_R J70653445A 2
19 J70653444A COVER_FRAME_BASE_L J70653444A 2
20 FC09-000891A BRACKETLOWER_OP_PANELSM431 1 J70521213A
21 J70521263A MONITOR_CABLE_COVER J70521263A 1
22 J70653463A UPPER_COVER_RL J70653463A 1
23 J747131020A TOWER_LAMP 1
24 FC15-000912A COVERTOWER_LAMP_HOLE_COVER 4
25 FC15-000911A COVERSP1_TOWER_LAMP_PLATE 2
